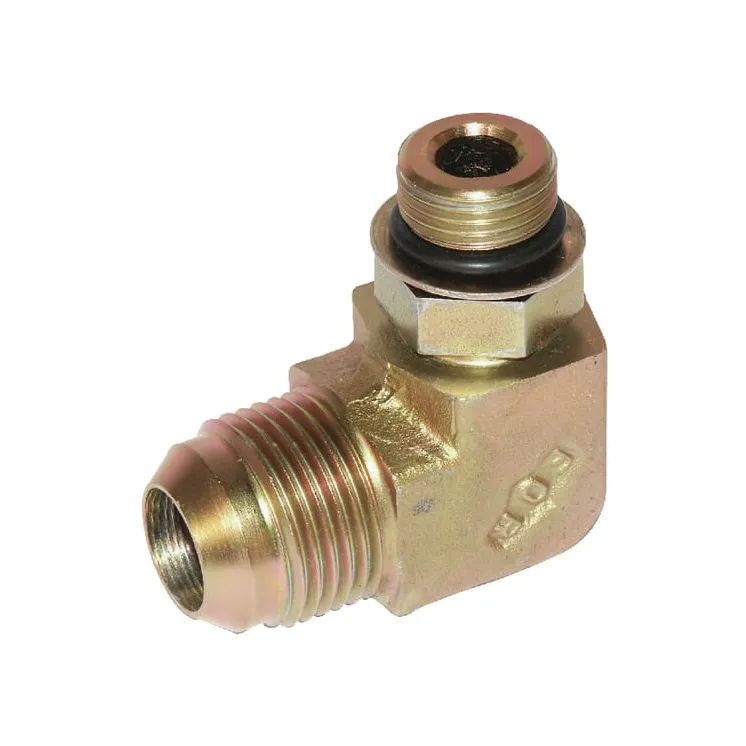

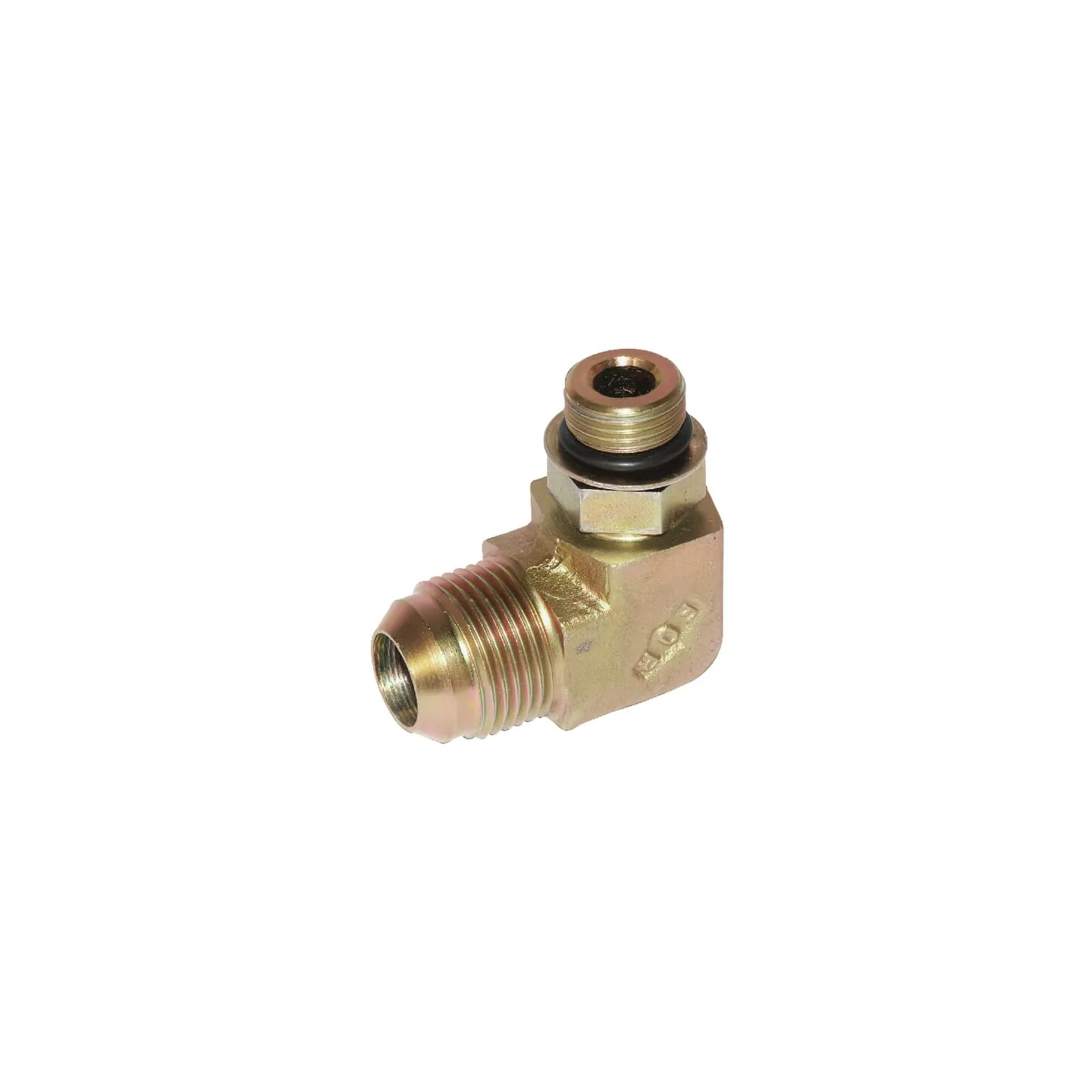

Elbow 7/8 JIC x 3/4 UNF KIU1412

Name: Elbow 7/8 JIC x 3/4 UNF KIU1412
Brand: Alfagomma
SKU: KIU1412
Price: 14.21 EUR
Availability: InStock

Payment options

€14.21

Tax included

4-5 Working days

Elbow 7/8 JIC x 3/4 UNF KIU1412 Alfagomma

IN WAREHOUSE

ID: 88751

Description

Part number	KIU1412
EAN
Unit	Each
Product details	UNF cone 37°
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	36.5 mm
Connection 2, thread diameter	3/4 Inch
Connection 2, thread type	UNF
Connection 2, threads per inch	16
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 center to end distance	39.5 mm
F1Connection no 1 thread diameter	7/8 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	16
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Material	Steel
Shape	Elbow - 2 connection sides
Surface treatment	Galvanised
Working pressure	280 BAR
