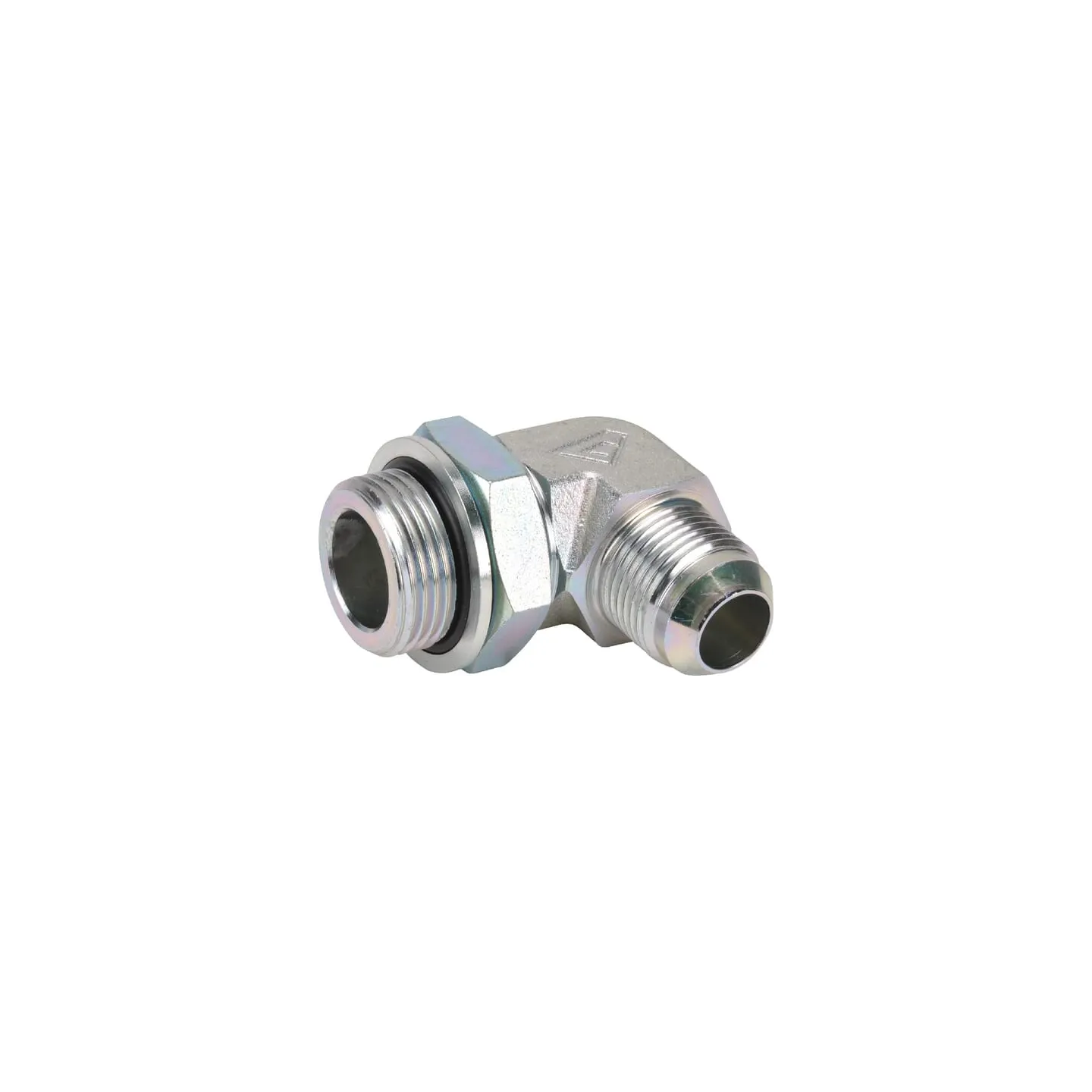

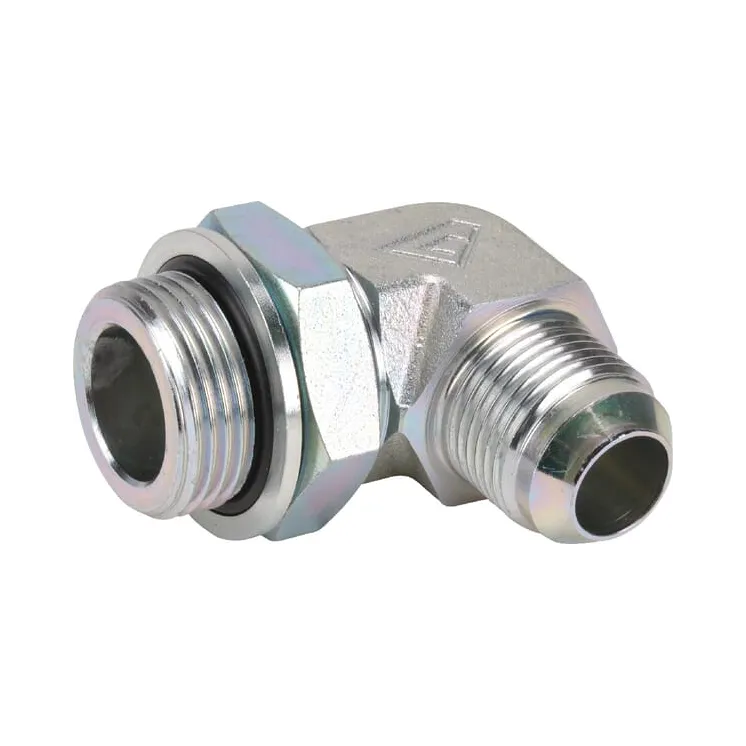

Elbow coupling 1-1/16JIC x3/4BSP KIB1712

Name: Elbow coupling 1-1/16JIC x3/4BSP KIB1712
Brand: Alfagomma
SKU: KIB1712
Price: 18.97 EUR
Availability: InStock

Payment options

€18.97

Tax included

4-5 Working days

Elbow coupling 1-1/16JIC x3/4BSP KIB1712 Alfagomma

IN WAREHOUSE

ID: 88768

Description

Part number	KIB1712
EAN
Unit	Each
Technical info	For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Angle	90 °
Cone angle	74 °
F2Connection 2, thread diameter	3/4 Inch
Connection 2, thread type	JIC
Connection 2, threads per inch	12
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 center to end distance	42 mm
F1Connection no 1 thread diameter	1-1/16 Inch
Connection no 1 thread type	BSP
Connection no 1 threads per inch	14
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
L1Connections distance	49.5 mm
Material	Steel
Max working pressure	190 BAR
Pipe diameter	18 mm
Pipe diameter	3/4 Inch
Shape	Elbow - 2 connection sides
Surface treatment	Galvanised
