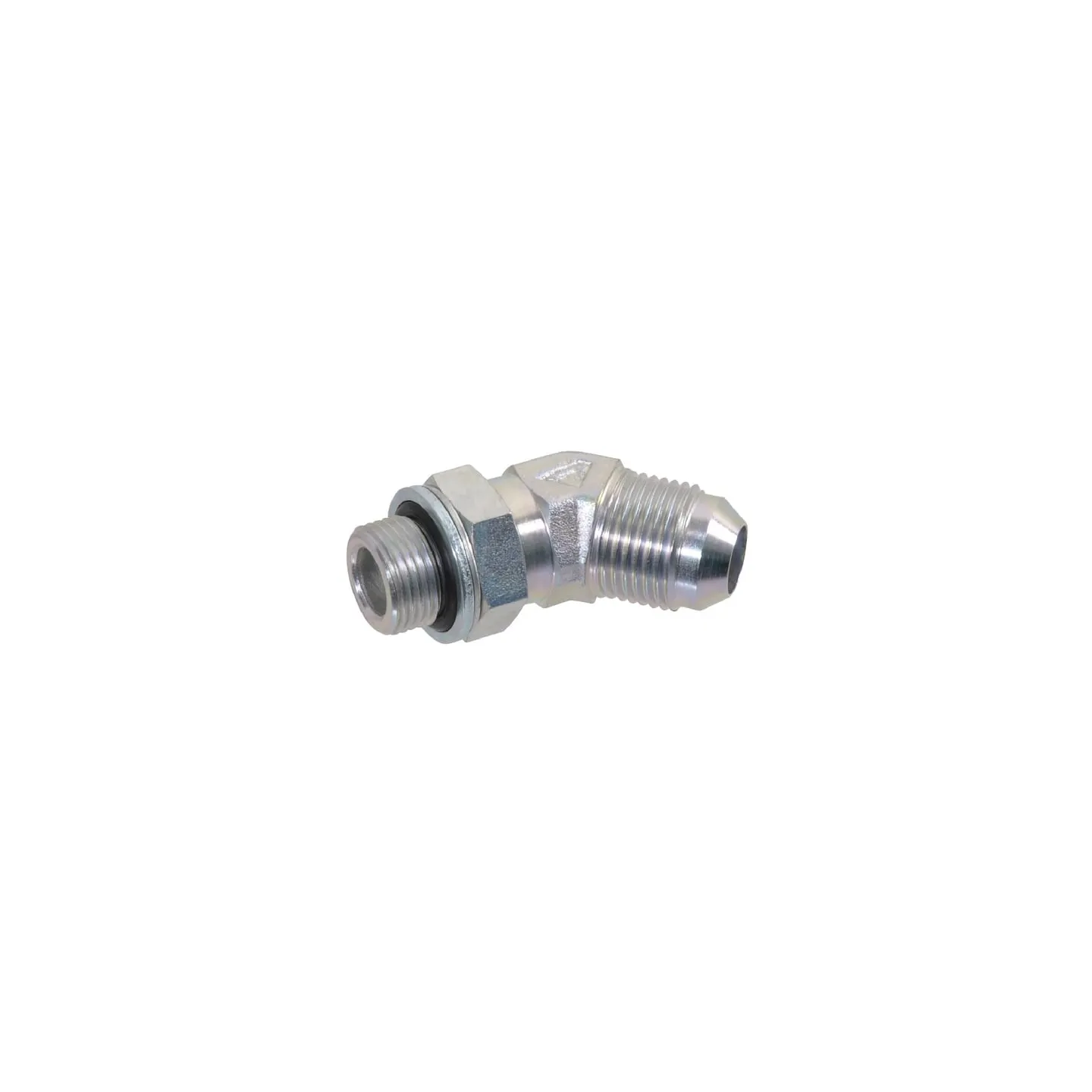

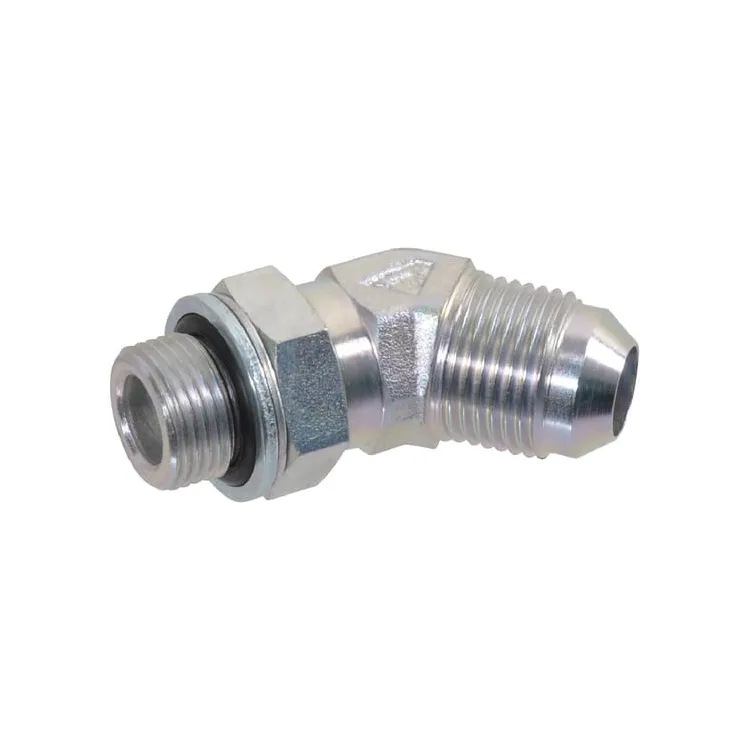

Elbow 7/8 JIC x 1/2 BSP 45° KIB451408

Name: Elbow 7/8 JIC x 1/2 BSP 45° KIB451408
Brand: Alfagomma
SKU: KIB451408
Price: 15.08 EUR
Availability: InStock

Payment options

€15.08

Tax included

4-5 Working days

Elbow 7/8 JIC x 1/2 BSP 45° KIB451408 Alfagomma

IN WAREHOUSE

ID: 88771

Description

Part number	KIB451408
EAN
Unit	Each
Product details	For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37° cone side is UNF in accordance with ANSI Screw-in couplings Adjustable 45°
Angle	45 °
Connection 2, centre to end distance	29.5 mm
Connection 2, diameter	1/2 Inch
Connection 2, thread diameter	1/2 Inch
Connection 2, thread type	BSP
Connection 2, threads per inch	14
Connection 2, type	Thread
Connection 2, type - male/female	Male
F1Connection no 1 thread diameter	7/8 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	14
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Connections distance	37.5 mm
Max working pressure	280 BAR
Pipe diameter range	14-16 mm
Pipe diameter	5/8 Inch
Shape	Elbow - 2 connection sides
