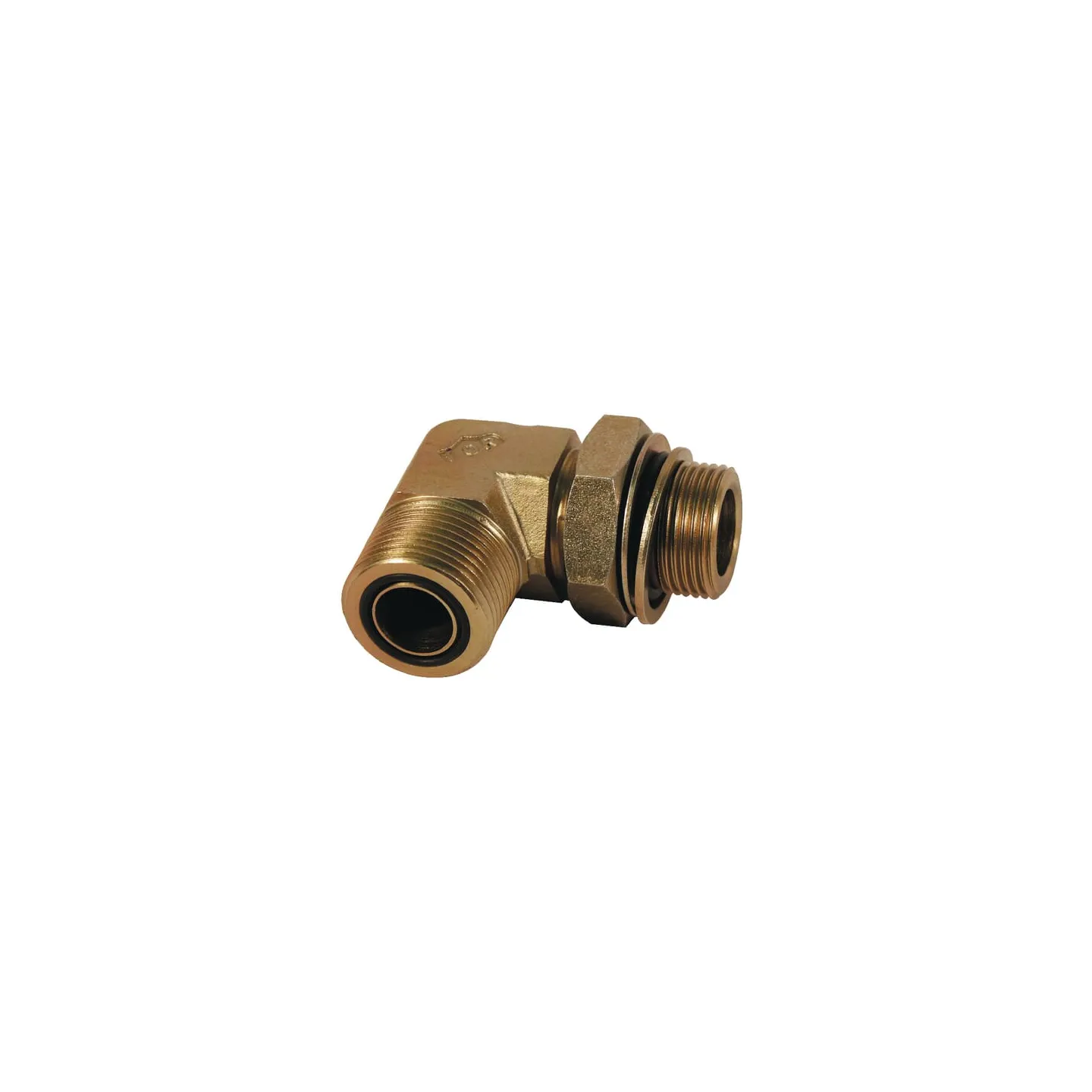

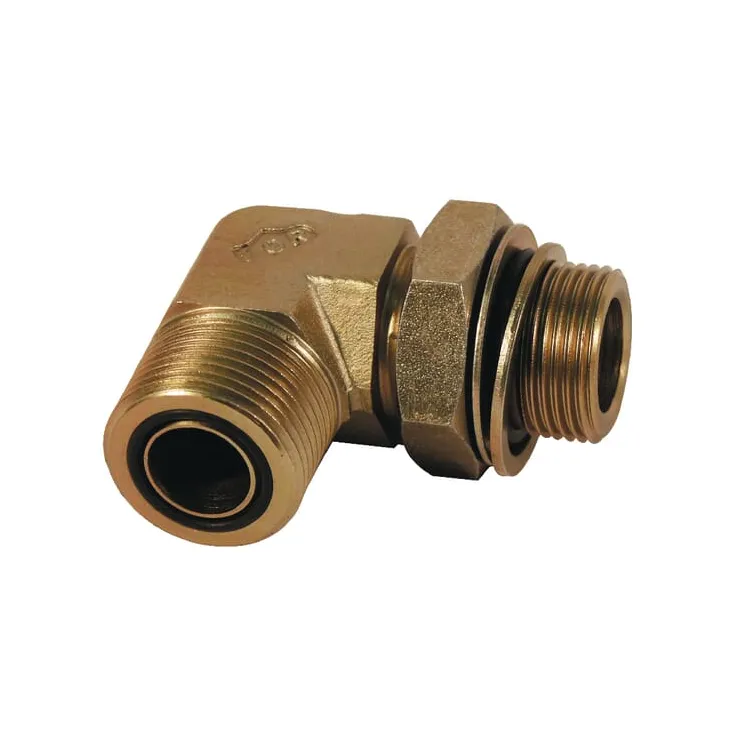

Elbow 1.7/16 ORFS x 1BSP KIOB2316 Alfagomma
search
  • Elbow 1.7/16 ORFS x 1BSP KIOB2316 Alfagomma

Elbow 1.7/16 ORFS x 1BSP KIOB2316

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€27.32
Tax included
4-5 Working days
Elbow 1.7/16 ORFS x 1BSP KIOB2316 Alfagomma
IN WAREHOUSE

88781

  • Brand
    Alfagomma
  • Reference
    KIOB2316
  • In stock
    2 Items
  • Condition
    New
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
KIOB2316
EAN
Unit
Each
Long description
ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time.
Pros
  • High tightening torque
  • Reusable
Product details
  • O-Ring Face Seals
  • O-ring in recess on the connection surface of the nipple
  • Standard : SAE I 1453
  • Material: Steel
  • Surface treatment : Zinc-plated
  • Viton seal available on request
Angle
90 °
L2Connection 2, centre to end distance
42 mm
F2Connection 2, thread diameter
1 Inch
Connection 2, thread type
BSP
Connection 2, threads per inch
11
Connection 2, type
Thread
Connection 2, type - male/female
Male
CH2Connection 2, wrench size
41.0 mm
L1Connection no 1 center to end distance
63 mm
F1Connection no 1 thread diameter
1-7/16 Inch
Connection no 1 thread type
ORFS
Connection no 1 threads per inch
12
Connection no 1 type - male/female
Male
Connection no 1 type
Thread
CH1Connection no 1 wrench size
36.0 mm
Outside diameter
1 Inch
Material
Steel
Shape
Elbow - 2 connection sides
Surface treatment
Galvanised
Working pressure
250 BAR
