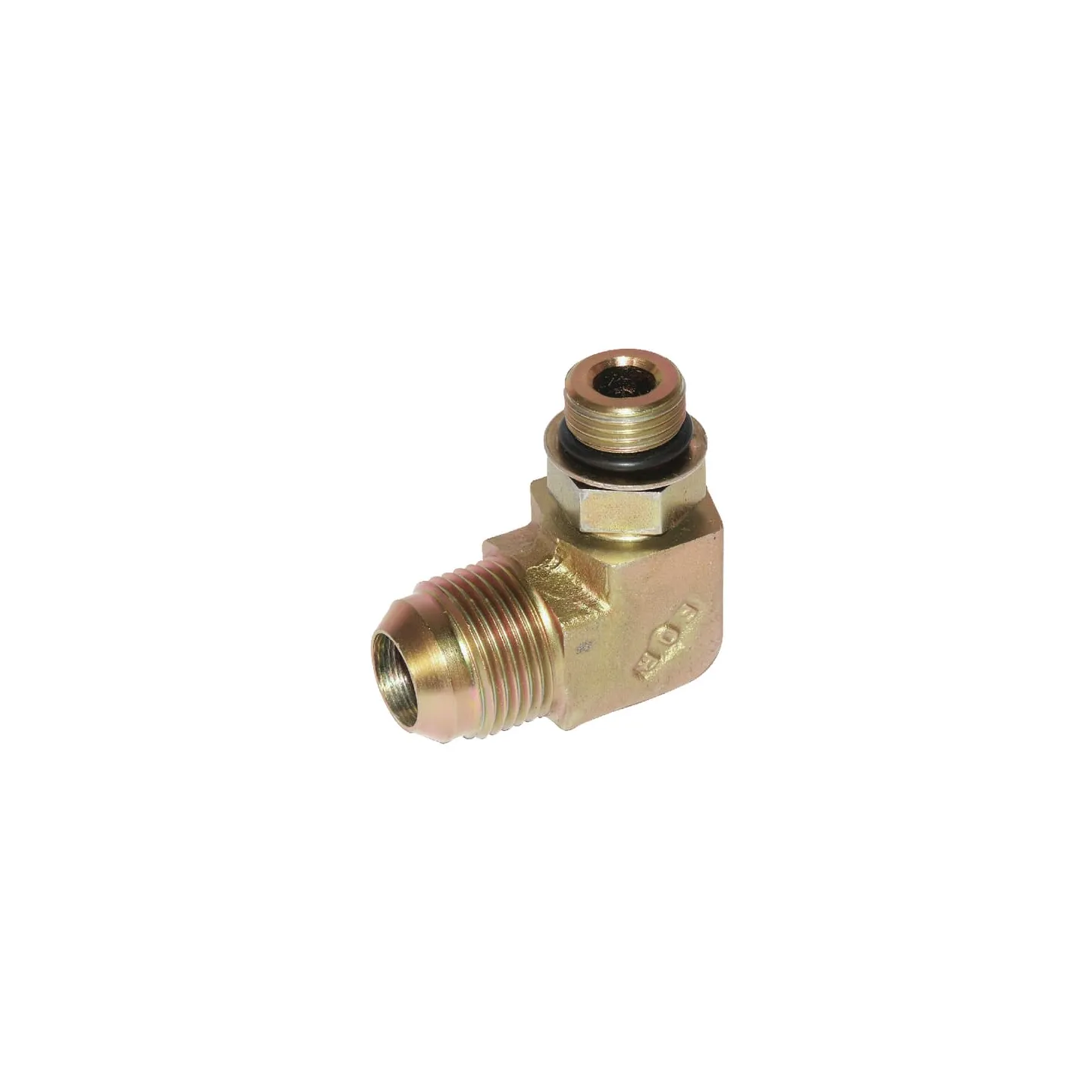

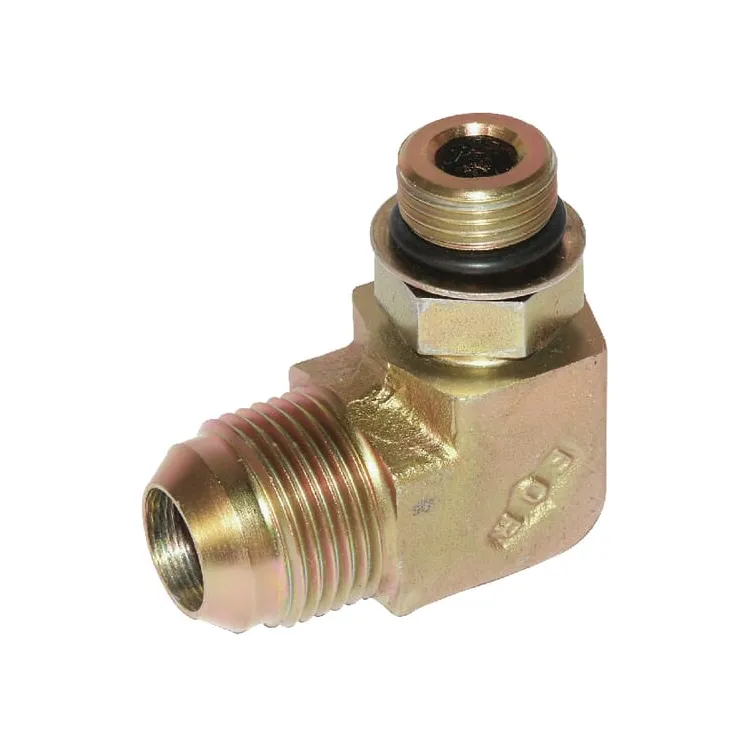

Elbow 7/8 JIC x 1-1/16 UNF KIU1417

Name: Elbow 7/8 JIC x 1-1/16 UNF KIU1417
Brand: Alfagomma
SKU: KIU1417
Price: 16.66 EUR
Availability: InStock

Payment options

€16.66

Tax included

4-5 Working days

Elbow 7/8 JIC x 1-1/16 UNF KIU1417 Alfagomma

IN WAREHOUSE

ID: 88790

Description

Part number	KIU1417
EAN
Unit	Each
Product details	UNF cone 37°
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	39.5 mm
Connection 2, thread diameter	1-1/16 Inch
Connection 2, thread type	UNF
Connection 2, threads per inch	12
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 center to end distance	49 mm
F1Connection no 1 thread diameter	7/8 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	12
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Material	Steel
Shape	Elbow - 2 connection sides
Surface treatment	Galvanised
Working pressure	280 BAR
