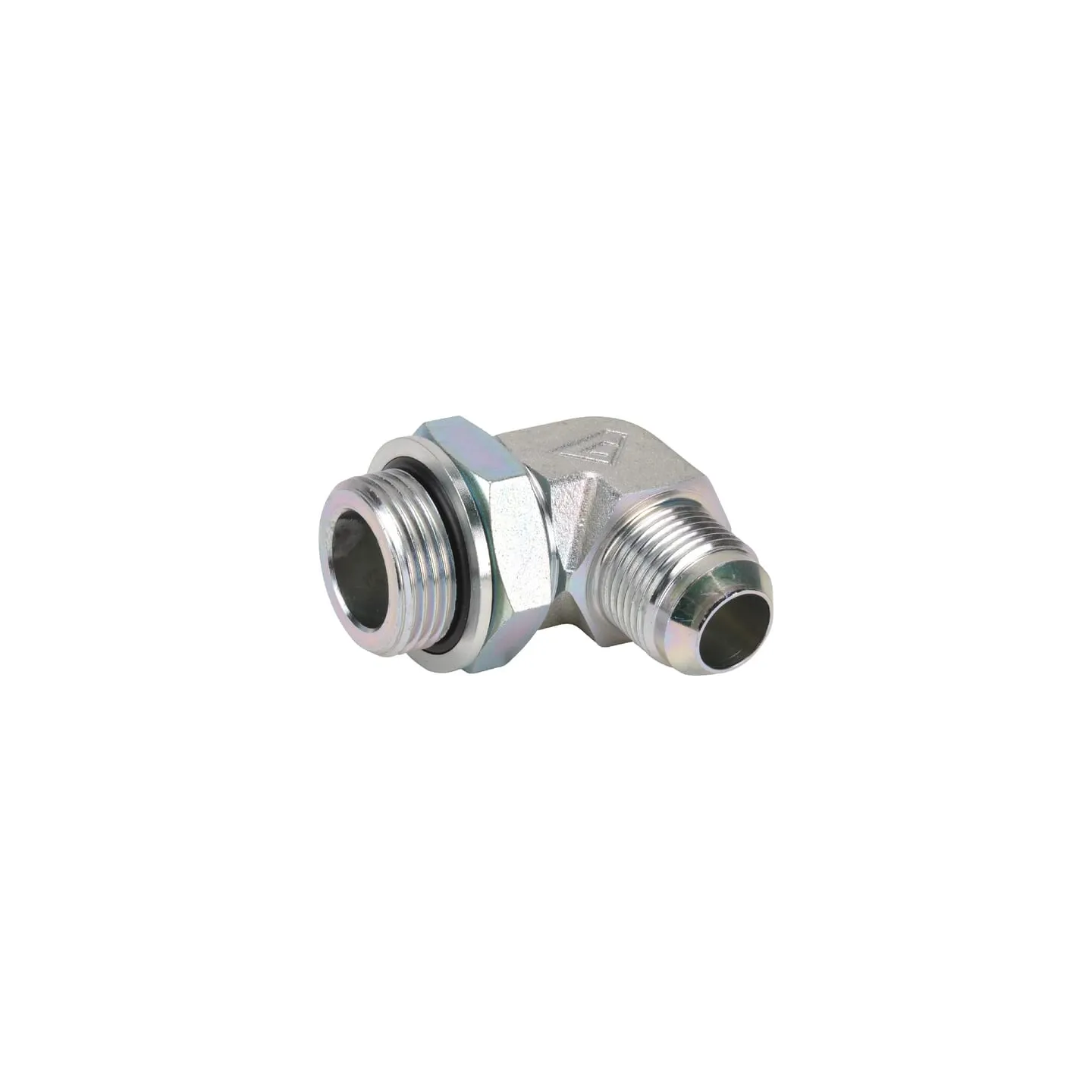

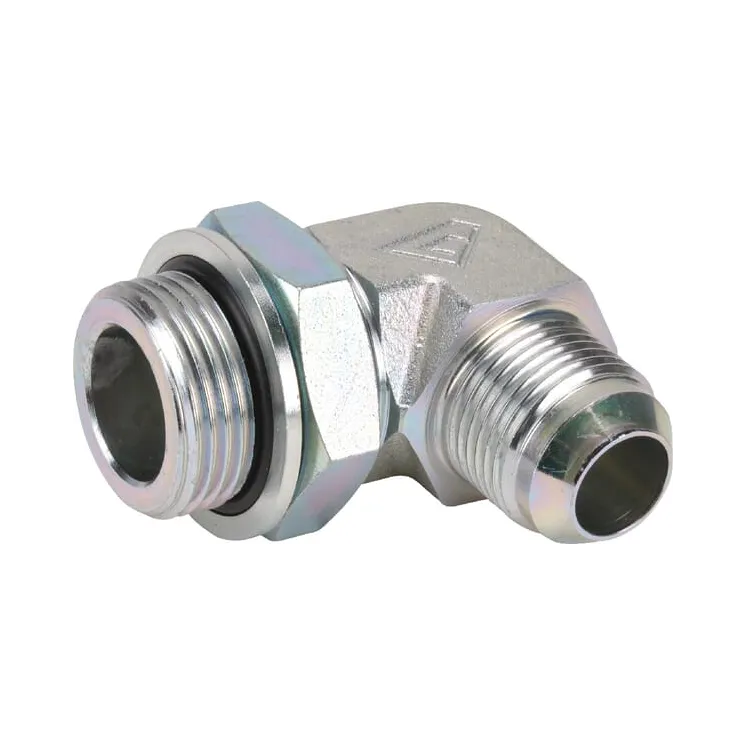

| Part number | KIB0704 | |
|---|---|---|
| EAN | ||
| Unit | Each | |
| Technical info | For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI. | |
| Angle | 90 ° | |
| Cone angle | 74 ° | |
| Connection 2, centre to end distance | 32 mm | |
| F2Connection 2, thread diameter | 1/4 Inch | |
| Connection 2, thread type | JIC | |
| Connection 2, threads per inch | 20 | |
| Connection 2, type | Thread | |
| Connection 2, type - male/female | Male | |
| Connection no 1 center to end distance | 26 mm | |
| F1Connection no 1 thread diameter | 7/16 Inch | |
| Connection no 1 thread type | BSP | |
| Connection no 1 threads per inch | 19 | |
| Connection no 1 type - male/female | Male | |
| Connection no 1 type | Thread | |
| Material | Steel | |
| Max working pressure | 380 BAR | |
| Pipe diameter | 14 mm | |
| Pipe diameter | 1/4 Inch | |
| Shape | Elbow - 2 connection sides | |
| Surface treatment | Galvanised |
