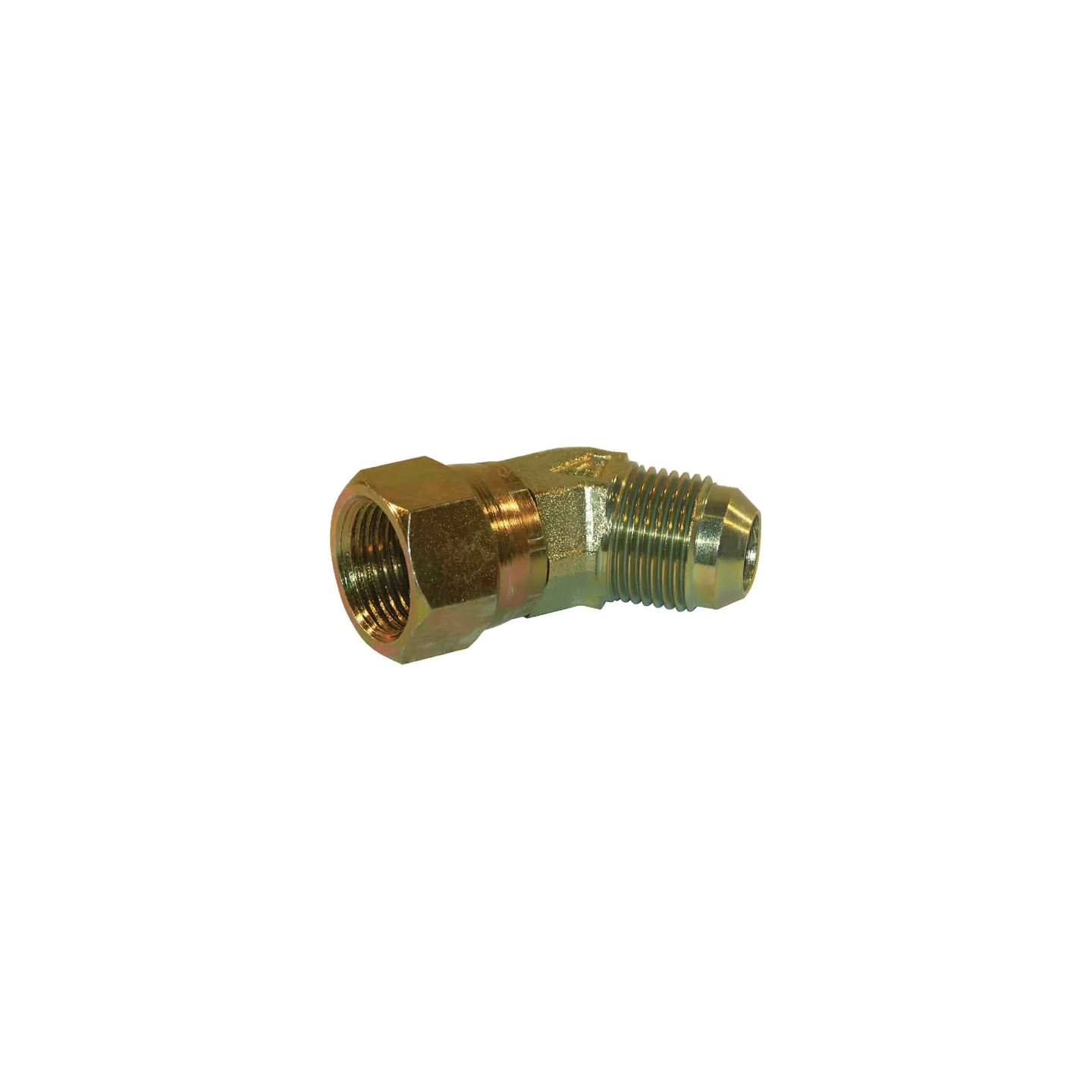

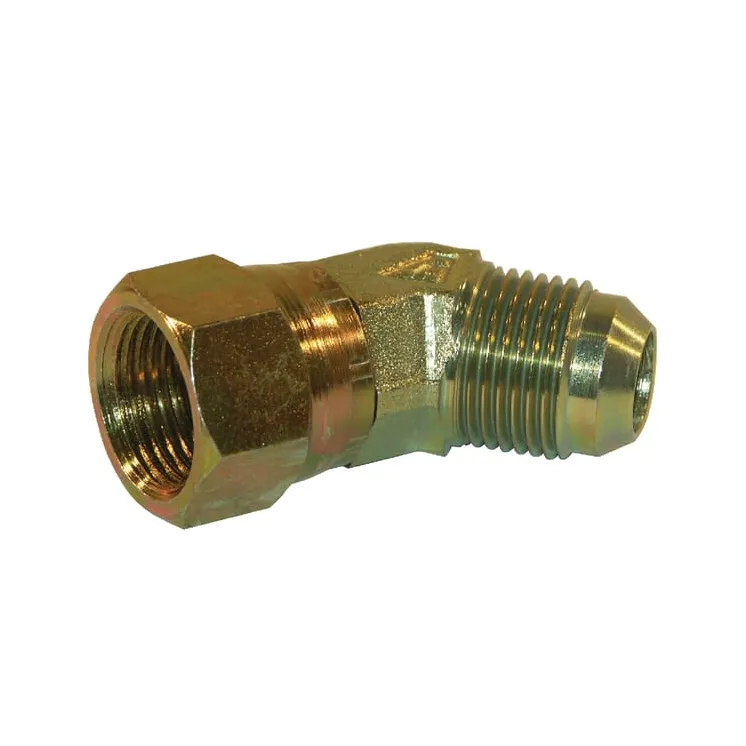

Elbow male/female 1-1/16 JIC 45° KOU4517 Alfagomma MF4517J
search
  • Elbow male/female 1-1/16 JIC 45° KOU4517 Alfagomma MF4517J

Elbow male/female 1-1/16 JIC 45° KOU4517 MF4517J

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€13.52
Tax included
On Request
Elbow male/female 1-1/16 JIC 45° KOU4517 Alfagomma MF4517J
ON REQUEST

88797

Part number
KOU4517
EAN
Unit
Each
Product details
  • For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514
  • Connection thread on the 37º cone side is UNF in accordance with ANSI
Angle
45 °
Connection 2, centre to end distance
34 mm
Connection 2, thread diameter
1-1/16 Inch
Connection 2, thread type
JIC
Connection 2, threads per inch
12
Connection 2, type
Thread
Connection 2, type - male/female
Male
Connection no 1 thread diameter
1-1/16 Inch
Connection no 1 thread type
JIC
Connection no 1 threads per inch
12
Connection no 1 type - male/female
Female
Connection no 1 type
Swivel nut
Max working pressure
280 BAR
Pipe diameter
20 mm
Pipe diameter
3/4 Inch
Shape
Elbow - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    KOU4517
  • Condition
    New
  • CODE
    MF4517J
