Elbow male/female 3/4 JIC 45° KOU4512 Alfagomma
search
  • Elbow male/female 3/4 JIC 45° KOU4512 Alfagomma

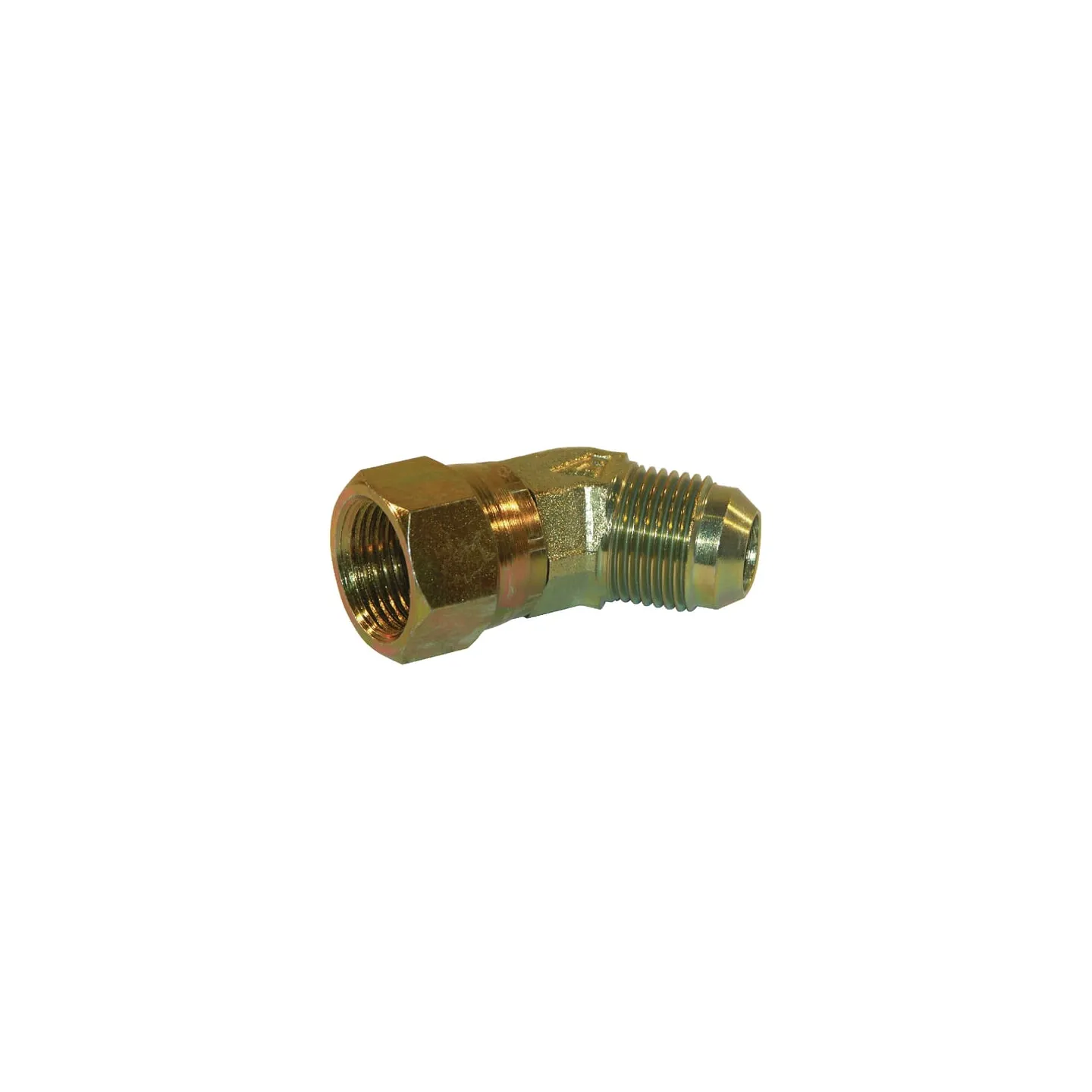

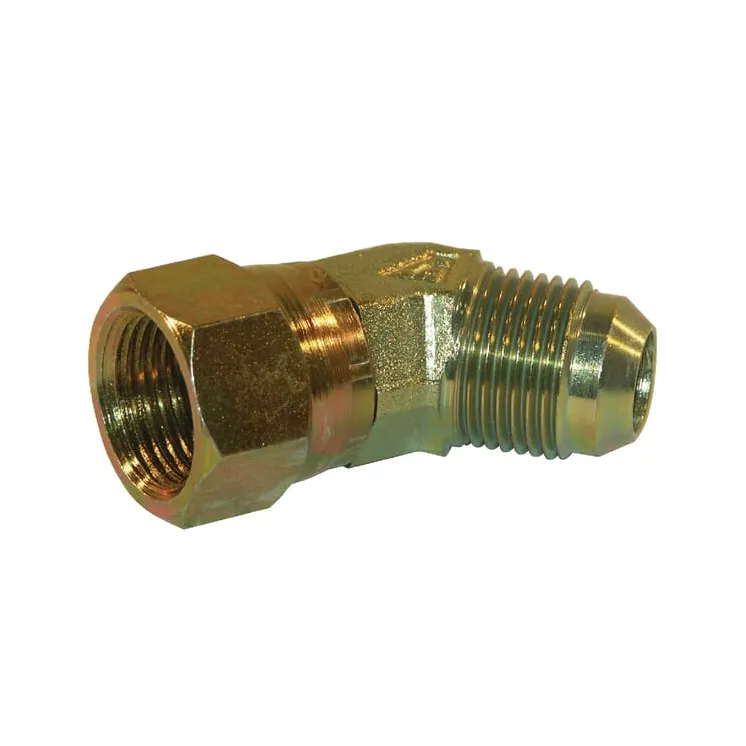

Elbow male/female 3/4 JIC 45° KOU4512

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€10.35
Tax included
4-5 Working days
Elbow male/female 3/4 JIC 45° KOU4512 Alfagomma
IN WAREHOUSE

88798

Part number
KOU4512
EAN
Unit
Each
Product details
  • For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514
  • Connection thread on the 37º cone side is UNF in accordance with ANSI
Angle
45 °
Connection 2, centre to end distance
25.5 mm
Connection 2, thread diameter
3/4 Inch
Connection 2, thread type
JIC
Connection 2, threads per inch
16
Connection 2, type
Thread
Connection 2, type - male/female
Male
Connection no 1 thread diameter
3/4 Inch
Connection no 1 thread type
JIC
Connection no 1 threads per inch
16
Connection no 1 type - male/female
Female
Connection no 1 type
Swivel nut
Max working pressure
340 BAR
Pipe diameter
12 mm
Pipe diameter
1/2 Inch
Shape
Elbow - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    KOU4512
  • In stock
    4 Items
