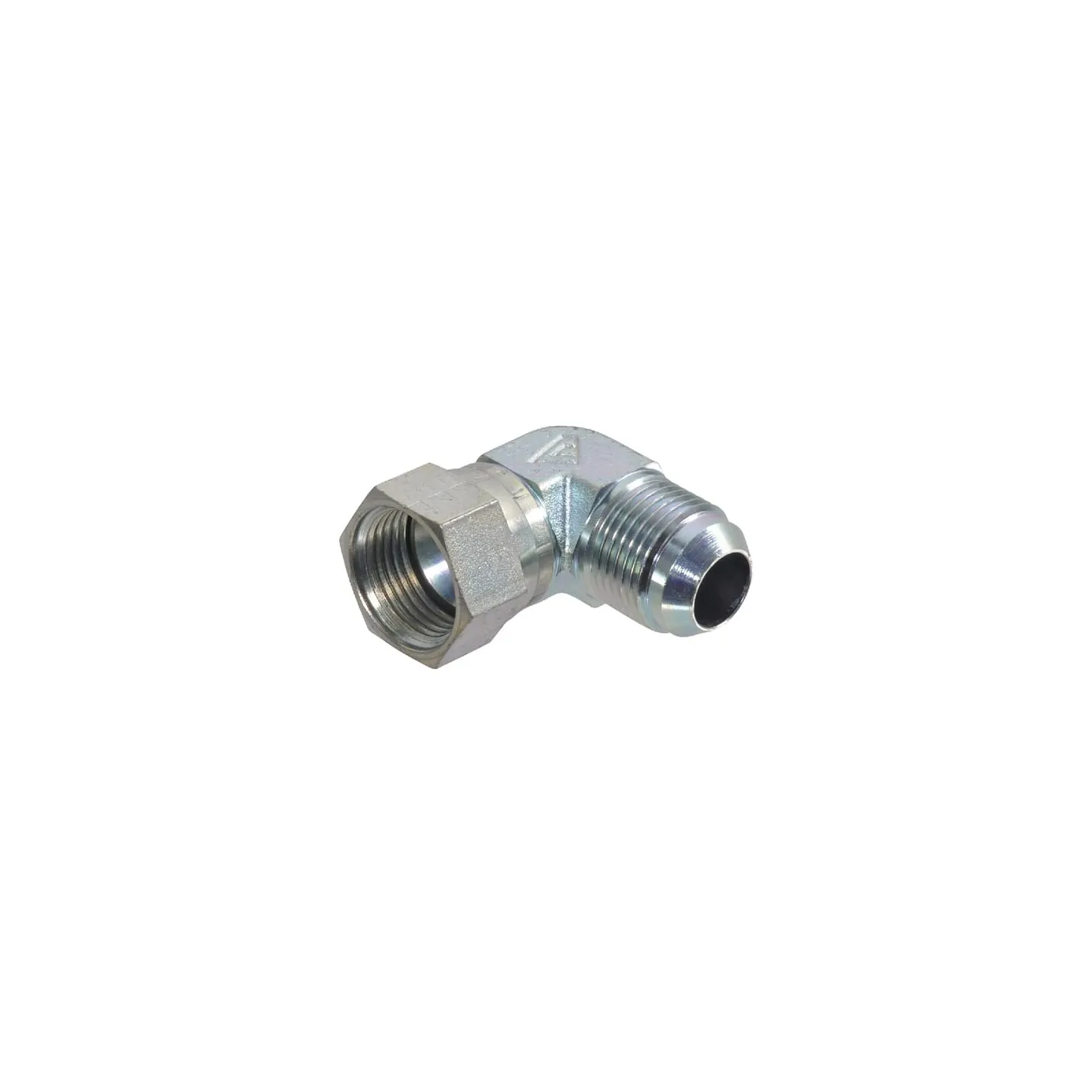

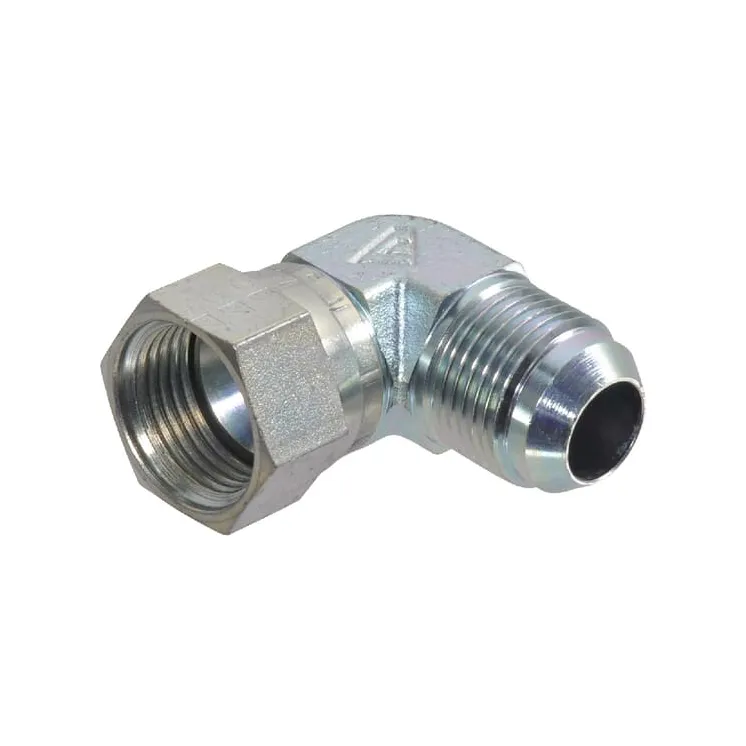

Elbow male/female 3/4 JIC 90° KOU12

Name: Elbow male/female 3/4 JIC 90° KOU12
Brand: Alfagomma
SKU: KOU12
Price: 11 EUR
Availability: InStock

Payment options

€11.00

Tax included

4-5 Working days

Elbow male/female 3/4 JIC 90° KOU12 Alfagomma

IN WAREHOUSE

ID: 88799

Description

Part number	KOU12
EAN
Unit	Each
Product details	For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37º cone side is UNF in accordance with ANSI
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	32 mm
Connection 2, diameter	3/4 Inch
Connection 2, thread pitch	16.00 mm
Connection 2, thread diameter	3/4 Inch
Connection 2, thread type	JIC
Connection 2, type	Thread
Connection 2, type - male/female	Male
F1Connection no 1 thread diameter	3/4 Inch
Connection no 1 thread length	35.2 mm
Connection no 1 thread type	JIC
Connection no 1 threads per inch	16
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
Max working pressure	340 BAR
Pipe diameter	12 mm
Pipe diameter	1/2 Inch
Shape	Elbow - 2 connection sides
