• Elbow 1-3/16 ORFS male/female  KOO19 Alfagomma

Elbow 1-3/16 ORFS male/female KOO19

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€19.66
Tax included
On Request

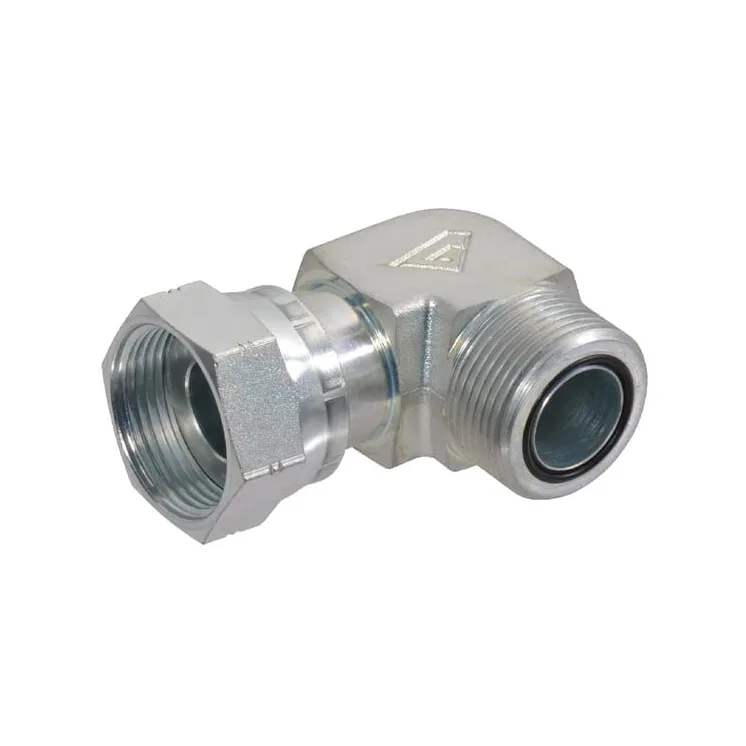

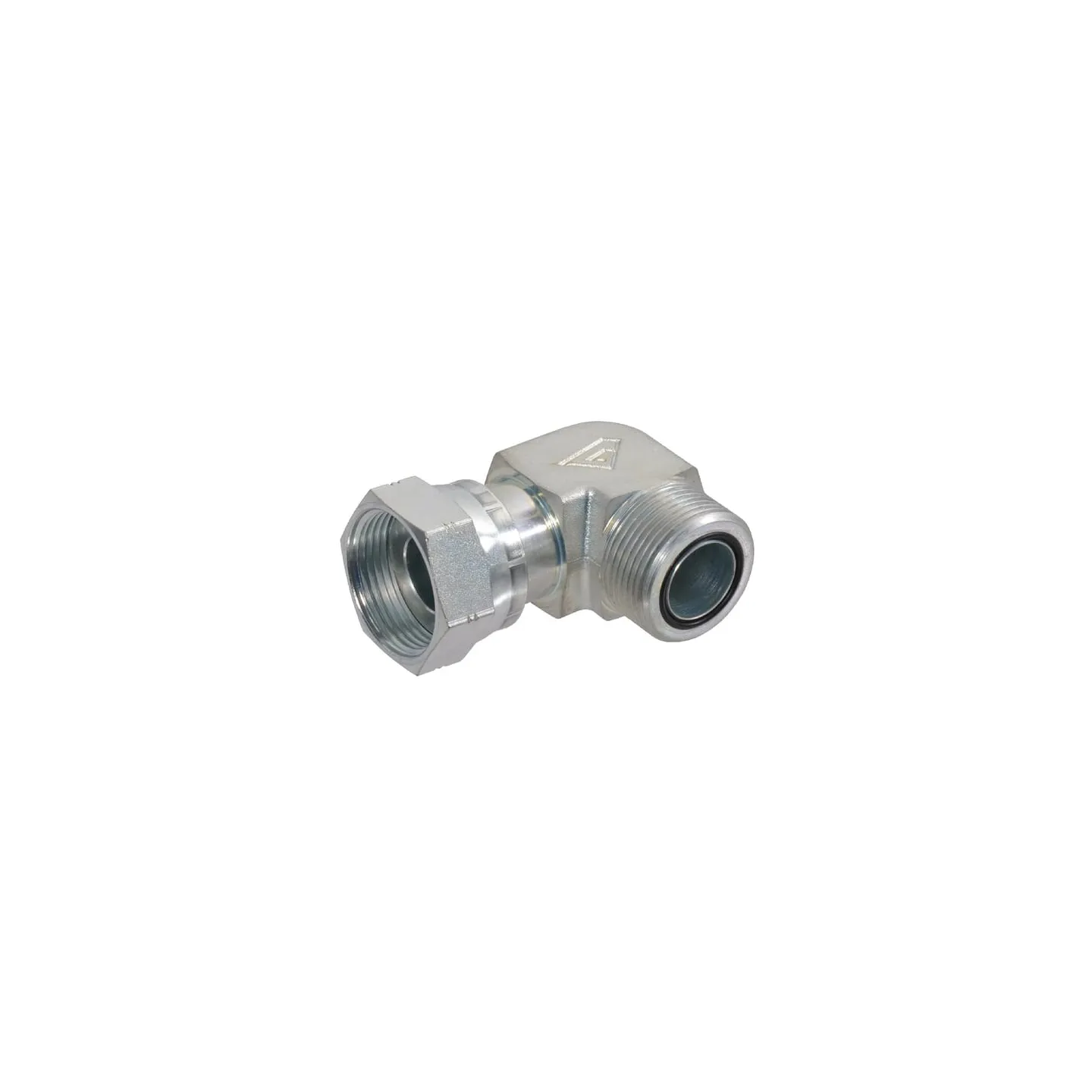

Elbow 1-3/16 ORFS male/female KOO19 Alfagomma
ON REQUEST

88804

Part number
KOO19
EAN
Unit
Each
Long description
ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time.
Pros
  • High tightening torque
  • Reusable
Product details
  • O-Ring Face Seals
  • O-ring in recess on the connection surface of the nipple
  • Standard : SAE I 1453
  • Material: Steel
  • Surface treatment: Zinc-plated
  • Viton seal available on request
Angle
90 °
PConnection 2, centre to end distance
46.5 mm
FConnection 2, thread diameter
1-13/16 Inch
Connection 2, thread type
ORFS
Connection 2, threads per inch
16
Connection 2, type
Thread
Connection 2, type - male/female
Male
CH2Connection 2, wrench size
36.0 mm
L1Connection no 1 center to end distance
37.5 mm
FConnection no 1 thread diameter
1-13/16 Inch
Connection no 1 thread type
ORFS
Connection no 1 threads per inch
16
Connection no 1 type - male/female
Female
Connection no 1 type
Swivel nut
CH1Connection no 1 wrench size
27.0 mm
Material
Steel
Max working pressure
400 BAR
Shape
Elbow - 2 connection sides
  • Brand
  • Reference
    KOO19
  • Condition
    New
