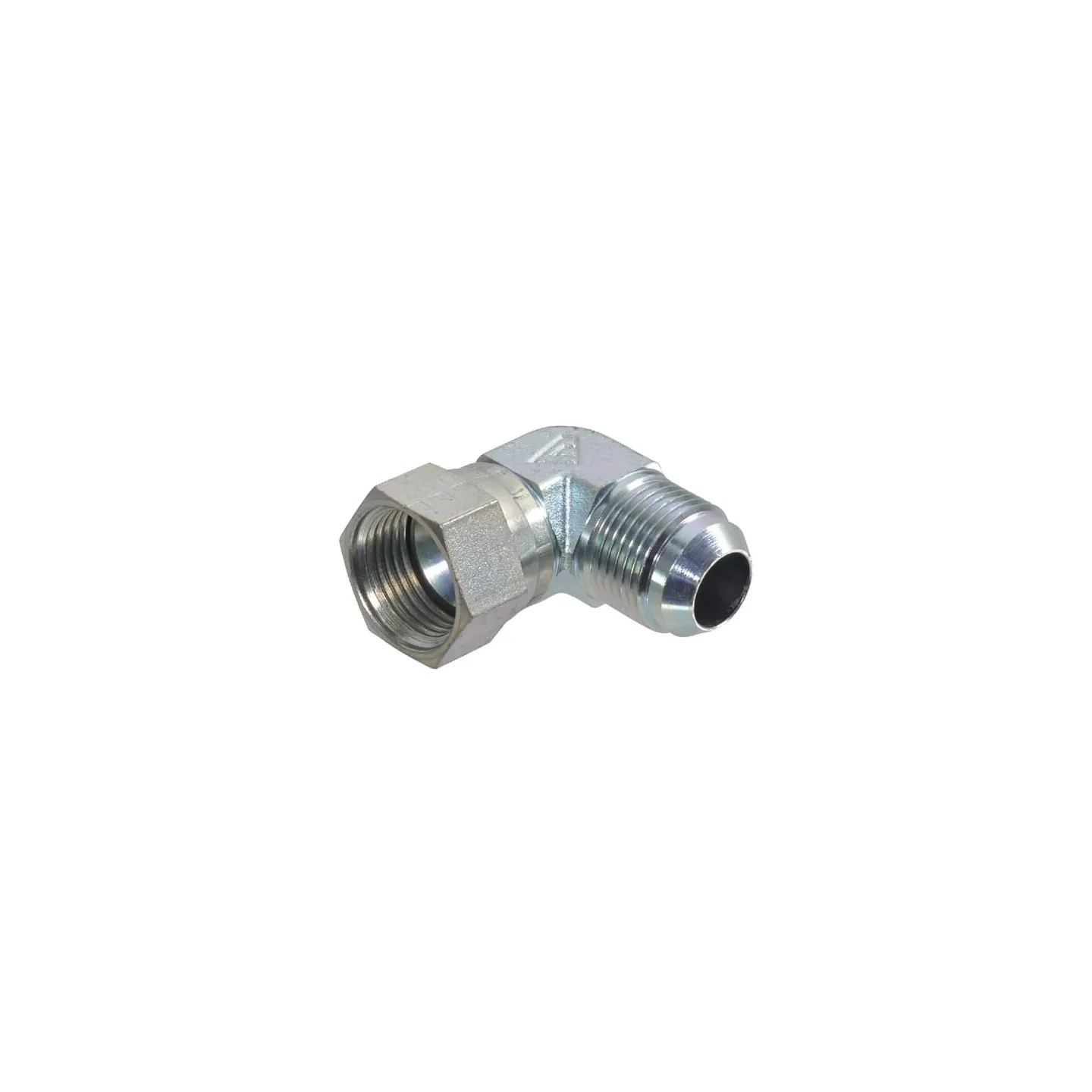

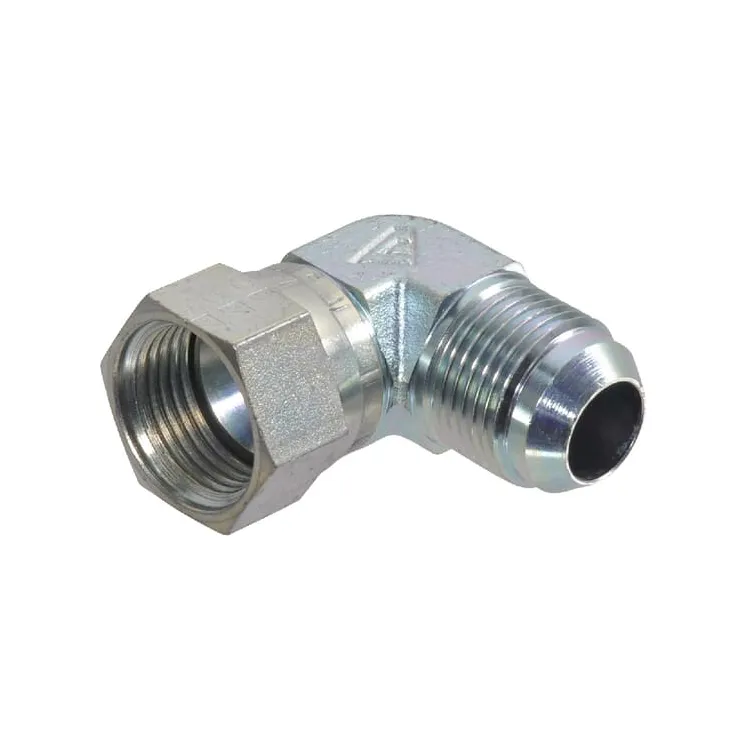

Elbow male/female 9/16 JIC 90° KOU09 MF9009JK

Name: Elbow male/female 9/16 JIC 90° KOU09 MF9009JK
Brand: Alfagomma
SKU: KOU09
Price: 6.93 EUR
Availability: BackOrder

Payment options

€6.93

Tax included

On Request

Elbow male/female 9/16 JIC 90° KOU09 Alfagomma MF9009JK

ON REQUEST

ID: 88809

Description

Part number	KOU09
EAN
Unit	Each
Product details	For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37º cone side is UNF in accordance with ANSI
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	27 mm
Connection 2, diameter	9/16 Inch
Connection 2, thread pitch	18.00 mm
Connection 2, thread diameter	9/16 Inch
Connection 2, thread type	JIC
Connection 2, type	Thread
Connection 2, type - male/female	Male
F1Connection no 1 thread diameter	9/16 Inch
Connection no 1 thread length	32 mm
Connection no 1 thread type	JIC
Connection no 1 threads per inch	18
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
Max working pressure	380 BAR
Pipe diameter	10 mm
Pipe diameter	3/8 Inch
Shape	Elbow - 2 connection sides
