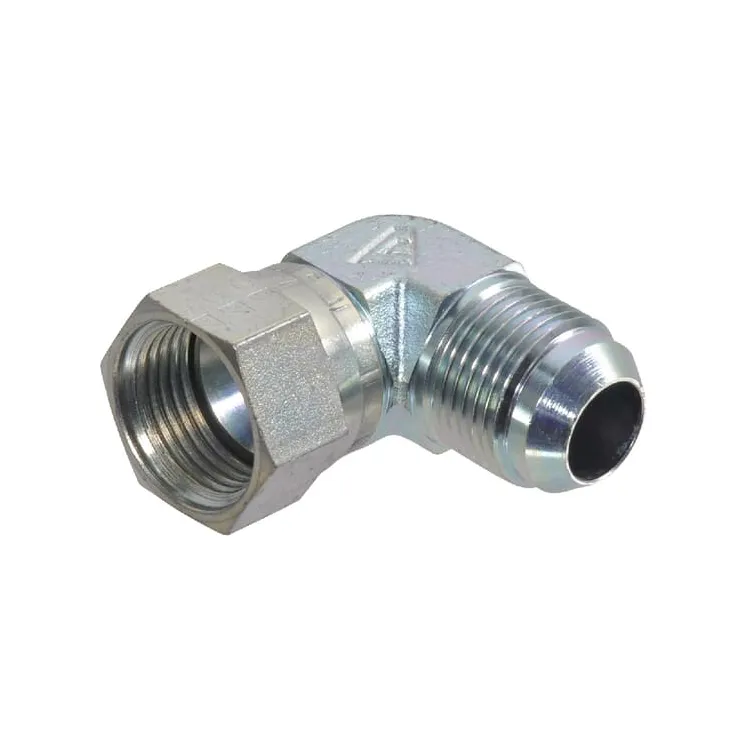

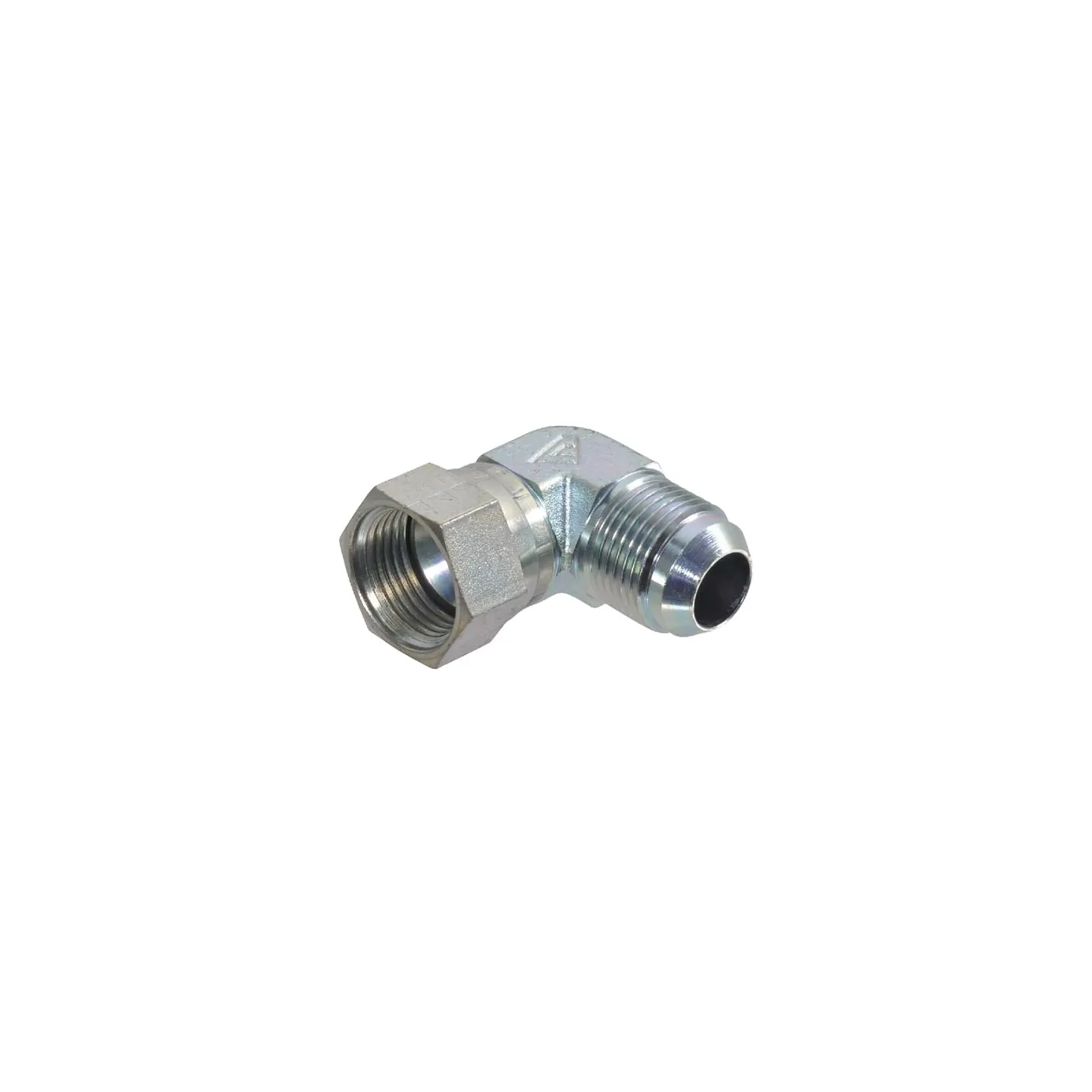

Elbow male/female 7/8 JIC 90° KOU14

Name: Elbow male/female 7/8 JIC 90° KOU14
Brand: Alfagomma
SKU: KOU14
Price: 12.85 EUR
Availability: InStock

Payment options

€12.85

Tax included

4-5 Working days

Elbow male/female 7/8 JIC 90° KOU14 Alfagomma

IN WAREHOUSE

ID: 88812

Description

Part number	KOU14
EAN
Unit	Each
Product details	For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37º cone side is UNF in accordance with ANSI
Long description	Technical information: For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Angle	90 °
Cone angle	74 °
Connection 2, centre to end distance	36.5 mm
Connection 2, diameter	7/8 Inch
Connection 2, thread pitch	14.00 mm
Connection 2, thread diameter	7/8 Inch
Connection 2, thread type	JIC
Connection 2, type	Thread
Connection 2, type - male/female	Male
F1Connection no 1 thread diameter	7/8 Inch
Connection no 1 thread length	40.7 mm
Connection no 1 thread type	JIC
Connection no 1 threads per inch	14
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
Max working pressure	280 BAR
Pipe diameter	14 mm
Pipe diameter	5/8 Inch
Shape	Elbow - 2 connection sides
