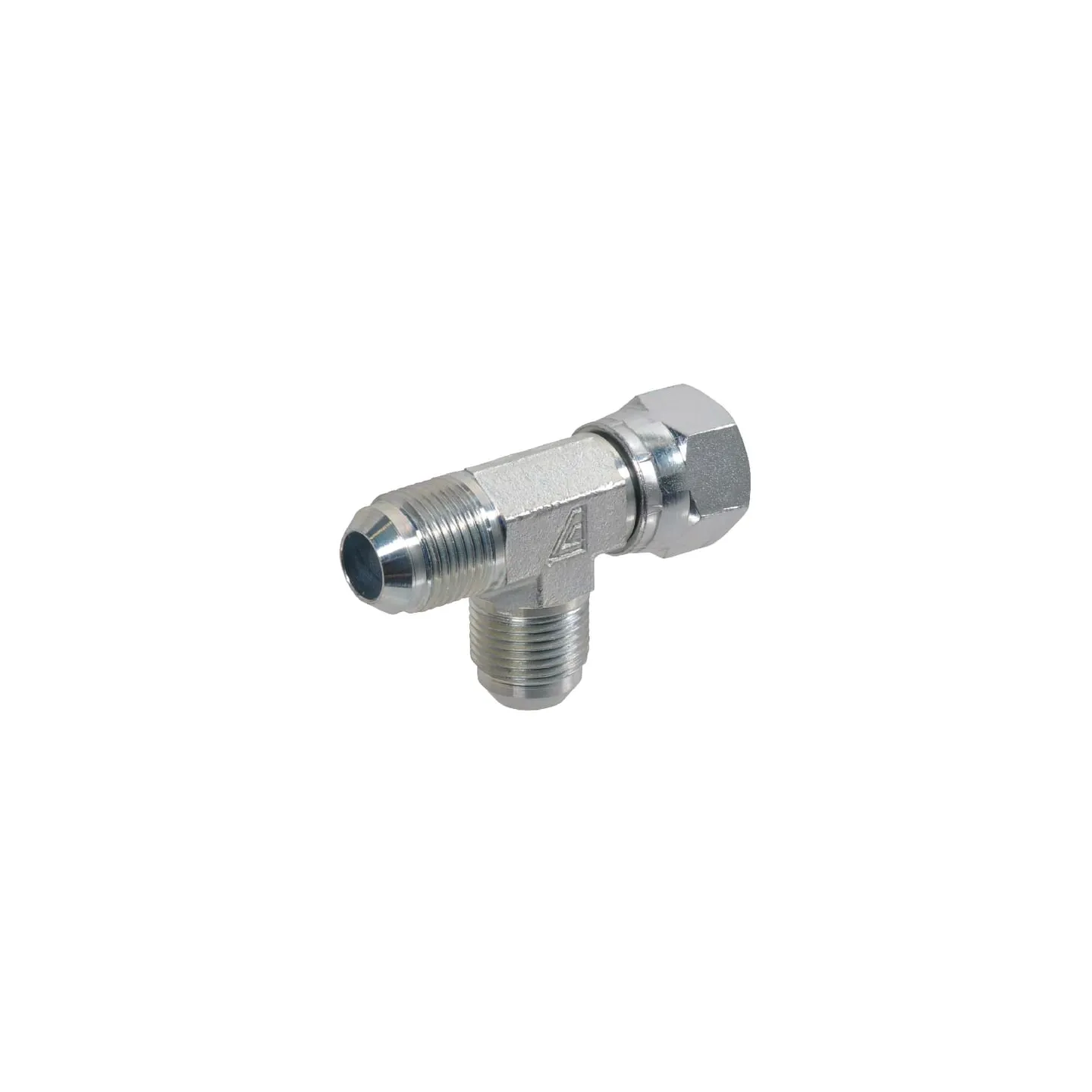

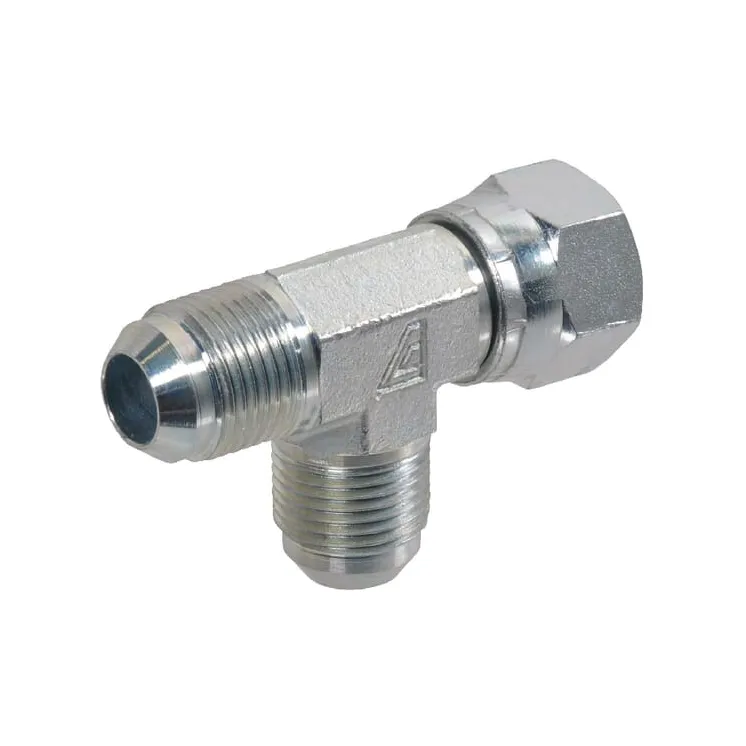

Tee union F-M JIC 9/16 UNF LOU09

Name: Tee union F-M JIC 9/16 UNF LOU09
Brand: Alfagomma
SKU: LOU09
Price: 12.21 EUR
Availability: InStock

Payment options

€12.21

Tax included

4-5 Working days

Tee union F-M JIC 9/16 UNF LOU09 Alfagomma

IN WAREHOUSE

ID: 88821

Description

Part number	LOU09
EAN
Unit	Each
Long description	Technical information: For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Connection no 1 thread type	UNF
FConnection no 1 thread diameter	9/16 Inch
Connection 2, thread type	JIC
FConnection 2, thread diameter	9/16 Inch
Connection 3, thread type	JIC
Shape	Tee (T) - 3 connections
Connection no 1 type	Thread
Connection no 1 type - male/female	Female
Connection 2, type	Swivel nut
Connection 2, type - male/female	Male
Connection 3, type	Thread
Connection 3, type - male/female	Male
FConnection 3, thread diameter	9/16 Inch
Cone angle	74 °
Pipe diameter	3/8 Inch
D1Pipe diameter	10 mm
Material	Steel
Surface treatment	Galvanised
Working pressure	380 BAR
