| Part number | MM9008BH | |
|---|---|---|
| EAN | ||
| Unit | Each | |

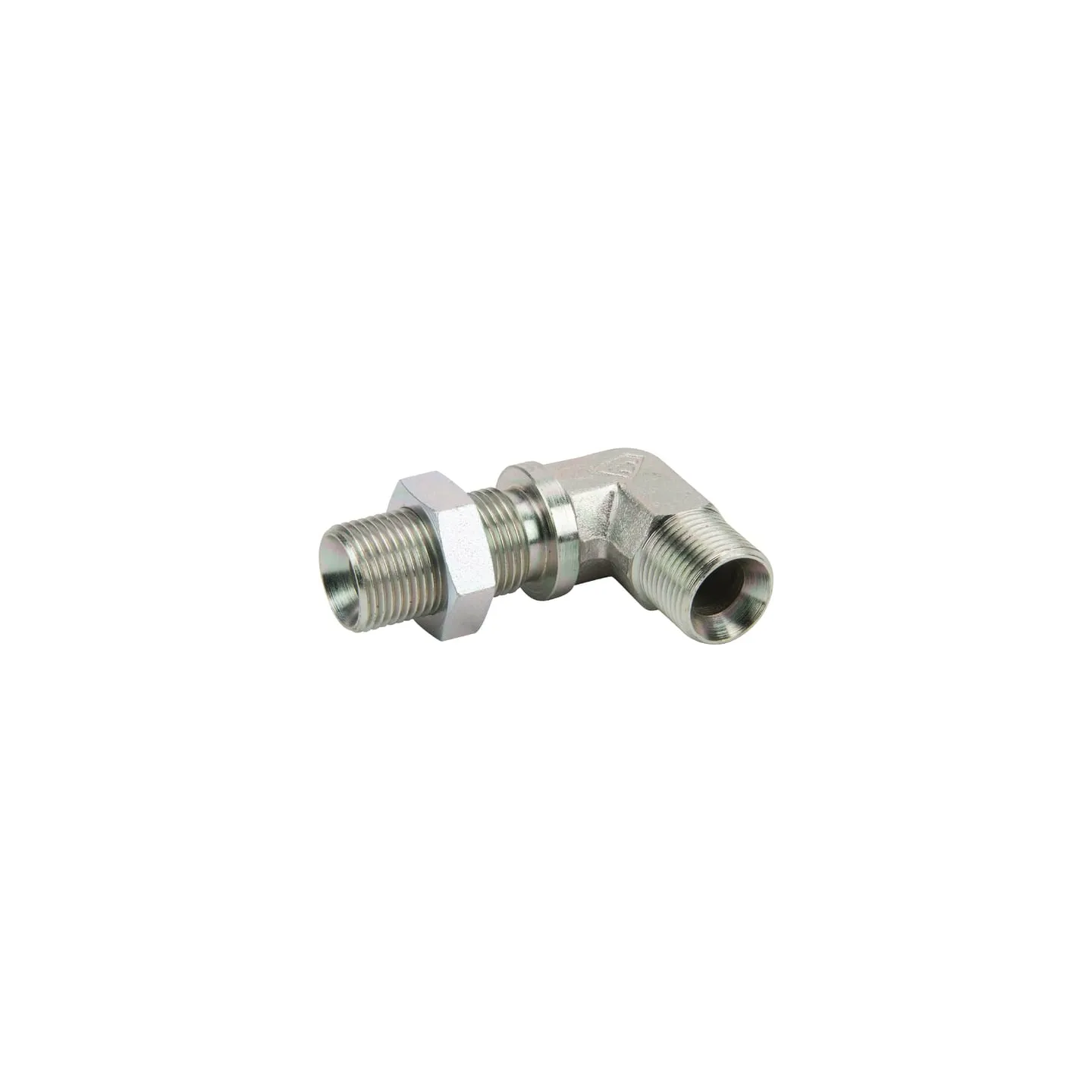

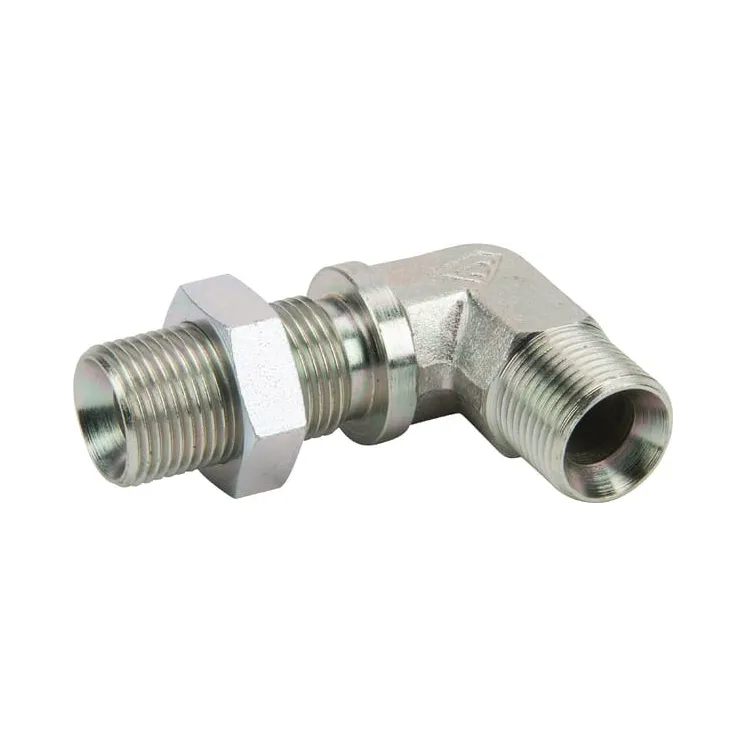

| Long description | Bulkhead couplings are used where hydraulic pipes must pass through a wall or bulkhead, with a focus on maintaining the seal and integrity of the system. | |
| Angle | 90 ° | |
| L2Connection 2, centre to end distance | 55 mm | |
| Connection 2, thread diameter | 1/2 Inch | |
| Connection 2, thread type | BSP | |
| Connection 2, threads per inch | 14 | |
| Connection 2, type | Thread | |
| Connection 2, wrench size | 27.0 mm | |
| L1Connection no 1 center to end distance | 35 mm | |
| CConnection centre to insert distance | 34 mm | |
| D1Connection no 1 diameter | 12 mm | |
| FConnection no 1 thread diameter | 1/2 Inch | |
| Connection no 1 thread type | BSP | |
| Connection no 1 threads per inch | 14 | |
| Connection no 1 type - male/female | Male | |
| Connection no 1 type | Thread | |
| S2Connection no 1 wrench size | 22.0 mm | |
| Pipe diameter | 12 mm | |
| Shape | Elbow - 2 connection sides |
