| Part number | NSK10 | |
|---|---|---|
| EAN | ||
| Unit | Metre | |
| Qty. Rounding | 0.01 | |

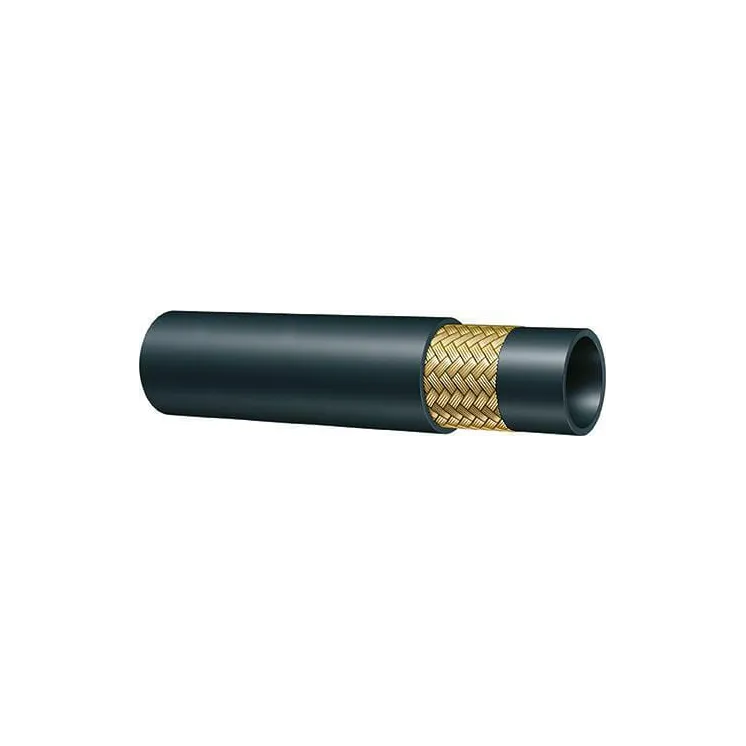

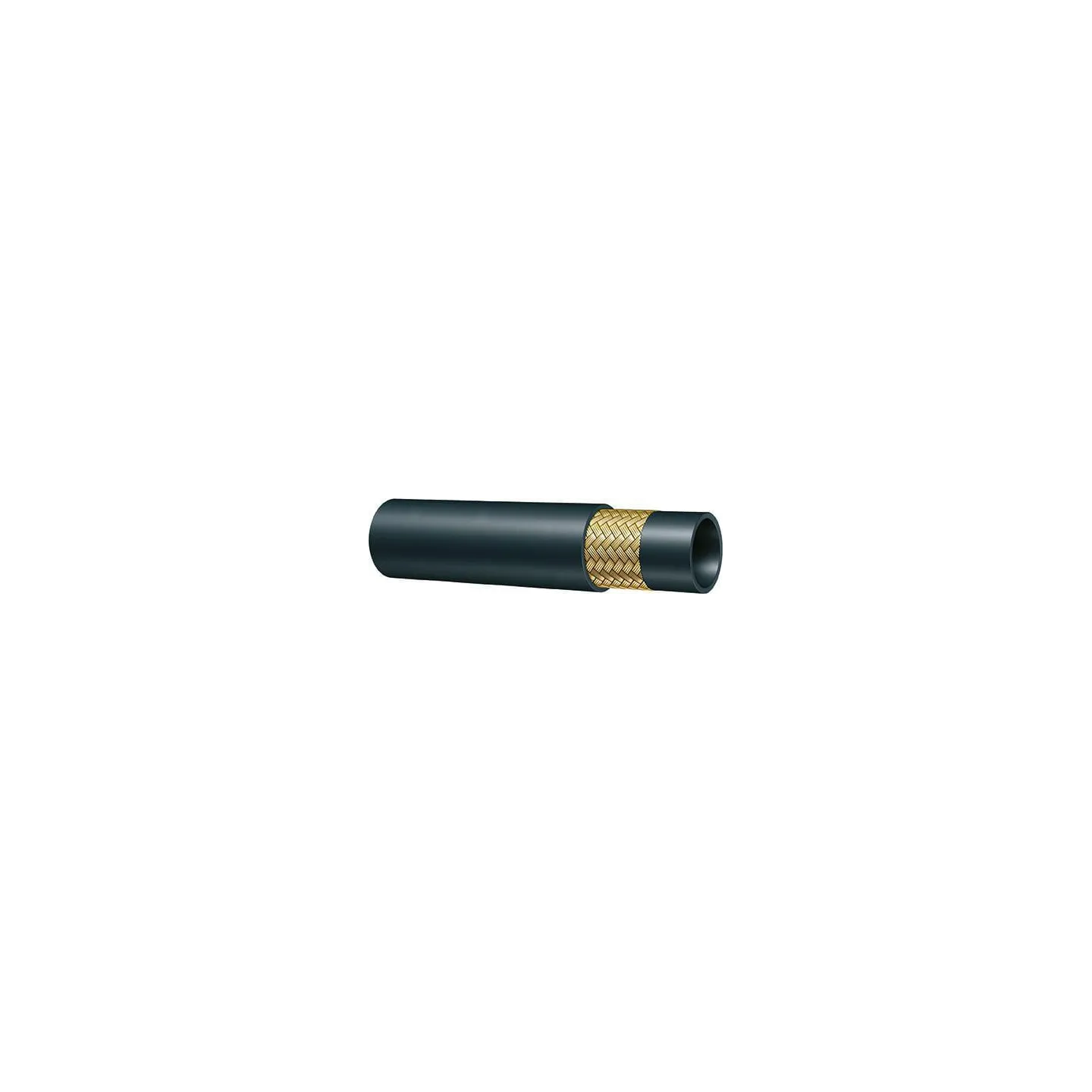

| Details | Compact rubber hydraulic hose with 1 ply of high-strength steel wire mesh | |
| Application range |
| |
| Properties | Durable outer jacket resistant to ozone and oil | |
| Technical info | Lengths available: Any, and on reels of 25 or 50 m | |
| Benefits | These compact hoses have an extremely small external diameter and are more flexible than hoses from the NST series. | |
| Hose inside diameter | 3/8 Inch | |
| Hose inside diameter | 9.5 mm | |
| Max working pressure | 210 BAR | |
| Material inside | Nitrile rubber [NBR] | |
| Bend radius | 65 mm | |
| Weight | 0.277 kg/m | |
| Type | Hydraulic high pressure hose | |
| DN | 10 mm | |
| Hose outside diameter | 15.6 mm | |
| Hose outside diameter | 0.61 Inch | |
| Max working pressure | 3000 lbf/in² | |
| Burst pressure | 840 BAR | |
| Burst pressure | 84 MPa | |
| Burst pressure | 12000 lbf/in² | |
| Medium | Hydraulic oil | |
| Max working temperature | 100 °C | |
| Max. working temperature | 212 °F | |
| Min working temperature | -40 °C | |
| Min. working temperature | -40 °F | |
| Material outside | Styrene-butadiene rubber (SBR) | |
| Reinforcement type | Braid | |
| Reinforcement number of plies | 1 | |
| Reinforcement material | Steel | |
| Number of plies | 1 | |
| Weight | 0.19 lb/ft | |
| Bend radius | 2.56 Inch | |
| ISO standard | 11237 | |
| EN standard | 857 1SC |
