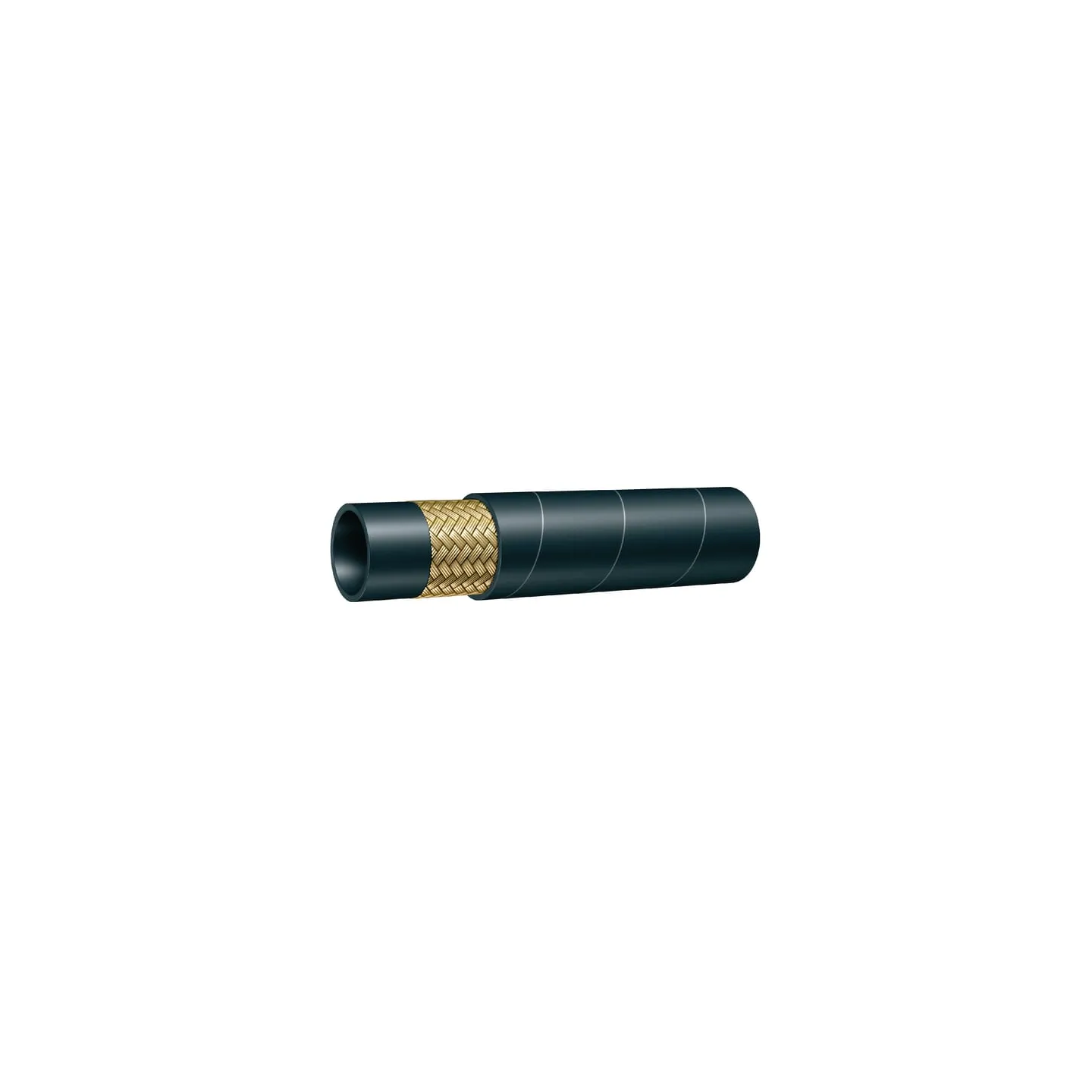

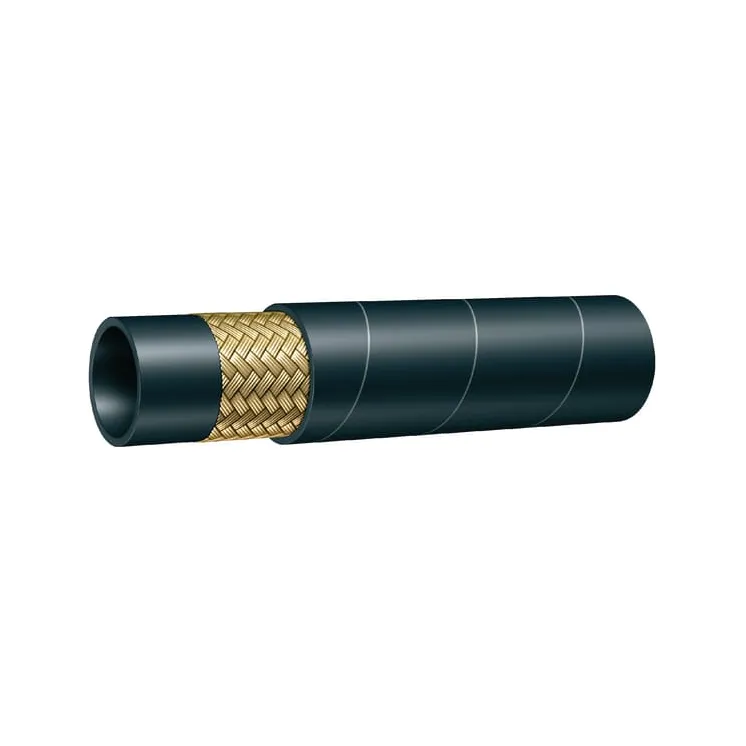

Hydraulic hose EN853-1SN-DN05 NSTHF5 NST5

Name: Hydraulic hose EN853-1SN-DN05 NSTHF5 NST5
Brand: Alfagomma
SKU: NSTHF5
Price: 8.36 EUR
Availability: InStock

Payment options

€8.36

Tax included

4-5 Working days

Hydraulic hose EN853-1SN-DN05 NSTHF5 Alfagomma NST5

IN WAREHOUSE

ID: 88872

Description

Part number	NSTHF5
EAN
Unit	Metre
Qty. Rounding	0.01
Pros	Eco-friendly production Fewer harmful emissions released during cutting
Product details	Halogen-free rubber surface Durable outer coating resistant to ozone and oil Can be ordered by the metre Everything up to DN 16 is available on 25-metre and 50-metre reels The length of a roll of hose that is not reeled is not fixed Mineral oil-based and glycol-based fluids Vegetable and mineral lubricants Crude oils, heating oil, coolant, compressed air
Long description	Application range: Gardening machines Agricultural equipment Mineral oil-based and glycol-based fluids Vegetable and mineral lubricants Crude oils, heating oil, coolant, compressed air Benefits: E
Hose inside diameter	3/16 Inch
Hose inside diameter	4.8 mm
Max working pressure	250 BAR
Material inside	Synthetic rubber
Bend radius	90 mm
Weight	0.18 kg/m
Type	Hydraulic high pressure hose
DN	5 mm
Hose outside diameter	11.1 mm
Burst pressure	1000 BAR
Medium	Hydraulic oil
Max working temperature	100 °C
Min working temperature	-40 °C
Material outside	Synthetic rubber
Reinforcement type	Braid
Reinforcement number of plies	1
Reinforcement material	Steel
Number of plies	1
EN standard	853 1SN
Approval	DNV ABS GL BV NKK RINA
