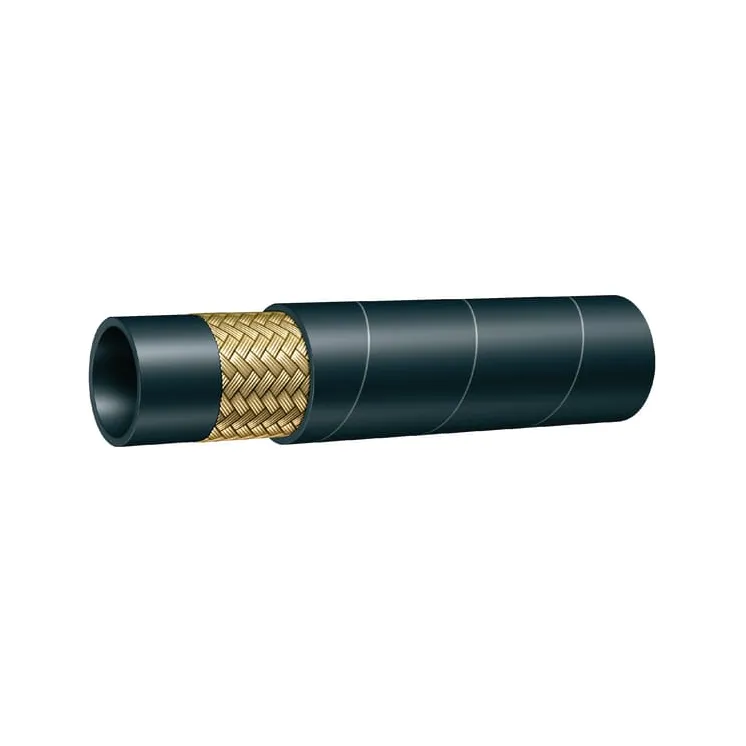

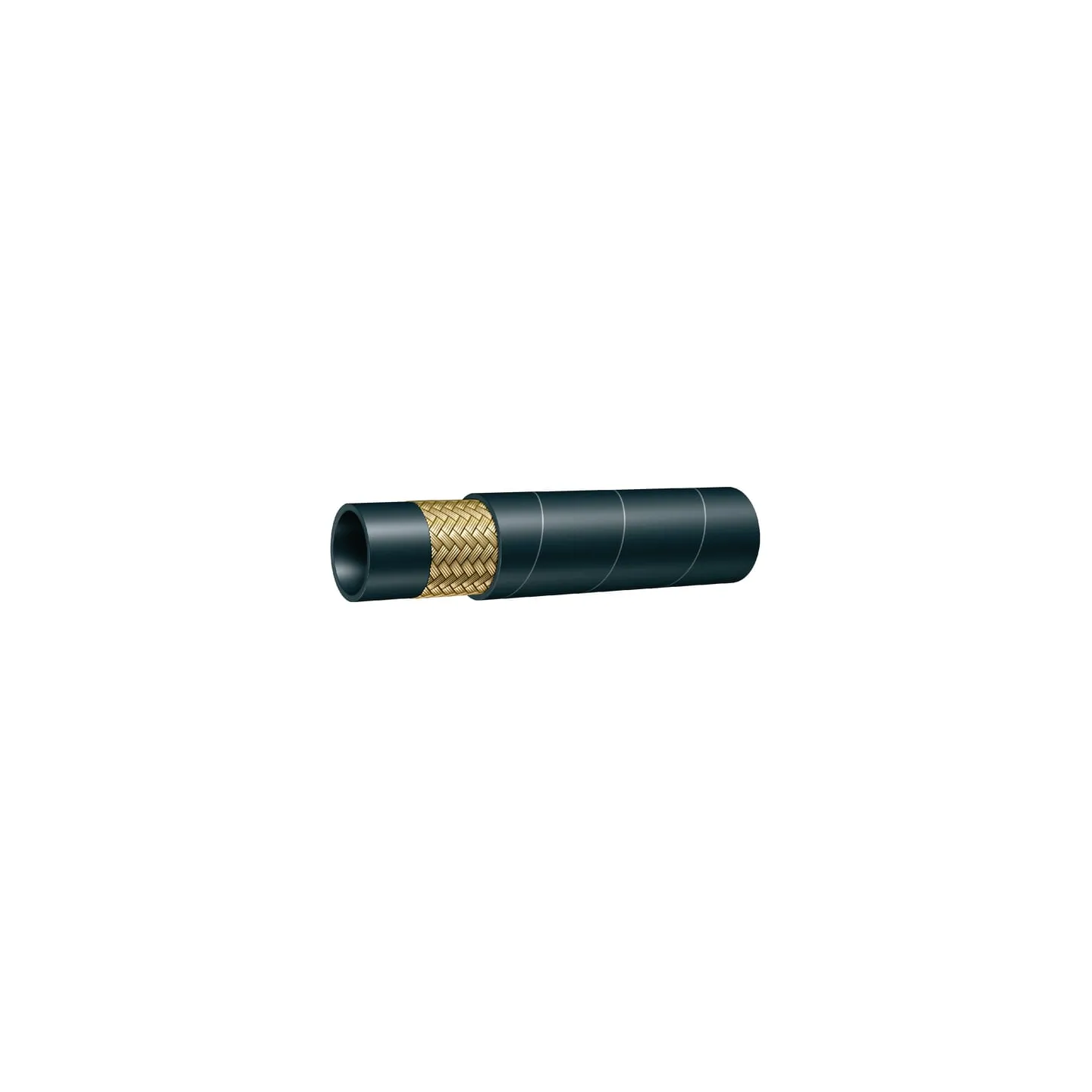

Hydraulic hose EN853-1SN-DN08 NSTHF8 Alfagomma NS8 NST8
search
  • Hydraulic hose EN853-1SN-DN08 NSTHF8 Alfagomma NS8 NST8

Hydraulic hose EN853-1SN-DN08 NSTHF8 NS8 NST8

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€5.93
Tax included
4-5 Working days
Hydraulic hose EN853-1SN-DN08 NSTHF8 Alfagomma NS8 NST8
IN WAREHOUSE

88882

  • Brand
    Alfagomma
  • Reference
    NSTHF8
  • In stock
    5 Items
  • Condition
    New
  • CODE
    NS8 NST8
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
NSTHF8
EAN
Unit
Metre
Qty. Rounding
0.01
Pros
  • Eco-friendly production
  • Fewer harmful emissions released during cutting
Product details
  • Halogen-free rubber surface
  • Durable outer coating resistant to ozone and oil
  • Can be ordered by the metre
  • Everything up to DN 16 is available on 25-metre and 50-metre reels
  • The length of a roll of hose that is not reeled is not fixed
  • Mineral oil-based and glycol-based fluids
  • Vegetable and mineral lubricants
  • Crude oils, heating oil, coolant, compressed air
Long description
  • Application:
  • Gardening machines
  • Agricultural equipment
  • Mineral oil-based and glycol-based fluids
  • Vegetable and mineral lubricants
  • Crude oils, heating oil, coolant, compressed air
  • Benefits:
  • Eco-friendly production
  • Details:
  • Halogen-free rubber surface
  • Properties:
  • Durable outer coating resistant to ozone and oil
  • Fewer harmful emissions released during cutting
  • Technical information:
  • Can be ordered by the metre
  • All types up to and including DN 16 can also be ordered on 25 m and 50 m reels
Hose inside diameter
5/16 Inch
Hose inside diameter
7.9 mm
Max working pressure
215 BAR
Material inside
Synthetic rubber
Bend radius
115 mm
Weight
0.25 kg/m
Type
Hydraulic high pressure hose
DN
8 mm
Hose outside diameter
14.7 mm
Burst pressure
860 BAR
Medium
Hydraulic oil
Max working temperature
100 °C
Min working temperature
-40 °C
Material outside
Synthetic rubber
Reinforcement type
Braid
Reinforcement number of plies
1
Reinforcement material
Steel
Number of plies
1
EN standard
853 1SN
Approval
  • DNV
  • ABS
  • GL
  • BV
  • NKK
  • RINA
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
