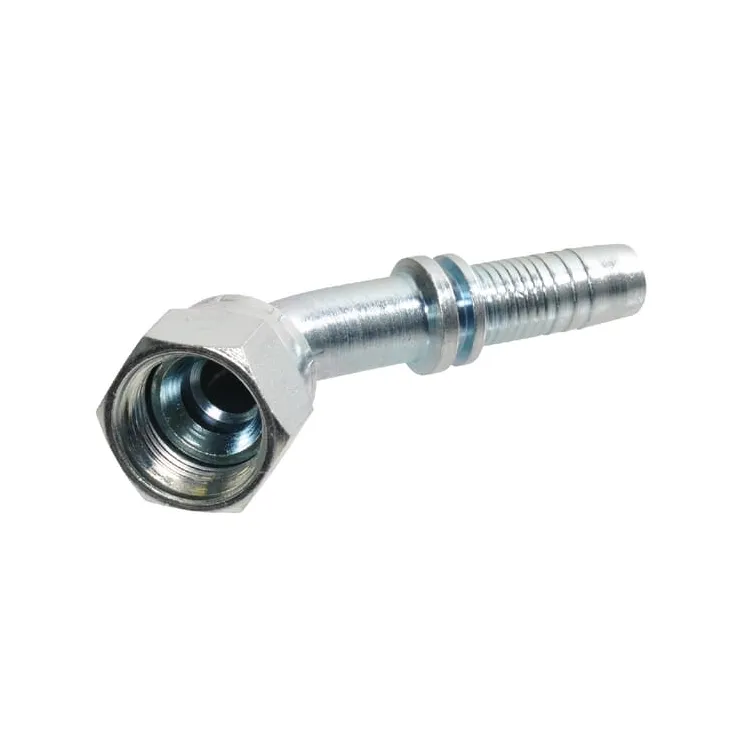

Insert DN13-3/4-UNF-45° PA131245

Name: Insert DN13-3/4-UNF-45° PA131245
Brand: Alfagomma
SKU: PA131245
Price: 5.51 EUR
Availability: InStock

Payment options

€5.51

Tax included

4-5 Working days

Insert DN13-3/4-UNF-45° PA131245 Alfagomma

IN WAREHOUSE

ID: 88888

Description

Part number	PA131245
EAN
Unit	Each
Product details	Cone, metal on metal seal - Flared fittings
Surface treatment	Zinc-plated White passivated
Angle	45 °
Cone angle	37 °
DConnection 2, centre to end distance	15 mm
Connection 2, diameter	1/2 Inch
Connection 2, diameter	13 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	51.6 mm
Connection no 1 diameter	3/4 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
CH1Connection no 1 wrench size	25.0 mm
Material	Steel
Original number equivalent	H1222541-08080M
Shape	Elbow - 2 connection sides
