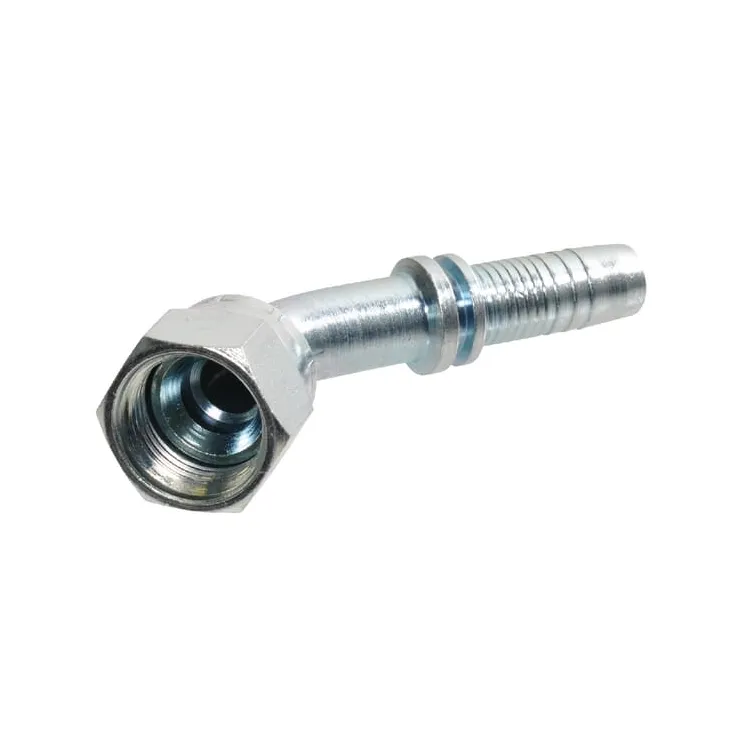

Insert DN08-9/16-UNF-45° PA8945

Name: Insert DN08-9/16-UNF-45° PA8945
Brand: Alfagomma
SKU: PA8945
Price: 5.01 EUR
Availability: InStock

Payment options

€5.01

Tax included

4-5 Working days

Insert DN08-9/16-UNF-45° PA8945 Alfagomma

IN WAREHOUSE

ID: 88926

Description

Part number	PA8945
EAN
Unit	Each
Product details	Cone, metal on metal seal - Flared fittings
Surface treatment	Zinc-plated White passivated
Angle	45 °
Cone angle	37 °
DConnection 2, centre to end distance	12 mm
Connection 2, diameter	5/16 Inch
Connection 2, diameter	8 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	42.8 mm
Connection no 1 diameter	9/16 Inch
Connection no 1 thread type	UNF
Connection no 1 type code	DKJ
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
CH1Connection no 1 wrench size	17.0 mm
Material	Steel
Original number equivalent	H122254105060M
Shape	Elbow - 2 connection sides
