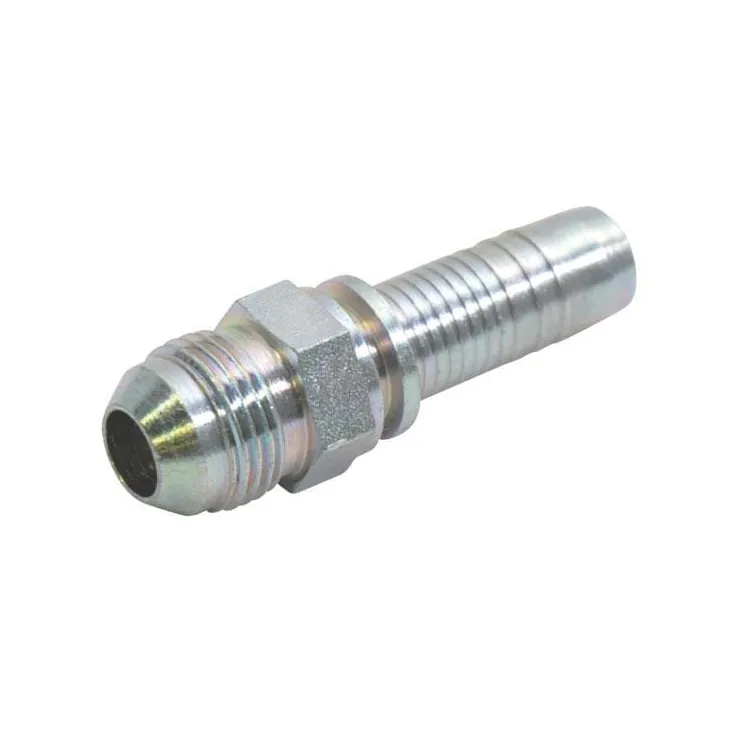

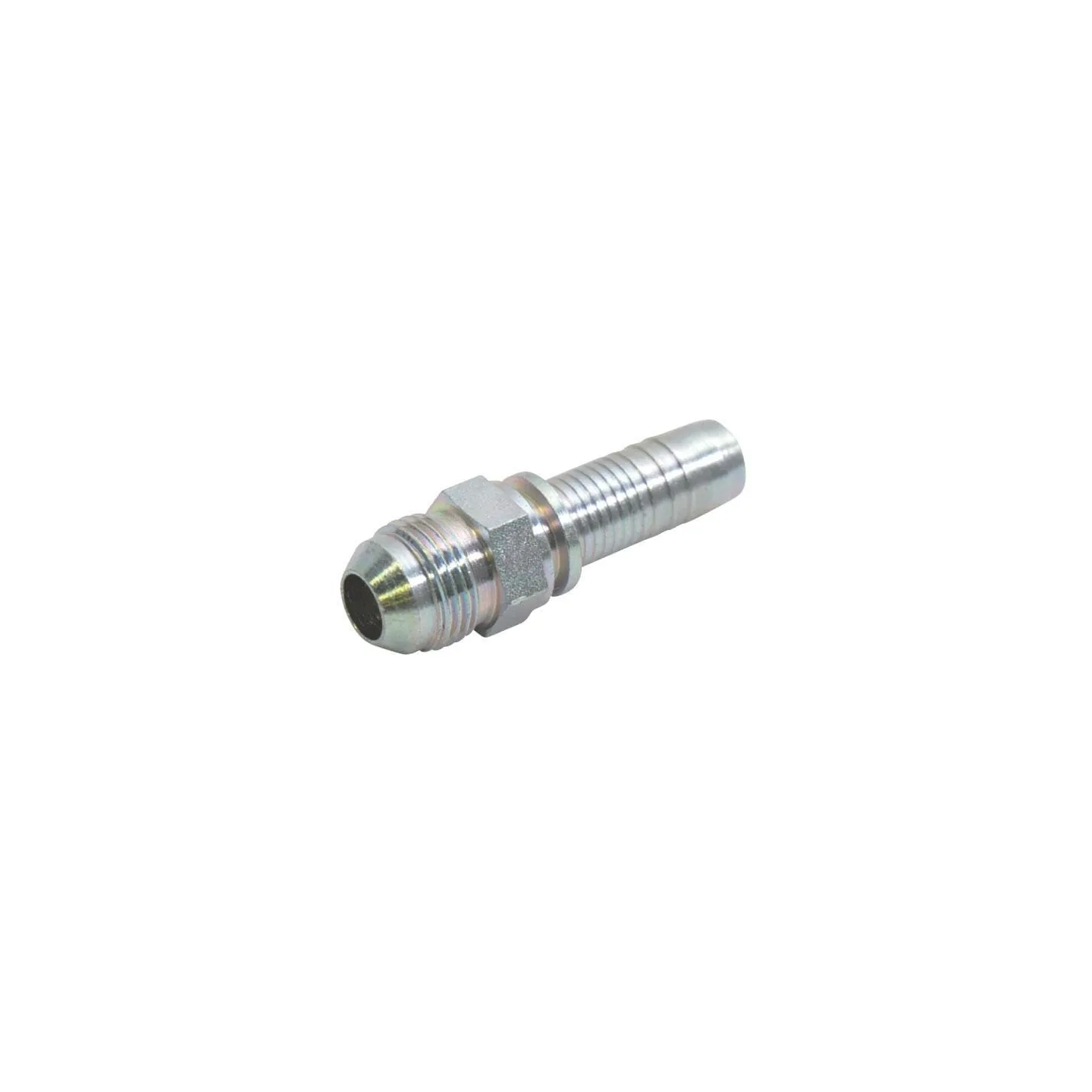

Insert DN08-3/4 UNF PC812

Name: Insert DN08-3/4 UNF PC812
Brand: Alfagomma
SKU: PC812
Price: 8.77 EUR
Availability: InStock

Payment options

€8.77

Tax included

4-5 Working days

Insert DN08-3/4 UNF PC812 Alfagomma

IN WAREHOUSE

ID: 88935

Description

Part number	PC812
EAN	8716106786183
Unit	Each
Product details	Cone, metal on metal seal
Surface treatment	Zinc-plated White passivated
Cone angle	37 °
Connection 2, diameter	5/16 Inch
Connection 2, diameter	8 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	29.8 mm
Connection no 1 thread diameter	3/4 Inch
Connection no 1 thread type	UNF
Connection no 1 threads per inch	16
Connection no 1 type code	AGJ
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
CHConnection no 1 wrench size	19.0 mm
Material	Steel
Shape	Straight - 2 connection sides
