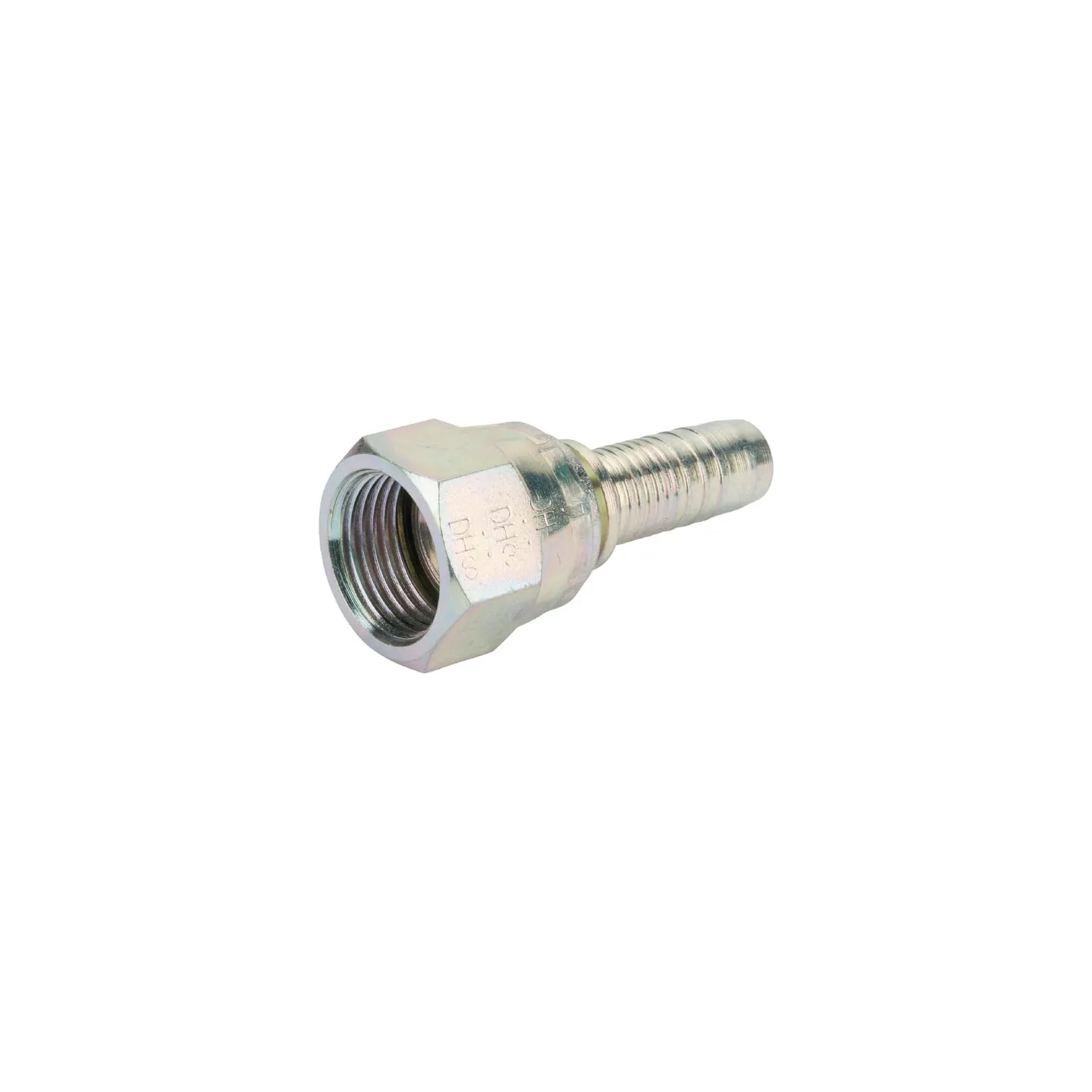

Insert DN13-7/8 UNF PA1314 Alfagomma
search
  • Insert DN13-7/8 UNF PA1314 Alfagomma

Insert DN13-7/8 UNF PA1314

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€3.13
Tax included
On Request
Insert DN13-7/8 UNF PA1314 Alfagomma
ON REQUEST

88997

Part number
PA1314
EAN8716106441099
Unit
Each
Product details
  • Cone, metal on metal seal
  • Flared fittings
Long description
  • Application range:
  • Flanged screw fitting
  • Properties:
  • Cone, metal on metal seal
  • Technical information:
  • Available in stainless steel on request
Connection no 1 type
  • Swivel nut
  • Cone
Surface treatment
  • Zinc-plated
  • White passivated
Cone angle
37 °
Connection 2, diameter
1/2 Inch
Connection 2, diameter
13 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
CConnection centre to insert distance
19.6 mm
F1Connection no 1 thread diameter
7/8 Inch
Connection no 1 thread type
UNF
Connection no 1 type code
DKJ
Connection no 1 type - male/female
Female
CH1Connection no 1 wrench size
27.0 mm
Material
Steel
Shape
Straight - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    PA1314
  • Condition
    New
  • EAN
    8716106441099
