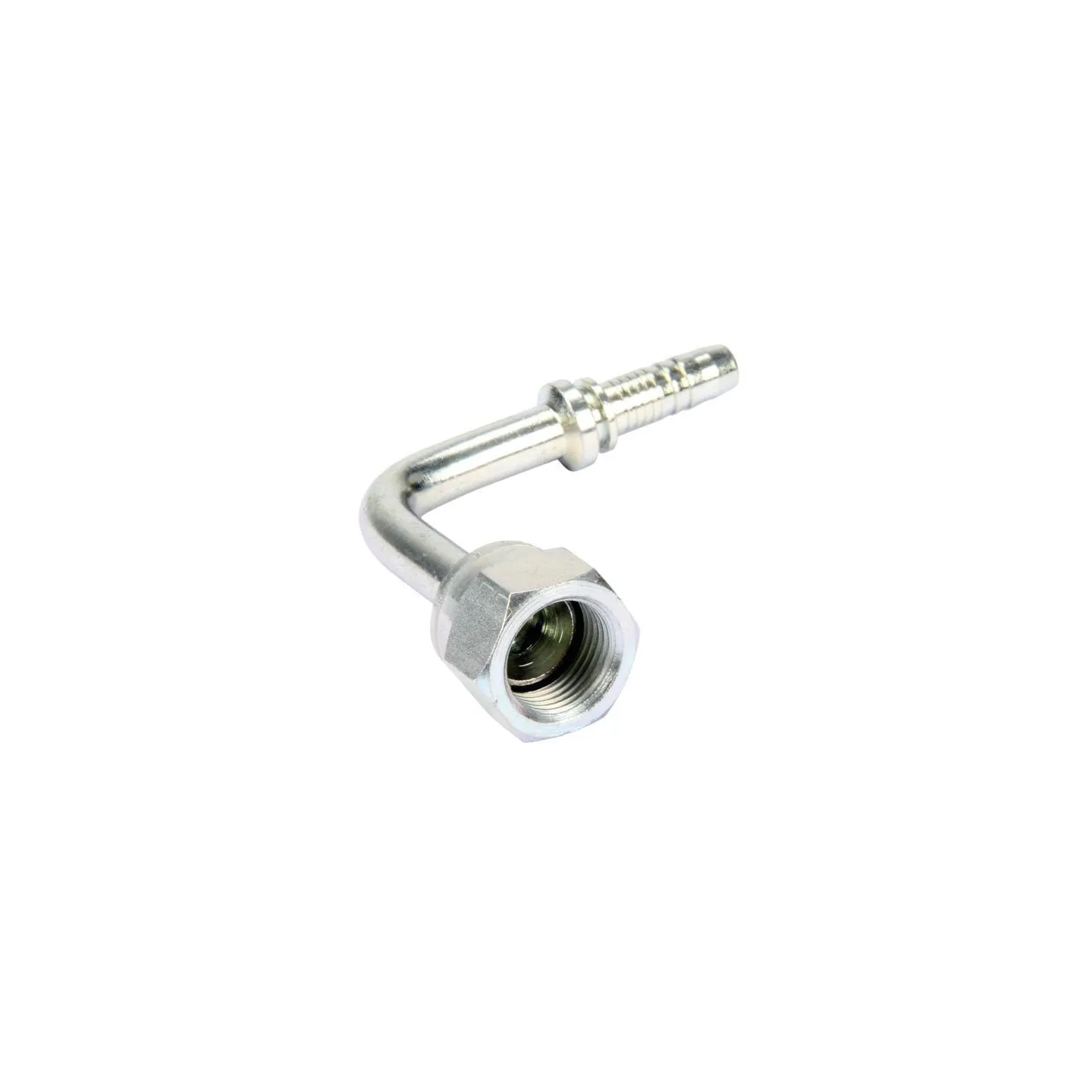

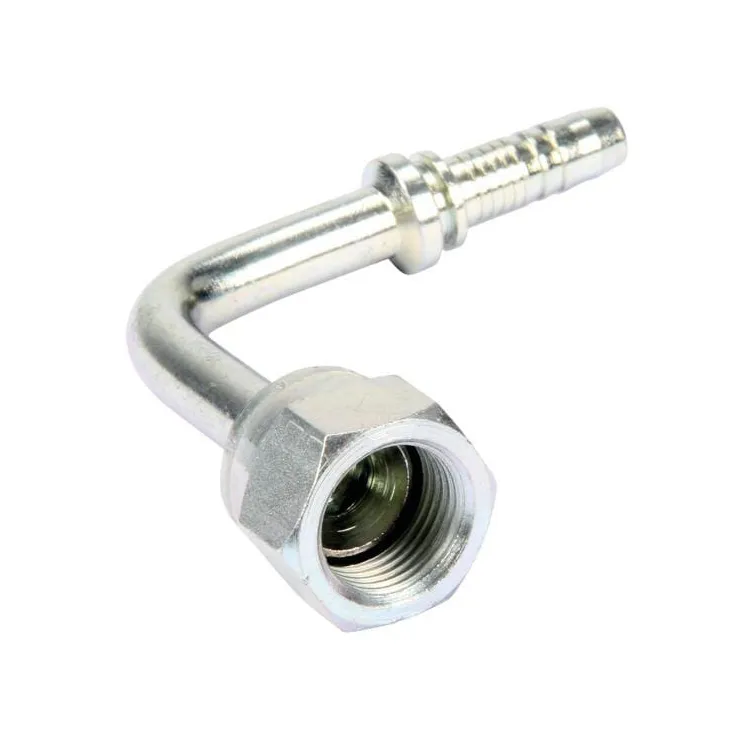

| Part number | PA252190L | |
|---|---|---|
| EAN | ||
| Unit | Each | |
| Pros | Possible to install hoses on top of each other | |
| Product details |
| |
| Benefits | Hoses can be installed over one another | |
| Long description |
| |
| Surface treatment |
| |
| Angle | 90 ° | |
| Cone angle | 37 ° | |
| DConnection 2, centre to end distance | 114 mm | |
| Connection 2, diameter | 1 Inch | |
| Connection 2, diameter | 25 mm | |
| Connection 2, type | Hose end | |
| Connection 2, type - male/female | Male | |
| CConnection centre to insert distance | 72.4 mm | |
| F1Connection no 1 thread diameter | 1-5/16 Inch | |
| Connection no 1 thread type | UNF | |
| Connection no 1 type code | DKJ | |
| Connection no 1 type - male/female | Female | |
| Connection no 1 type | Thread | |
| CH1Connection no 1 wrench size | 38.0 mm | |
| Material | Steel | |
| Original number equivalent | H122259116160L | |
| Shape | Elbow - 2 connection sides |
