Insert DN32-1 5/8-UNF-45° PA322645 Alfagomma B04010002020
search
  • Insert DN32-1 5/8-UNF-45° PA322645 Alfagomma B04010002020

Insert DN32-1 5/8-UNF-45° PA322645 B04010002020

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€37.43
Tax included
On Request

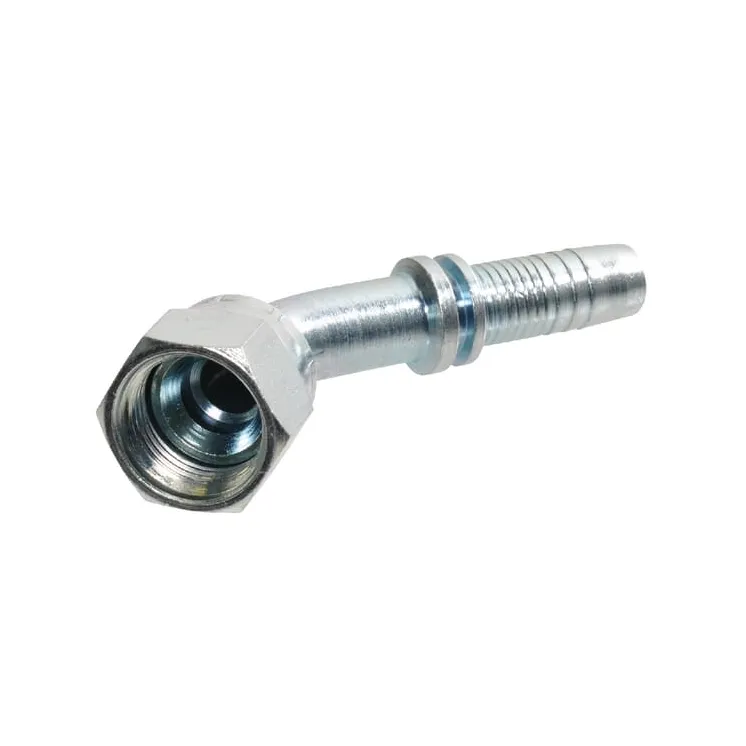

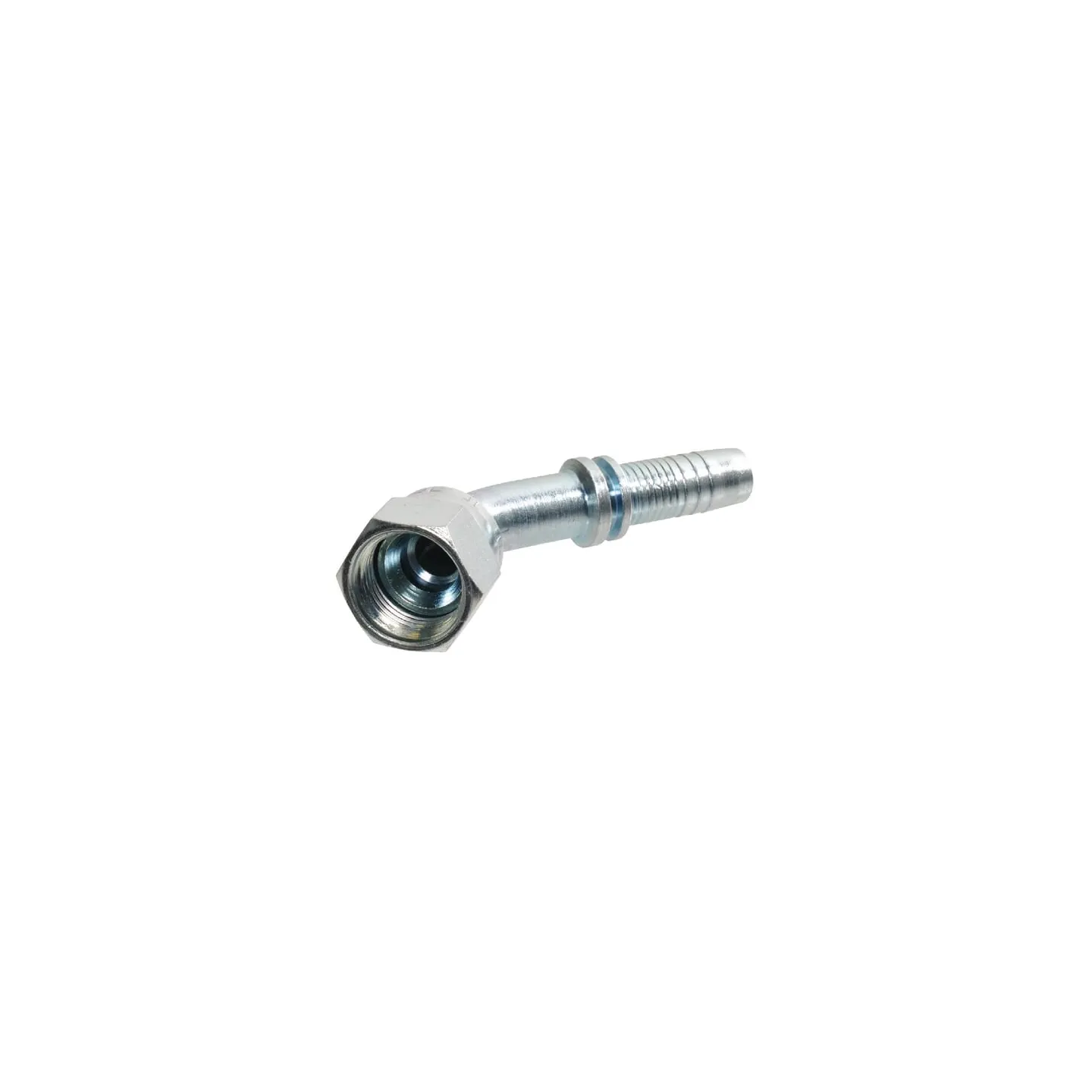

Insert DN32-1 5/8-UNF-45° PA322645 Alfagomma B04010002020
ON REQUEST

89108

Part number
PA322645
EAN
Unit
Each
Product details
Cone, metal on metal seal - Flared fittings
Surface treatment
  • Zinc-plated
  • White passivated
Angle
45 °
Cone angle
37 °
DConnection 2, centre to end distance
37 mm
Connection 2, diameter
1-1/4 Inch
Connection 2, diameter
32 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
CConnection centre to insert distance
97.1 mm
Connection no 1 diameter
1-5/8 Inch
Connection no 1 thread type
UNF
Connection no 1 type code
DKJ
Connection no 1 type - male/female
Female
Connection no 1 type
Thread
CH1Connection no 1 wrench size
50.0 mm
Material
Steel
Original number equivalent
H1222542-20200M
Shape
Elbow - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    PA322645
  • Condition
    New
  • CODE
    B04010002020
