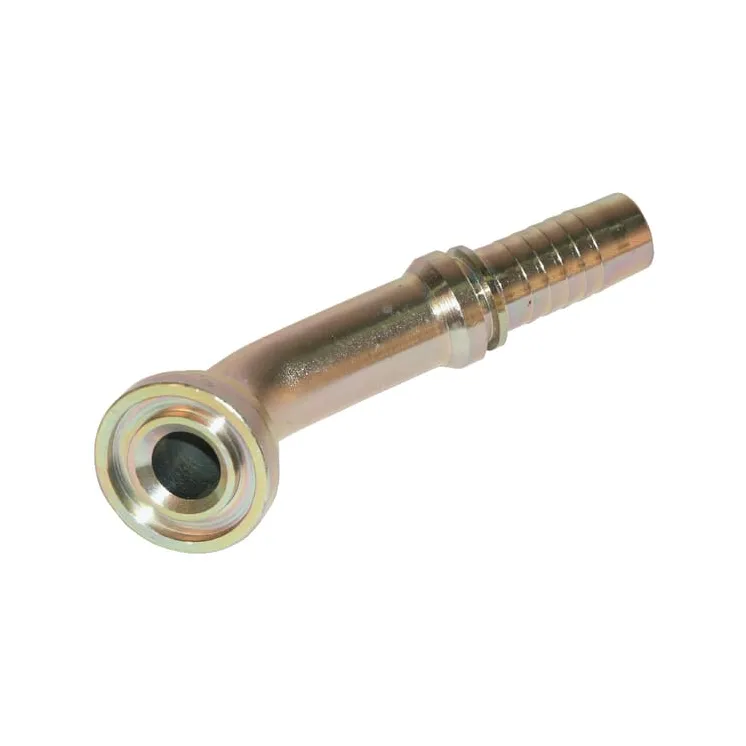

Insert with flange DN40-60.3mm-30° PFL402430

Name: Insert with flange DN40-60.3mm-30° PFL402430
Brand: Alfagomma
SKU: PFL402430
Price: 79.84 EUR
Availability: InStock

Payment options

€79.84

Tax included

4-5 Working days

Insert with flange DN40-60.3mm-30° PFL402430 Alfagomma

IN WAREHOUSE

ID: 89237

Description

Part number	PFL402430
EAN
Unit	Each
Product details	OVP-ring or O-ring seal - 4 SP hose Excavation machines Heavy-duty industry
Includes	Insert Without OVP-ring or O-ring
Long description	Application range: 4SP hose Earth-moving machinery Heavy industry Consists of: Swage coupling Without OVP ring or O-ring Properties: Seal with OVP ring or O ring
Surface treatment	Zinc-plated White passivated
Angle	30 °
HConnection 2, centre to end distance	23 mm
Connection 2, diameter	1-1/2 Inch
Connection 2, diameter	40 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	136 mm
Connection no 1 diameter	1-1/2 Inch
DConnection no 1 diameter	60.3 mm
Connection no 1 type code	SFL
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
Flange outside diameter	60.3 mm
Flange standard pressure series	3000
Material	Steel
Original number equivalent	H1243330-242400
Shape	Elbow - 2 connection sides
