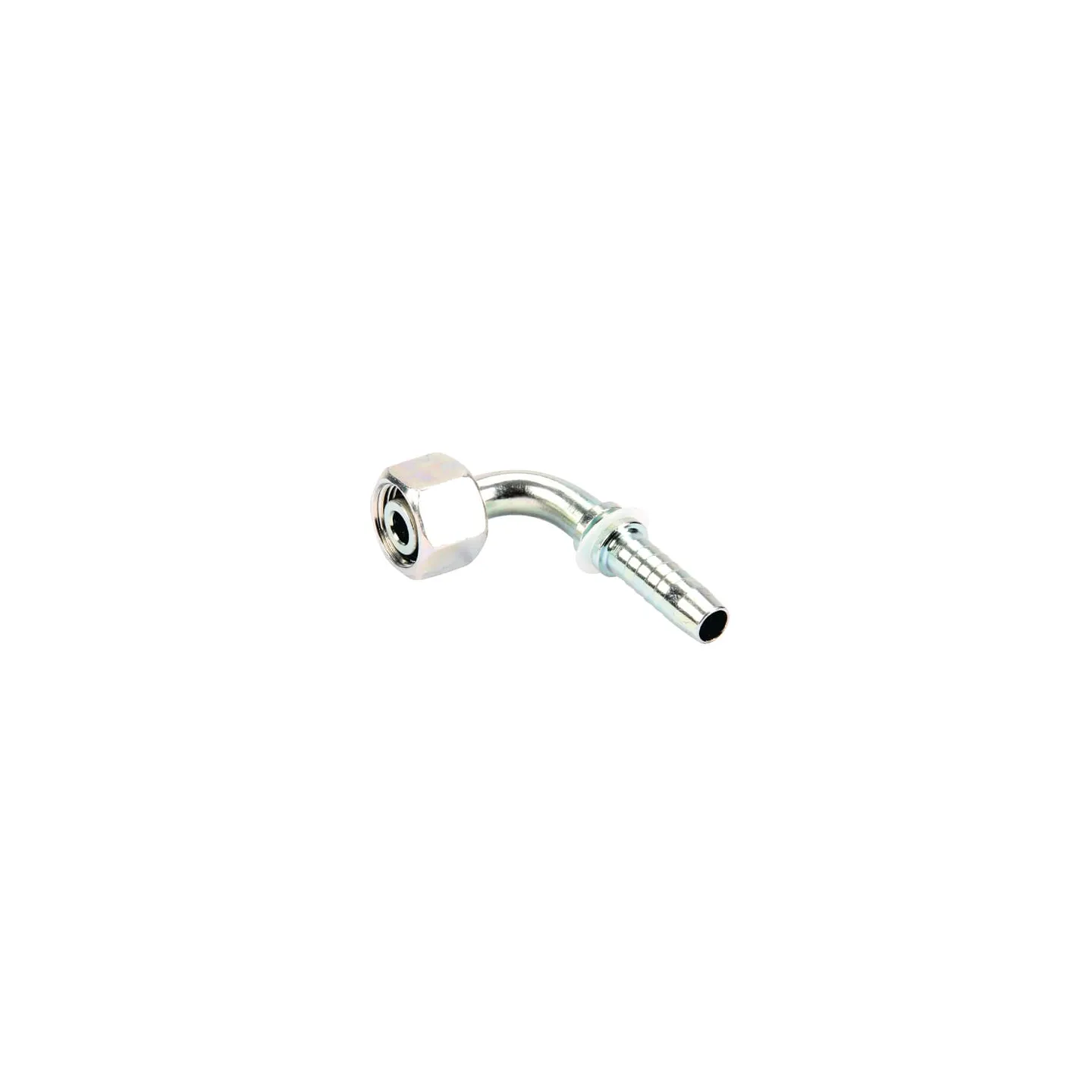

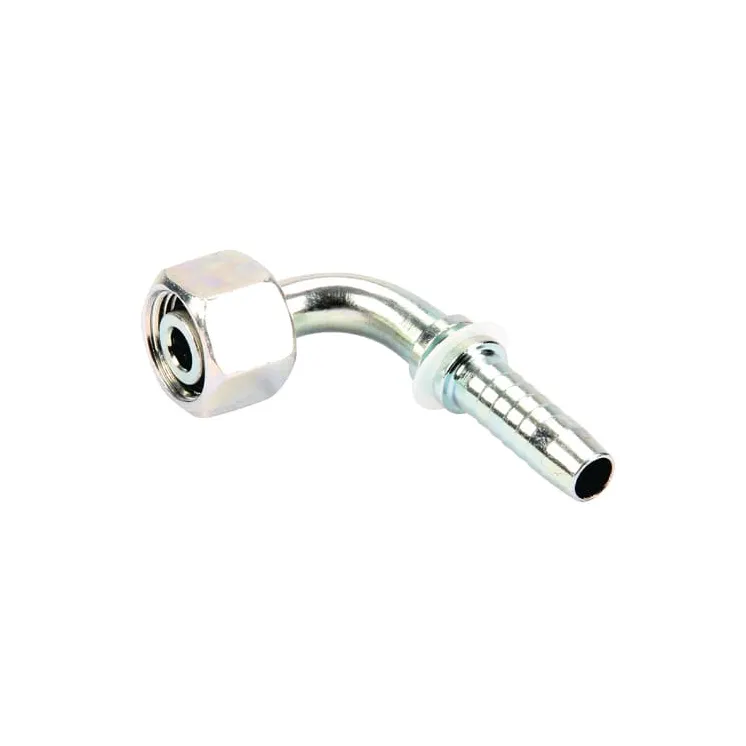

Insert DN20-M30x2.0-22L-90° PGLO203090

Name: Insert DN20-M30x2.0-22L-90° PGLO203090
Brand: Alfagomma
SKU: PGLO203090
Price: 9.61 EUR
Availability: InStock

Payment options

€9.61

Tax included

4-5 Working days

Insert DN20-M30x2.0-22L-90° PGLO203090 Alfagomma

IN WAREHOUSE

ID: 89296

Description

Part number	PGLO203090
EAN	8719493100938
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKOL
F1Connection no 1 thread diameter	M30
Connection no 1 thread pitch	2.00 mm
CH1Connection no 1 wrench size	36.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
DConnection 2, centre to end distance	59 mm
CConnection centre to insert distance	56 mm
Angle	90 °
Cone angle	24 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	22L
Original number equivalent	H1221593-123000
