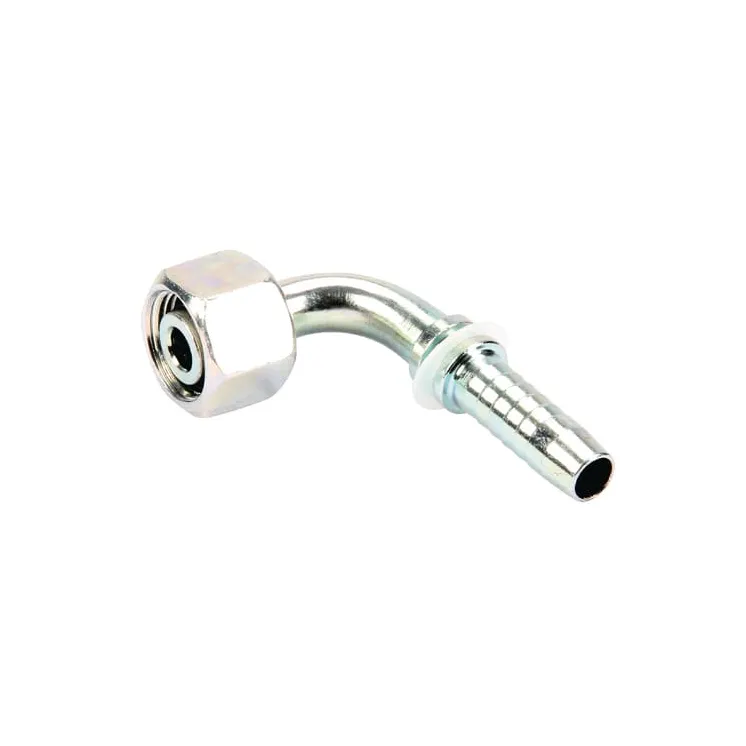

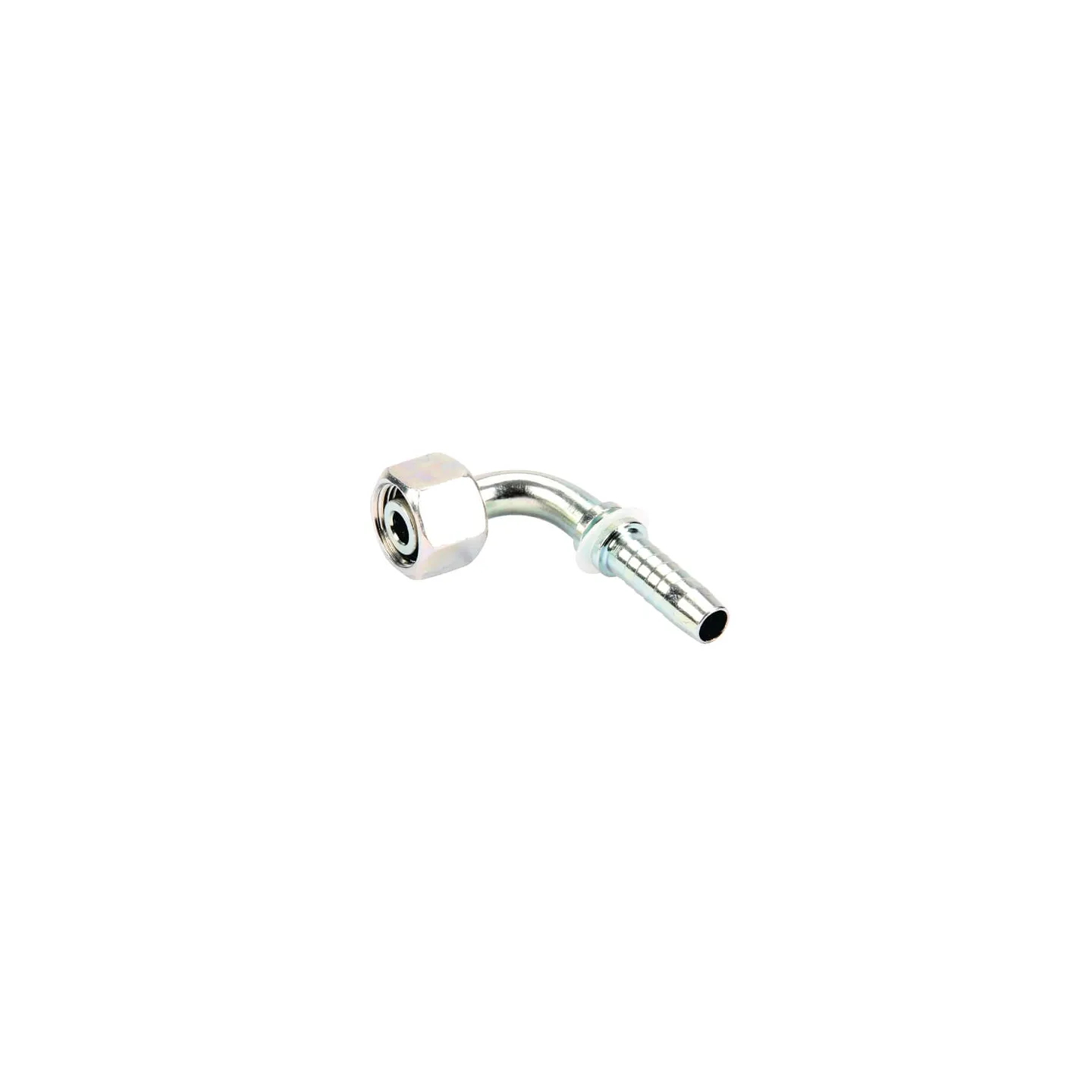

Insert DN20-M26x1.5-18L-90° PGLO202690

Name: Insert DN20-M26x1.5-18L-90° PGLO202690
Brand: Alfagomma
SKU: PGLO202690
Price: 18.23 EUR
Availability: InStock

Payment options

€18.23

Tax included

4-5 Working days

Insert DN20-M26x1.5-18L-90° PGLO202690 Alfagomma

IN WAREHOUSE

ID: 89325

Description

Part number	PGLO202690
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKOL
F1Connection no 1 thread diameter	M26
Connection no 1 thread pitch	1.50 mm
CH1Connection no 1 wrench size	32.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
DConnection 2, centre to end distance	54 mm
CConnection centre to insert distance	52.1 mm
Angle	90 °
Cone angle	24 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	18L
