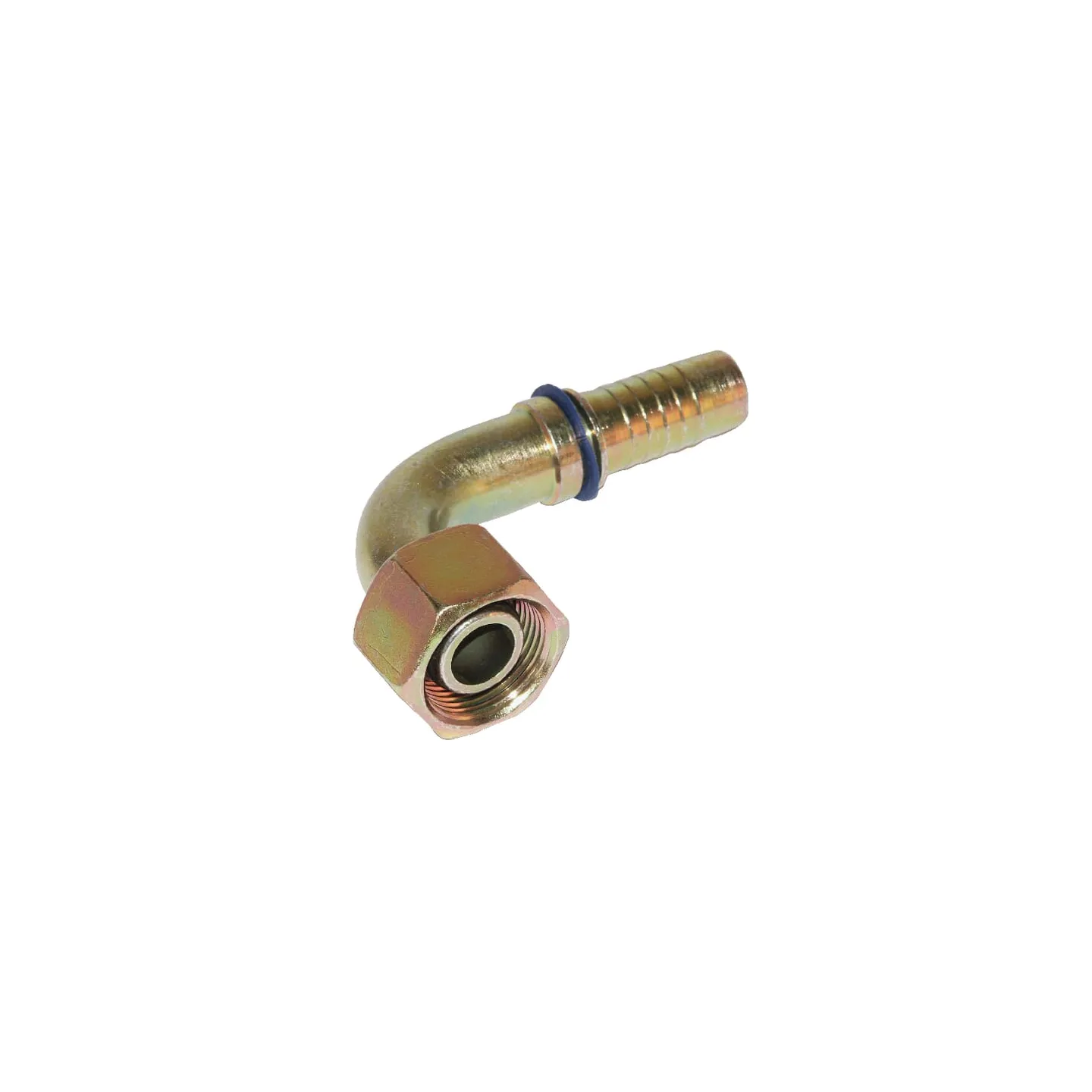

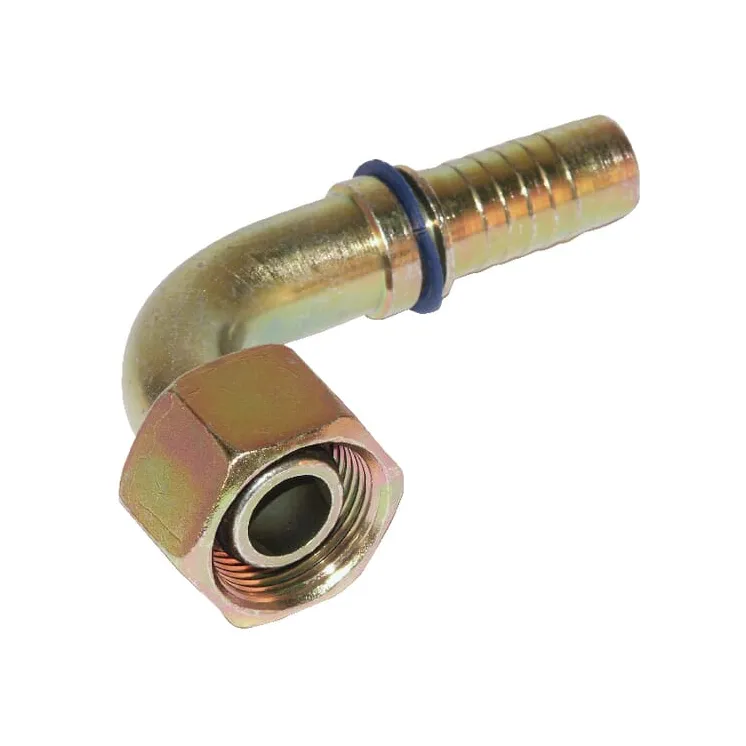

Insert DN16-M30x2,0-20S-90° PGSO163090

Name: Insert DN16-M30x2,0-20S-90° PGSO163090
Brand: Alfagomma
SKU: PGSO163090
Price: 9.2 EUR
Availability: InStock

Payment options

€9.20

Tax included

4-5 Working days

Insert DN16-M30x2,0-20S-90° PGSO163090 Alfagomma

IN WAREHOUSE

ID: 89343

Description

Part number	PGSO163090
EAN	8716106787562
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Long description	Application range: S-series cutting ring adapter Consists of: Swage coupling O-ring Properties: Cone, sealing cone with O-ring seal Technical information: Available in s
Connection no 1 type	Swivel nut O-ring cone
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	24 °
DConnection 2, centre to end distance	55 mm
Connection 2, diameter	5/8 Inch
Connection 2, diameter	16 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 center to end distance	47.9 mm
Connection no 1 thread pitch	2.00 mm
F1Connection no 1 thread diameter	M30
Connection no 1 thread type	Metric
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
CH1Connection no 1 wrench size	36.0 mm
Material	Steel
Original number equivalent	H1221693-103000
Series	20S
Shape	Elbow - 2 connection sides
