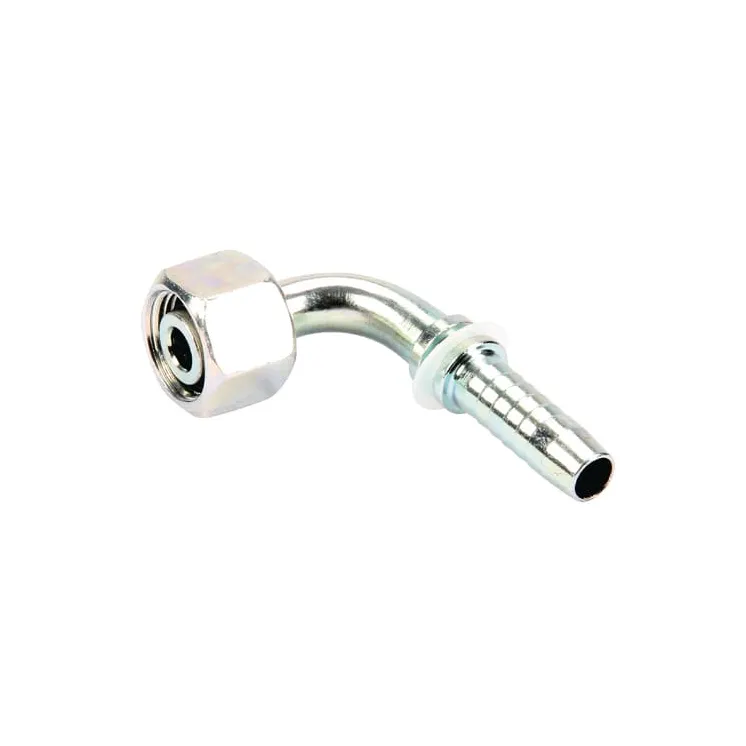

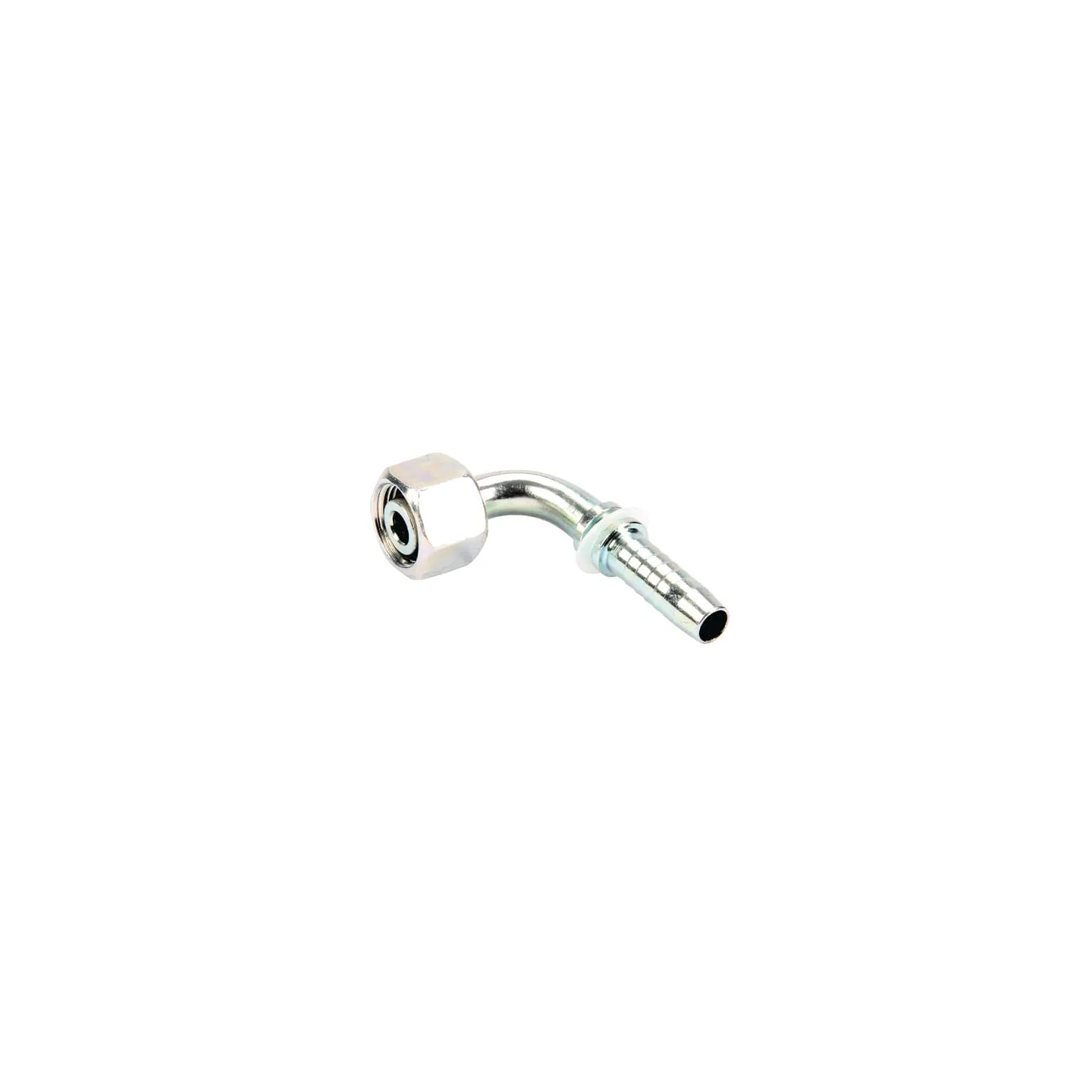

Insert DN06-M18x1.5-12L-90° PGLO61890

Name: Insert DN06-M18x1.5-12L-90° PGLO61890
Brand: Alfagomma
SKU: PGLO61890
Price: 10.85 EUR
Availability: InStock

Payment options

€10.85

Tax included

4-5 Working days

Insert DN06-M18x1.5-12L-90° PGLO61890 Alfagomma

IN WAREHOUSE

ID: 89358

Description

Part number	PGLO61890
EAN	8716106787760
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKOL
F1Connection no 1 thread diameter	M18
Connection no 1 thread pitch	1.50 mm
CH1Connection no 1 wrench size	22.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
DConnection 2, centre to end distance	35 mm
CConnection centre to insert distance	28 mm
Angle	90 °
Cone angle	24 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	12L
Original number equivalent	H1221593-041800
