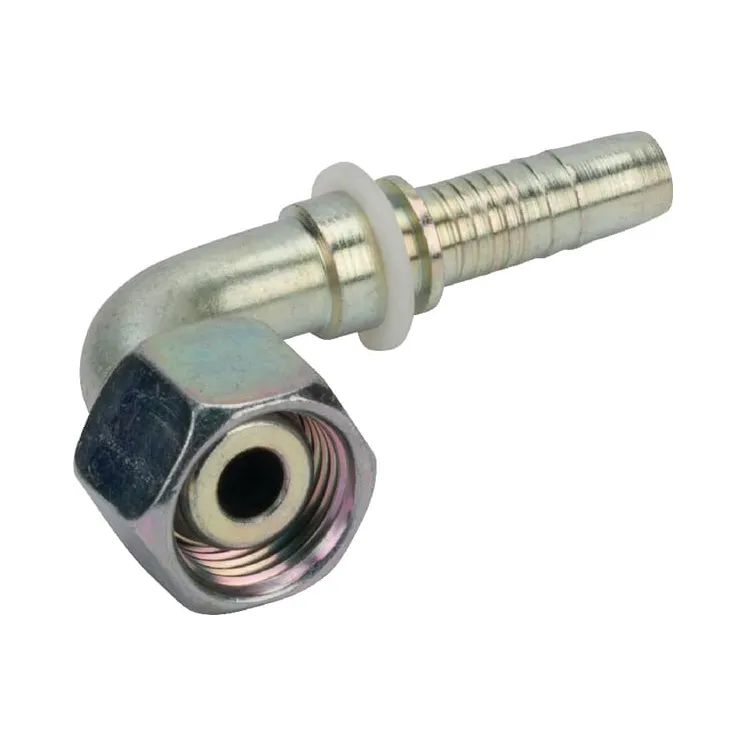

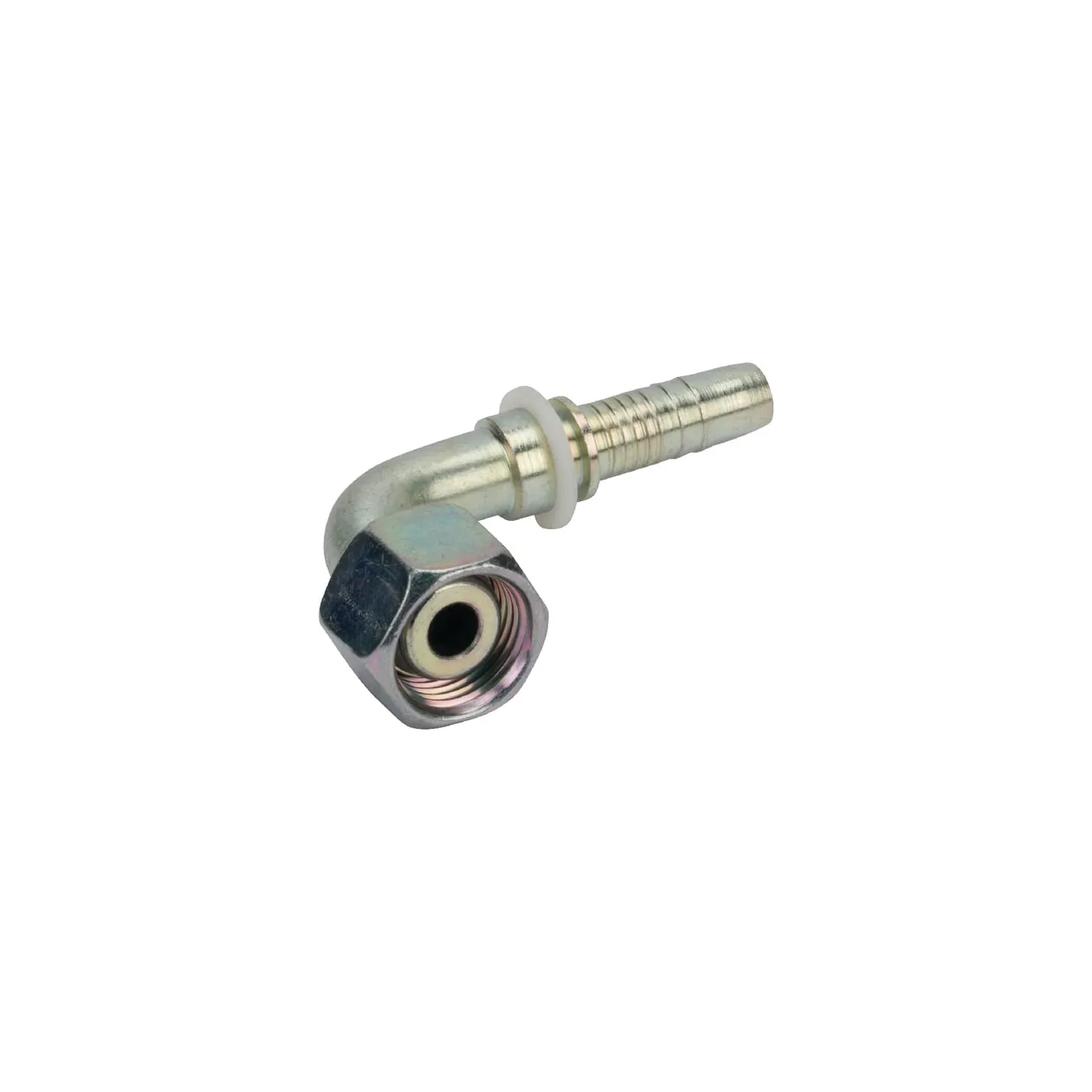

Insert DN10-M18x1,5-12L-90° PGL101890 Alfagomma DKM101890 PGL101890DB

Insert DN10-M18x1,5-12L-90° PGL101890 DKM101890 PGL101890DB

Name: Insert DN10-M18x1,5-12L-90° PGL101890 DKM101890 PGL101890DB
Brand: Alfagomma
SKU: PGL101890
Price: 3.67 EUR
Availability: InStock

Payment options

€3.67

Tax included

4-5 Working days

Insert DN10-M18x1,5-12L-90° PGL101890 Alfagomma DKM101890 PGL101890DB

IN WAREHOUSE

ID: 89360

Description

Part number	PGL101890
EAN
Unit	Each
Product details	Cone, metal on metal seal Cutting ring adaptors L series 24° cone Adaptors with 60° cone Do not use for 4-layer hose HDR (4SP)
Long description	Application range: Cutting ring adapter series L, 24° cone Adapter with 60° cone Properties: Cone, metal on metal seal Technical information: Do not use for HDR hoses with 4 inserts (4SP)
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKM
Connection no 1 length	30 mm
Connection no 1 thread diameter	M18
F1Connection no 1 thread pitch	1.50 mm
CH1Connection no 1 wrench size	22.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	3/8 Inch
Connection 2, diameter	10 mm
Angle	90 °
Cone angle	60 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	12L
