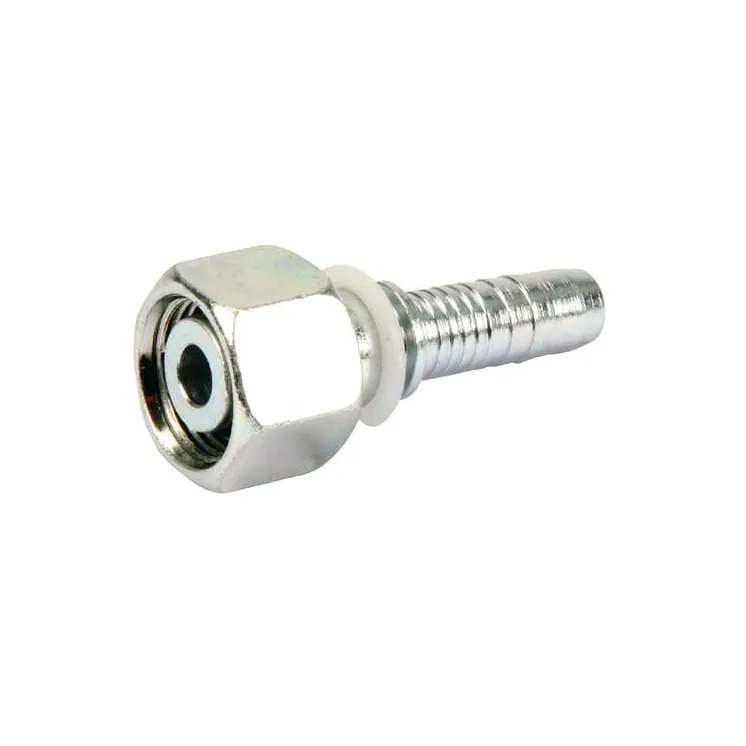

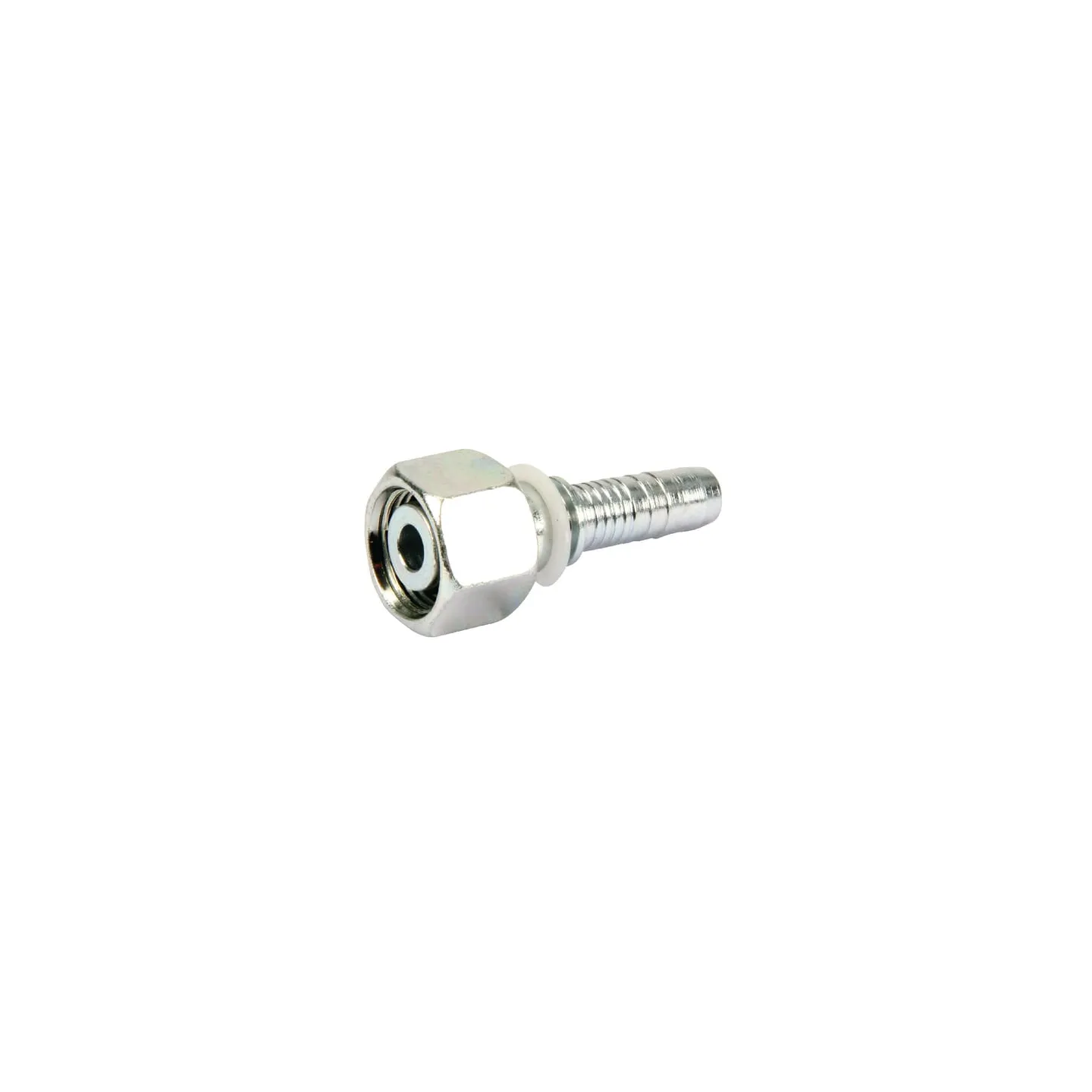

Insert DN13-M26x1.5-18L PGLO1326 PGLO1326DB

Name: Insert DN13-M26x1.5-18L PGLO1326 PGLO1326DB
Brand: Alfagomma
SKU: PGLO1326
Price: 5.61 EUR
Availability: InStock

Payment options

€5.61

Tax included

4-5 Working days

Insert DN13-M26x1.5-18L PGLO1326 Alfagomma PGLO1326DB

IN WAREHOUSE

ID: 89366

Description

Part number	PGLO1326
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Long description	Application range: L-series cutting ring adapter Consists of: Swage coupling O-ring Properties: Cone, sealing cone with O-ring seal Technical information: Available in s
Shape	Straight - 2 connection sides
Connection no 1 type	Swivel nut O-ring cone
Connection no 1 type - male/female	Female
CConnection no 1 length	29.2 mm
F1Connection no 1 thread diameter	M26
F1Connection no 1 thread pitch	1.50 mm
CH1Connection no 1 wrench size	32.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	1/2 Inch
Connection 2, diameter	13 mm
Cone angle	24 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	18L
