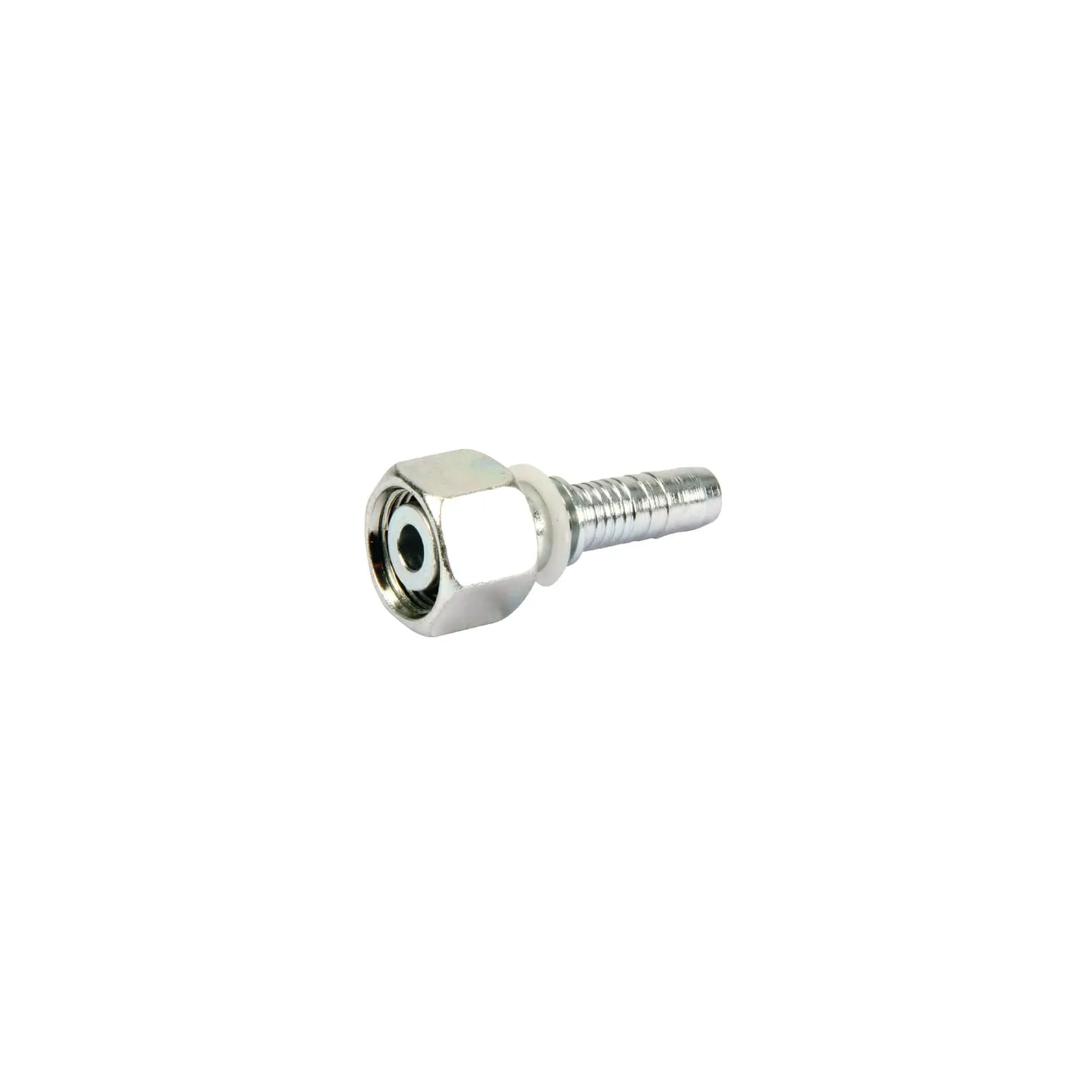

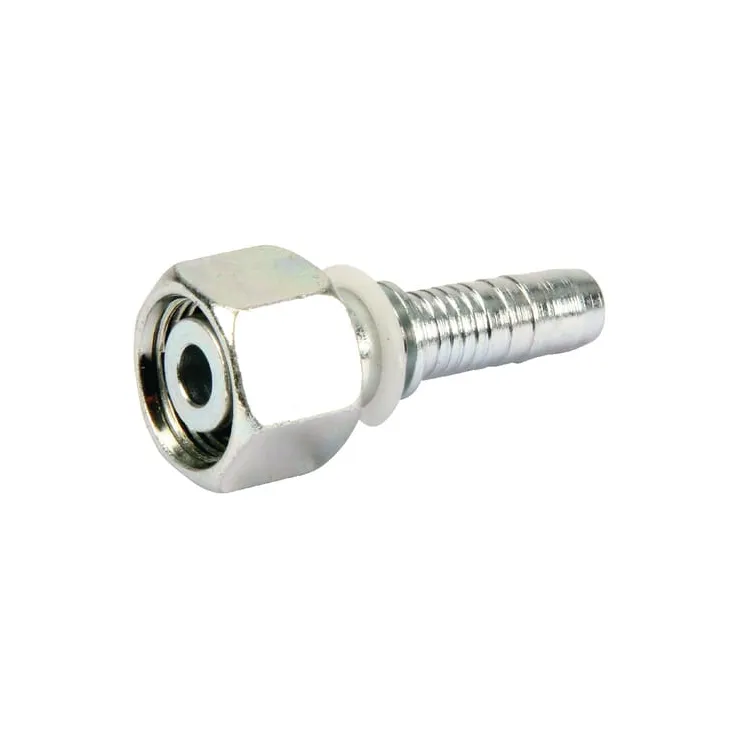

Insert DN13-M22x1.5-15L PGLO1322 PGLO1322DB VFR2273

Name: Insert DN13-M22x1.5-15L PGLO1322 PGLO1322DB VFR2273
Brand: Alfagomma
SKU: PGLO1322
Price: 2.32 EUR
Availability: InStock

Payment options

€2.32

Tax included

4-5 Working days

Insert DN13-M22x1.5-15L PGLO1322 Alfagomma PGLO1322DB VFR2273

IN WAREHOUSE

ID: 89386

Description

Part number	PGLO1322
EAN	8716106441419
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Long description	Application range: L-series cutting ring adapter Consists of: Swage coupling O-ring Properties: Cone, sealing cone with O-ring seal Technical information: Available in s
Shape	Straight - 2 connection sides
Connection no 1 type	Swivel nut O-ring cone
Connection no 1 type - male/female	Female
CConnection no 1 length	28.2 mm
Connection no 1 thread diameter	M22
Connection no 1 thread pitch	1.50 mm
HConnection no 1 wrench size	27.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	1/2 Inch
Connection 2, diameter	13 mm
Cone angle	24 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	15L
