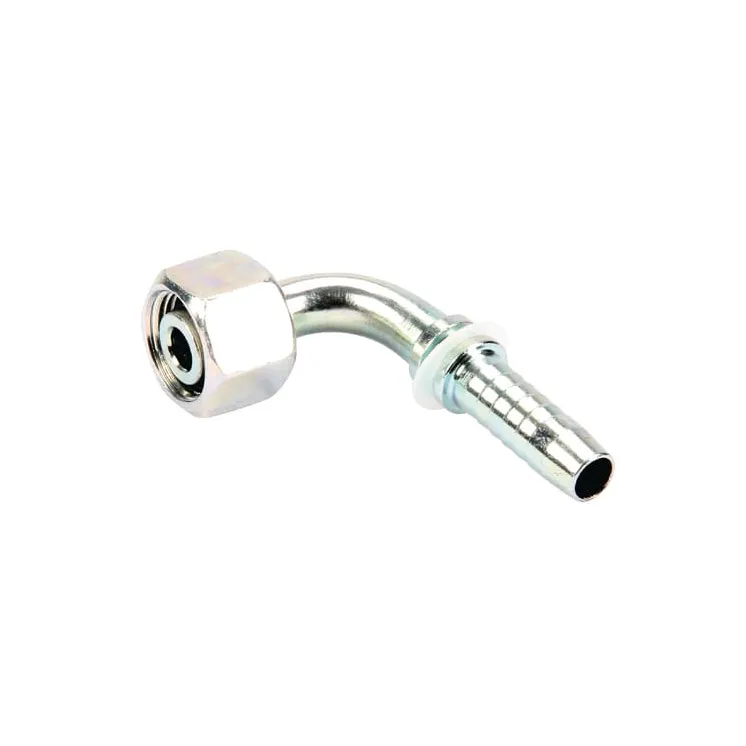

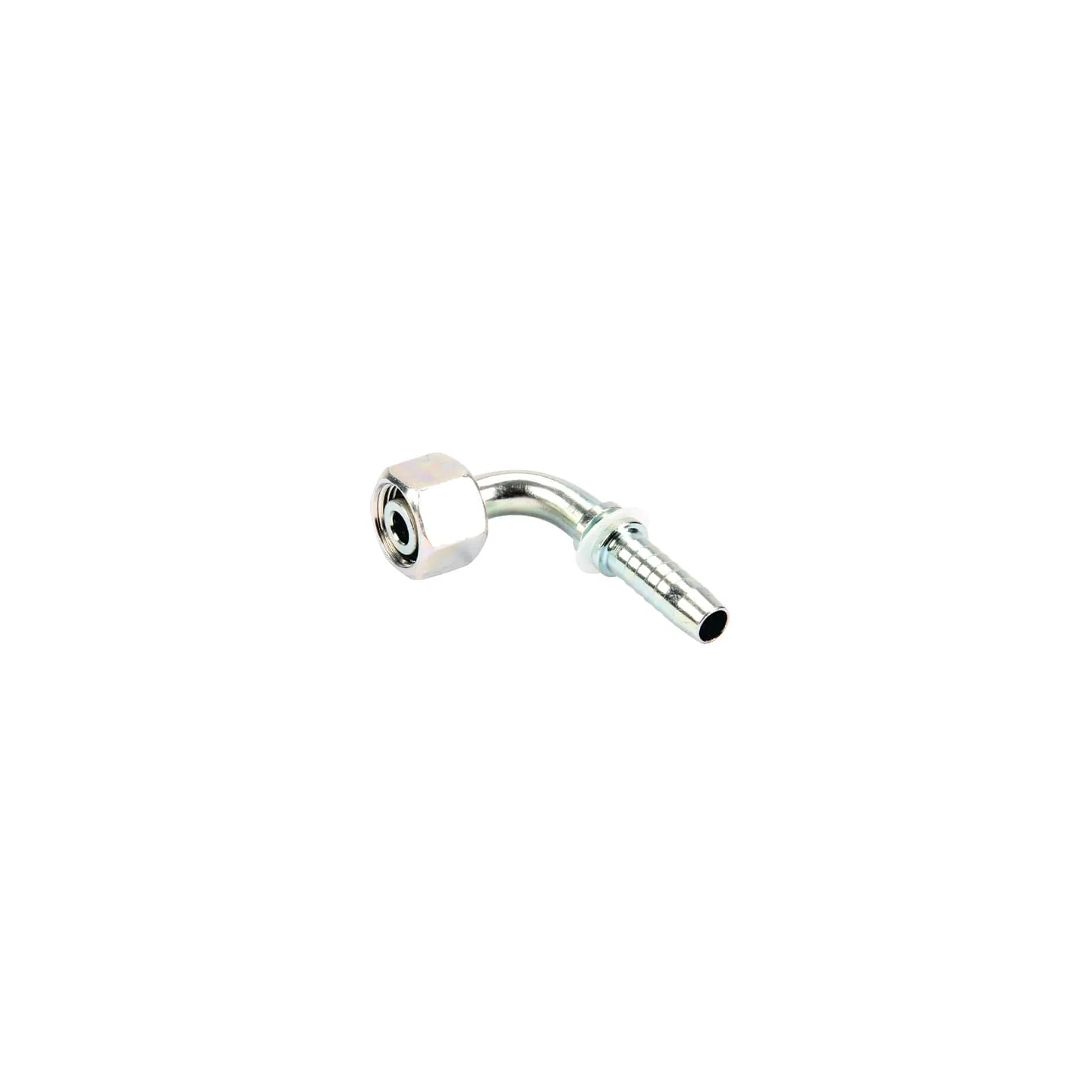

Insert DN10-M18x1.5-12L-90° PGLO101890 Alfagomma PGLO101890DB VFR2222

Insert DN10-M18x1.5-12L-90° PGLO101890 PGLO101890DB VFR2222

Name: Insert DN10-M18x1.5-12L-90° PGLO101890 PGLO101890DB VFR2222
Brand: Alfagomma
SKU: PGLO101890
Price: 3.1 EUR
Availability: InStock

Payment options

€3.10

Tax included

4-5 Working days

Insert DN10-M18x1.5-12L-90° PGLO101890 Alfagomma PGLO101890DB VFR2222

IN WAREHOUSE

ID: 89436

Description

Part number	PGLO101890
EAN	8716106787869
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Long description	Application range: L-series cutting ring adapter Consists of: Swage coupling O-ring Properties: Cone, sealing cone with O-ring seal Technical information: Available in s
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKOL
F1Connection no 1 thread diameter	M18
Connection no 1 thread pitch	1.50 mm
CH1Connection no 1 wrench size	22.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	3/8 Inch
Connection 2, diameter	10 mm
DConnection 2, centre to end distance	39 mm
CConnection centre to insert distance	37 mm
Angle	90 °
Cone angle	24 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	12L
Original number equivalent	H1221593-061800
