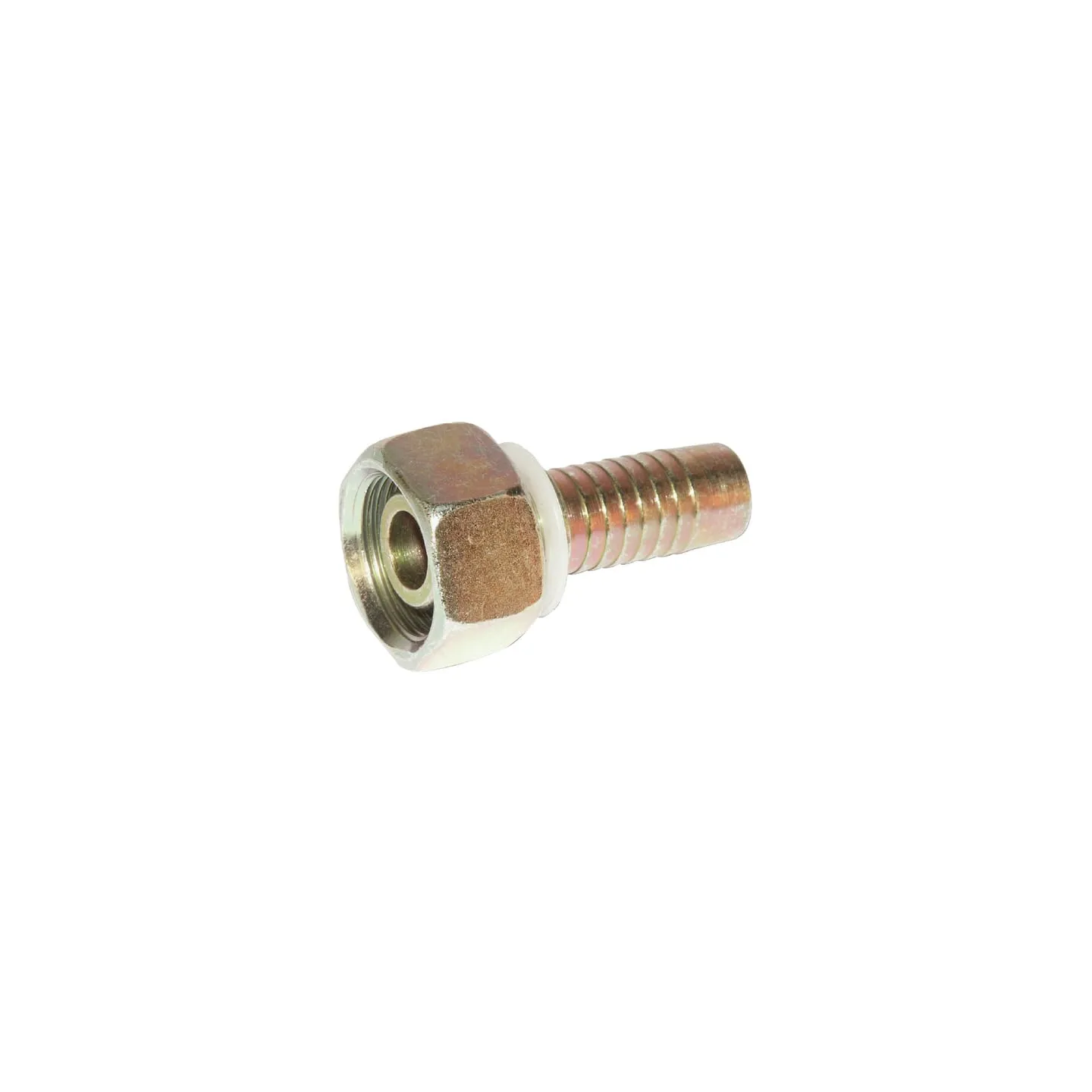

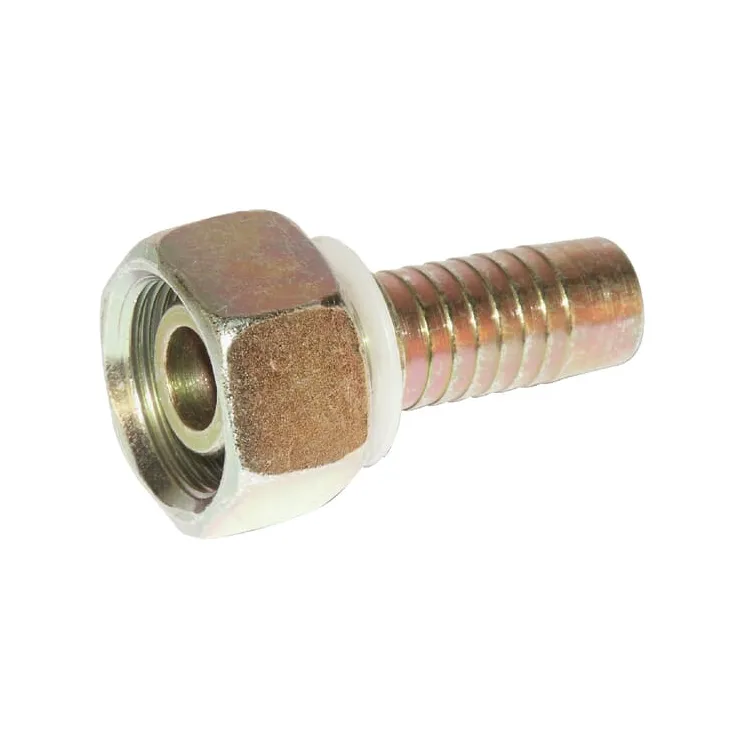

Insert DN08-M14x1.5-8L PGL814 PGL814DB

Name: Insert DN08-M14x1.5-8L PGL814 PGL814DB
Brand: Alfagomma
SKU: PGL814
Price: 4.04 EUR
Availability: InStock

Payment options

€4.04

Tax included

4-5 Working days

Insert DN08-M14x1.5-8L PGL814 Alfagomma PGL814DB

IN WAREHOUSE

ID: 89447

Description

Part number	PGL814
EAN
Unit	Each
Product details	Cone, metal on metal seal Cutting ring adaptors L series 24° cone Adaptors with 60° cone Do not use for 4-layer hose HDR (4SP)
Long description	Application range: Cutting ring adapter series L, 24° cone Adapter with 60° cone Properties: Cone, metal on metal seal Technical information: Do not use for HDR hoses with 4 inserts (4SP)
Surface treatment	Zinc-plated White passivated
Cone angle	60 °
Connection 2, diameter	8 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
LConnection no 1 center to end distance	51 mm
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread diameter	M14
Connection no 1 type code	DKM
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
HConnection no 1 wrench size	17.0 mm
Material	Steel
Series	8L
Shape	Straight - 2 connection sides
