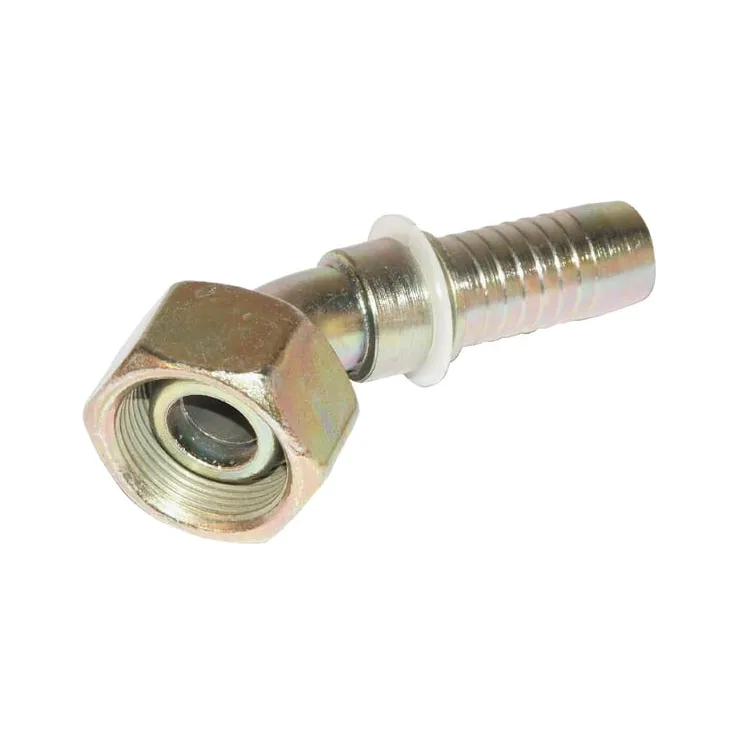

Insert DN16-M26x1,5-18L-45° PGL162645

Name: Insert DN16-M26x1,5-18L-45° PGL162645
Brand: Alfagomma
SKU: PGL162645
Price: 10.1 EUR
Availability: InStock

Payment options

€10.10

Tax included

4-5 Working days

Insert DN16-M26x1,5-18L-45° PGL162645 Alfagomma

IN WAREHOUSE

ID: 89449

Description

Part number	PGL162645
EAN
Unit	Each
Product details	Cone, metal on metal seal Cutting ring adaptors L series 24° cone Adaptors with 60° cone Do not use for 4-layer hose ABT (4SP)
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKM
Connection no 1 length	62 mm
Connection no 1 thread diameter	M26
Connection no 1 thread pitch	1.50 mm
HConnection no 1 wrench size	32.0 mm
LConnection no 1 center to end distance	96 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	5/8 Inch
Connection 2, diameter	16 mm
DConnection 2, centre to end distance	26 mm
CConnection centre to insert distance	62 mm
Angle	45 °
Cone angle	60 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	18L
