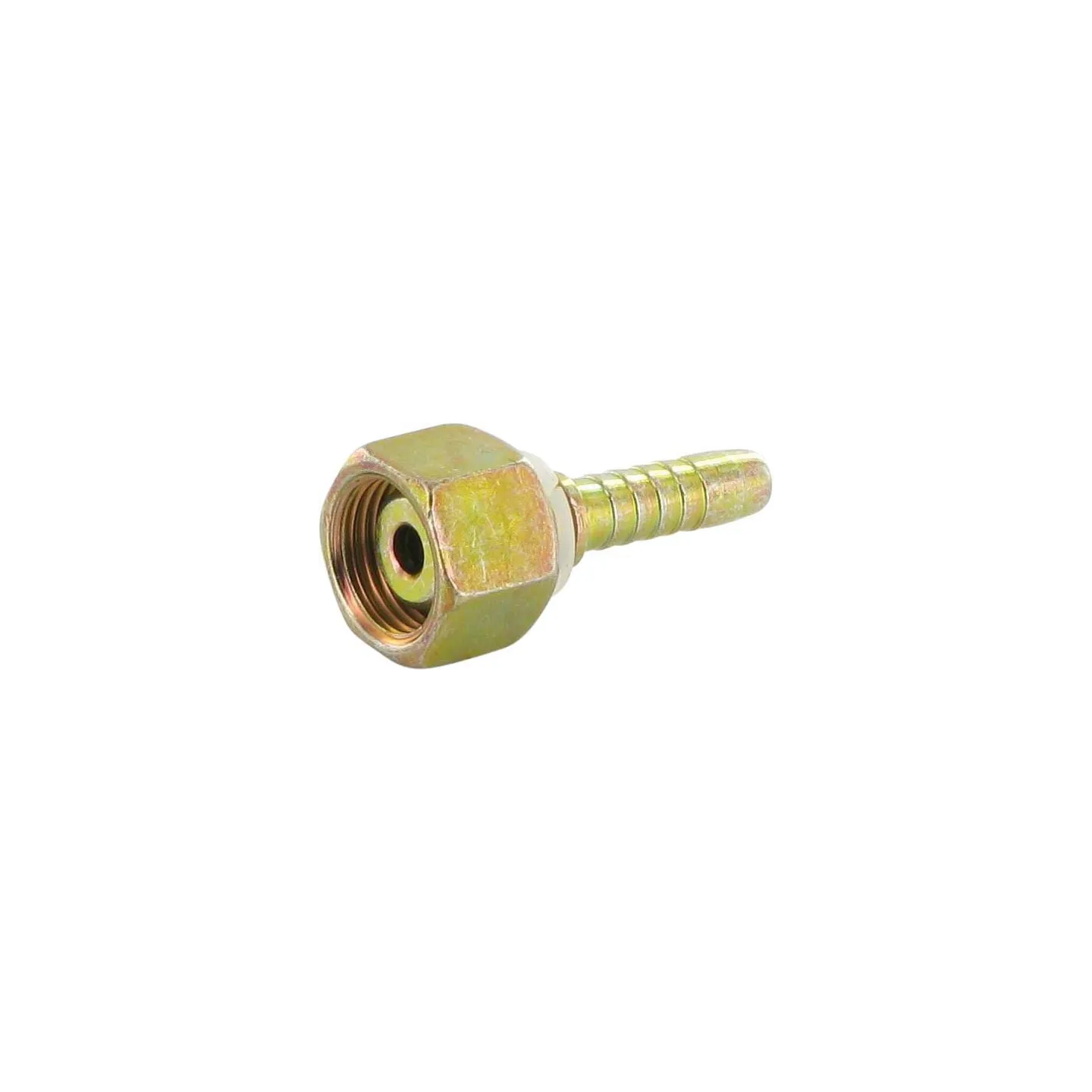

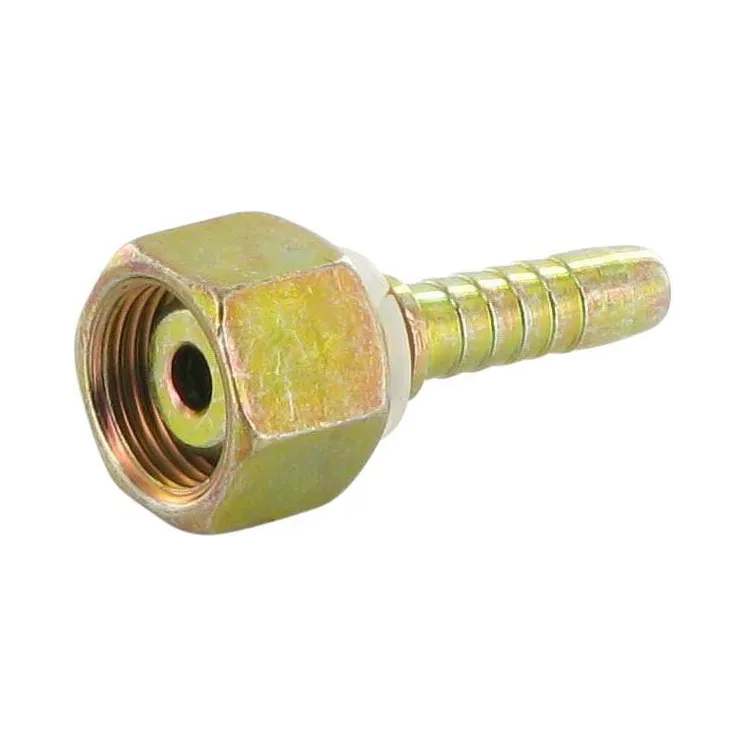

Insert DN08-M18x1.5-12L PGL818 DKM818 PGL818DB

Name: Insert DN08-M18x1.5-12L PGL818 DKM818 PGL818DB
Brand: Alfagomma
SKU: PGL818
Price: 2.4 EUR
Availability: InStock

Payment options

€2.40

Tax included

4-5 Working days

Insert DN08-M18x1.5-12L PGL818 Alfagomma DKM818 PGL818DB

IN WAREHOUSE

ID: 89460

Description

Part number	PGL818
EAN
Unit	Each
Product details	Cone, metal on metal seal Cutting ring adaptors L series 24° cone Adaptors with 60° cone Do not use for 4-layer hose HDR (4SP)
Long description	Application range: Cutting ring adapter series L, 24° cone Adapter with 60° cone Properties: Cone, metal on metal seal Technical information: Do not use for HDR hoses with 4 inserts (4SP)
Surface treatment	Zinc-plated White passivated
Cone angle	60 °
Connection 2, diameter	8 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
LConnection no 1 center to end distance	48 mm
Connection no 1 length	21 mm
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread diameter	M18
Connection no 1 type code	DKM
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
HConnection no 1 wrench size	22.0 mm
Material	Steel
Series	12L
Shape	Straight - 2 connection sides
