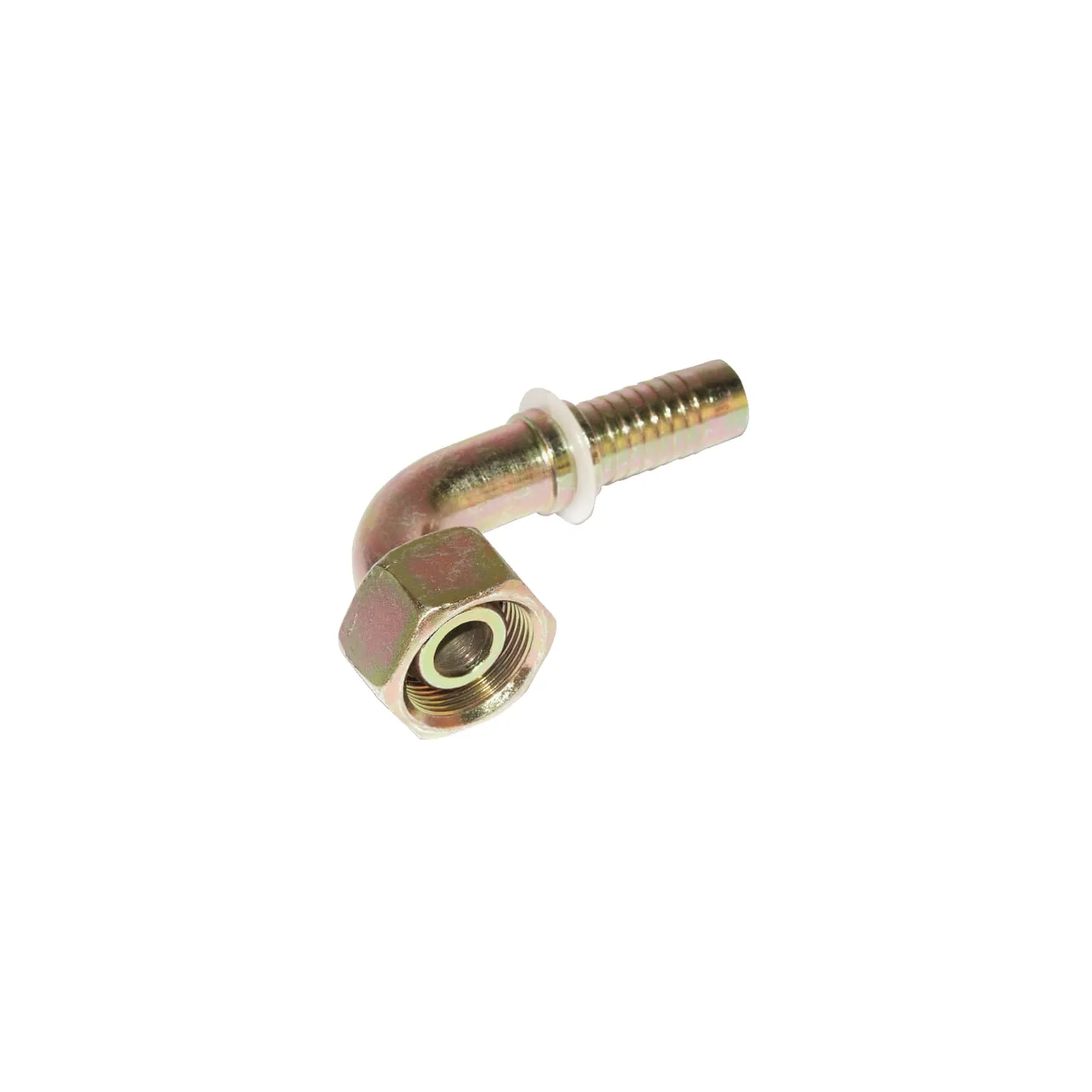

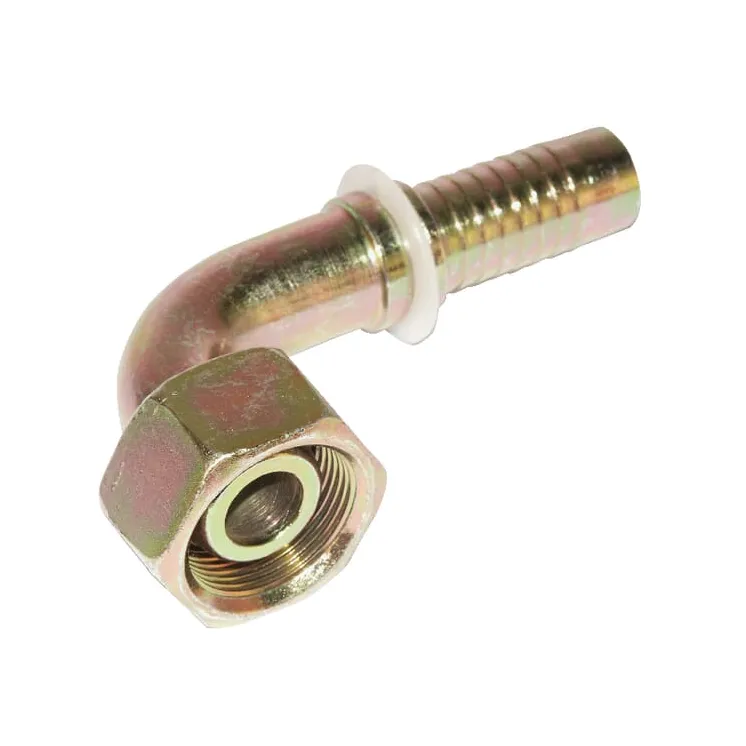

Insert DN06-M12x1,5-6L-90° PGL61290 Alfagomma DKM61290 PGL61290DB

Insert DN06-M12x1,5-6L-90° PGL61290 DKM61290 PGL61290DB

Name: Insert DN06-M12x1,5-6L-90° PGL61290 DKM61290 PGL61290DB
Brand: Alfagomma
SKU: PGL61290
Price: 7.54 EUR
Availability: InStock

Payment options

€7.54

Tax included

4-5 Working days

Insert DN06-M12x1,5-6L-90° PGL61290 Alfagomma DKM61290 PGL61290DB

IN WAREHOUSE

ID: 89477

Description

Part number	PGL61290
EAN
Unit	Each
Product details	Cone, metal on metal seal Cutting ring adaptors L series 24° cone Adaptors with 60° cone Do not use for 4-layer hose HDR (4SP)
Long description	Application range: Cutting ring adapter series L, 24° cone Adapter with 60° cone Properties: Cone, metal on metal seal Technical information: Do not use for HDR hoses with 4 inserts (4SP)
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKM
Connection no 1 length	26 mm
Connection no 1 thread diameter	M12
Connection no 1 thread pitch	1.50 mm
HConnection no 1 wrench size	14.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
Angle	90 °
Cone angle	60 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	6L
