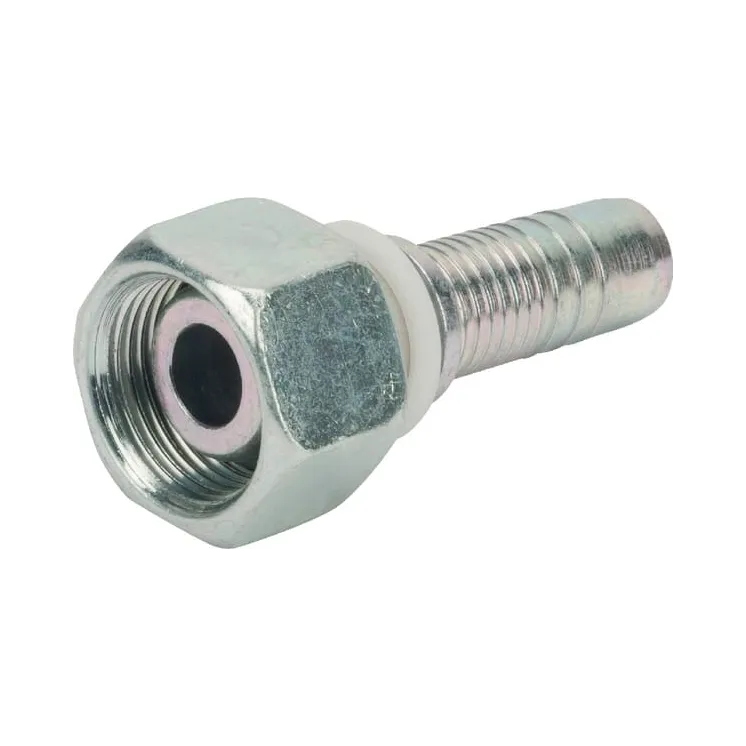

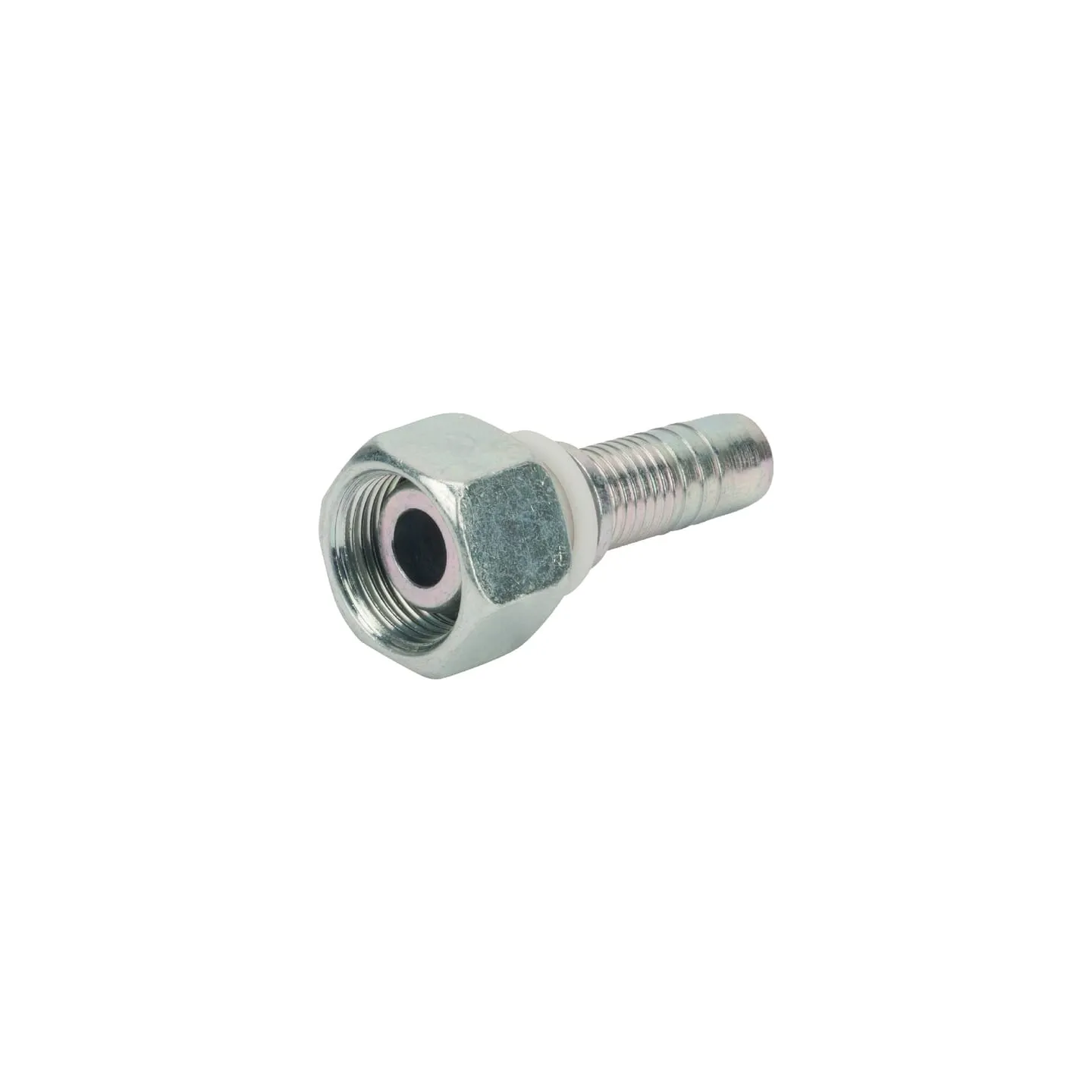

Insert DN13-M22x1.5-15L PGL1322 Alfagomma DKM1322 PGL1322DB
search
  • Insert DN13-M22x1.5-15L PGL1322 Alfagomma DKM1322 PGL1322DB

Insert DN13-M22x1.5-15L PGL1322 DKM1322 PGL1322DB

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€2.35
Tax included
On Request
Insert DN13-M22x1.5-15L PGL1322 Alfagomma DKM1322 PGL1322DB
ON REQUEST

89515

Part number
PGL1322
EAN
Unit
Each
Product details
  • Cone, metal on metal seal
  • Cutting ring adaptors L series 24° cone
  • Adaptors with 60° cone
  • Do not use for 4-layer hose HDR (4SP)
Long description
  • Application range:
  • Cutting ring adapter series L, 24° cone
  • Adapter with 60° cone
  • Properties:
  • Cone, metal on metal seal
  • Technical information:
  • Do not use for HDR hoses with 4 inserts (4SP)
Surface treatment
  • Zinc-plated
  • White passivated
Cone angle
60 °
Connection 2, diameter
1/2 Inch
Connection 2, diameter
12 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
CConnection no 1 center to end distance
54 mm
Connection no 1 length
23 mm
F1Connection no 1 thread pitch
1.50 mm
Connection no 1 thread diameter
M22
Connection no 1 type code
DKM
Connection no 1 type - male/female
Female
Connection no 1 type
Thread
CH1Connection no 1 wrench size
27.0 mm
Material
Steel
Series
15L
Shape
Straight - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    PGL1322
  • Condition
    New
  • CODE
    DKM1322 PGL1322DB
