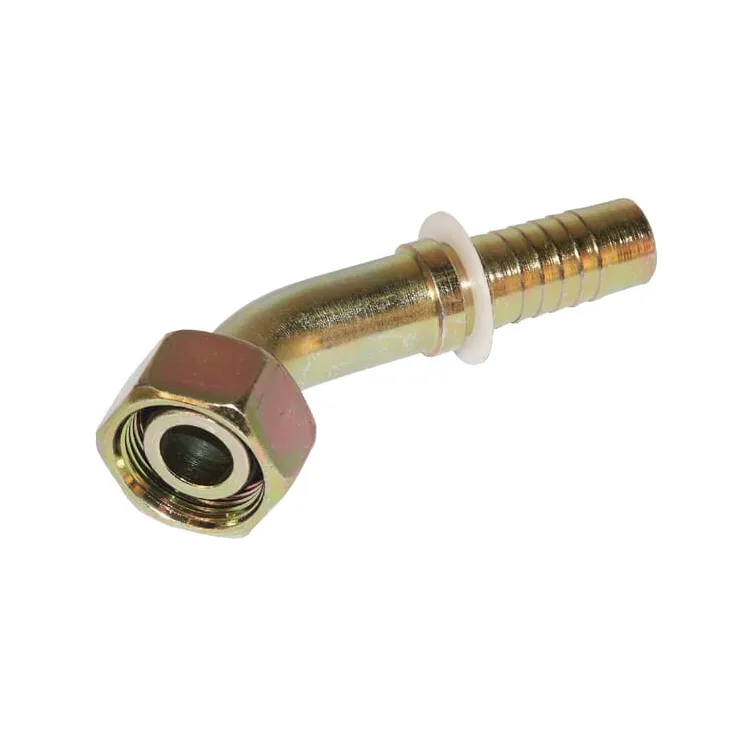

Insert DN06-M12x1.5-6L-45° PGLO61245 PGLO61245DB

Name: Insert DN06-M12x1.5-6L-45° PGLO61245 PGLO61245DB
Brand: Alfagomma
SKU: PGLO61245
Price: 7.66 EUR
Availability: InStock

Payment options

€7.66

Tax included

4-5 Working days

Insert DN06-M12x1.5-6L-45° PGLO61245 Alfagomma PGLO61245DB

IN WAREHOUSE

ID: 89537

Description

Part number	PGLO61245
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKOL
F1Connection no 1 thread diameter	M12
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread type	Metric
CH1Connection no 1 wrench size	14.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
DConnection 2, centre to end distance	15 mm
CConnection centre to insert distance	40 mm
Angle	45 °
Cone angle	60 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	6L
Original number equivalent	H1221541-041200
