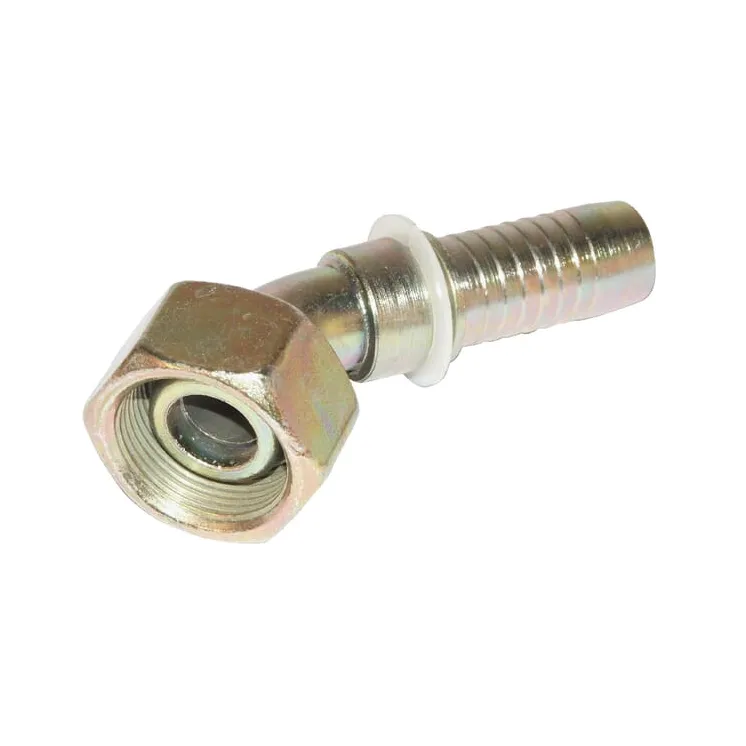

Insert DN08-M16x1,5-10L-45° PGL81645 PGL81645DB

Name: Insert DN08-M16x1,5-10L-45° PGL81645 PGL81645DB
Brand: Alfagomma
SKU: PGL81645
Price: 4.79 EUR
Availability: InStock

Payment options

€4.79

Tax included

4-5 Working days

Insert DN08-M16x1,5-10L-45° PGL81645 Alfagomma PGL81645DB

IN WAREHOUSE

ID: 89538

Description

Part number	PGL81645
EAN
Unit	Each
Product details	Cone, metal on metal seal Cutting ring adaptors L series 24° cone Adaptors with 60° cone Do not use for 4-layer hose ABT (4SP)
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKM
Connection no 1 length	38 mm
Connection no 1 thread diameter	M16
Connection no 1 thread pitch	1.50 mm
HConnection no 1 wrench size	19.0 mm
LConnection no 1 center to end distance	65 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	5/16 Inch
Connection 2, diameter	8 mm
DConnection 2, centre to end distance	18 mm
CConnection centre to insert distance	38 mm
Angle	45 °
Cone angle	60 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	10L
