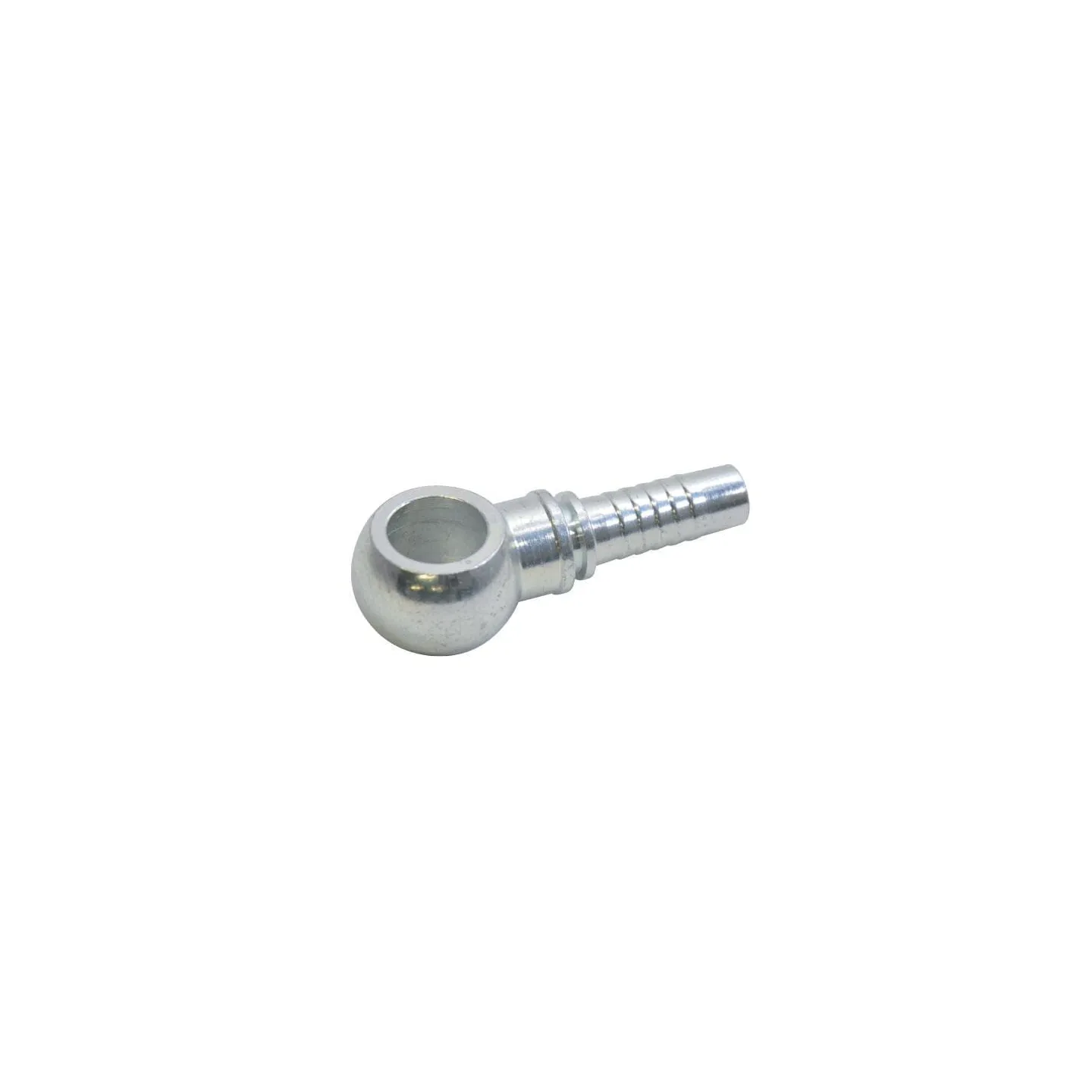

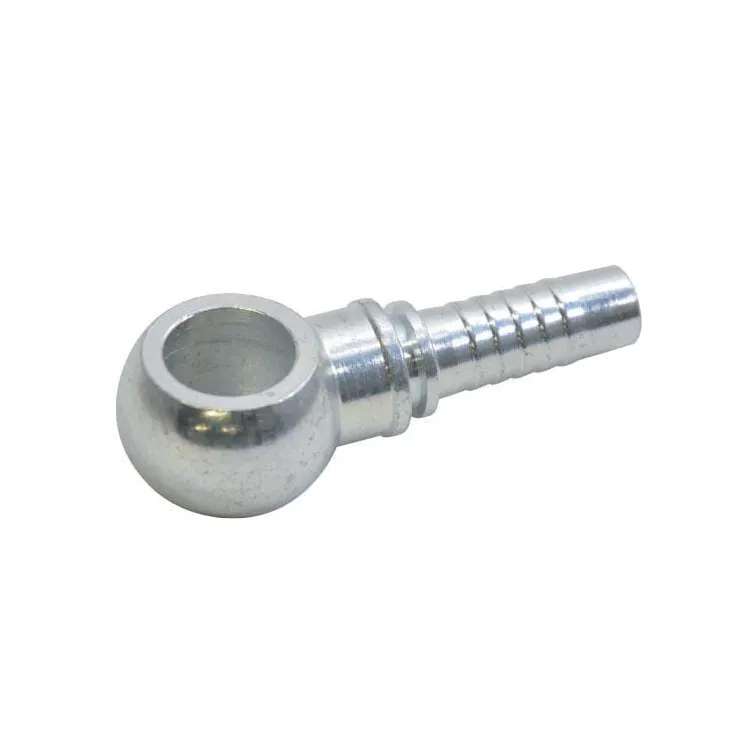

Insert Banjo DN06-14 PQM614 VFR3016

Name: Insert Banjo DN06-14 PQM614 VFR3016
Brand: Alfagomma
SKU: PQM614
Price: 3.18 EUR
Availability: InStock

Payment options

€3.18

Tax included

4-5 Working days

Insert Banjo DN06-14 PQM614 Alfagomma VFR3016

IN WAREHOUSE

ID: 89656

Description

Part number	PQM614
EAN	8716106786800
Unit	Each
Product details	Compact installation height Seal with bonded seals or copper rings Do not use for 4-layer hose HDR (4SP)
Long description	Properties: Compact installation height Technical information: Seal with USIT rings or copper rings Available in stainless steel on request Do not use for HDR hoses with 4 inserts (4SP)
Surface treatment	Zinc-plated White passivated
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	27.5 mm
F1Connection no 1 diameter	14 mm
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread diameter	M14
Connection no 1 type code	RNM
Connection no 1 type - male/female	Female
Connection no 1 type	Banjo
HHeight	14 mm
Material	Steel
Shape	Straight - 2 connection sides
