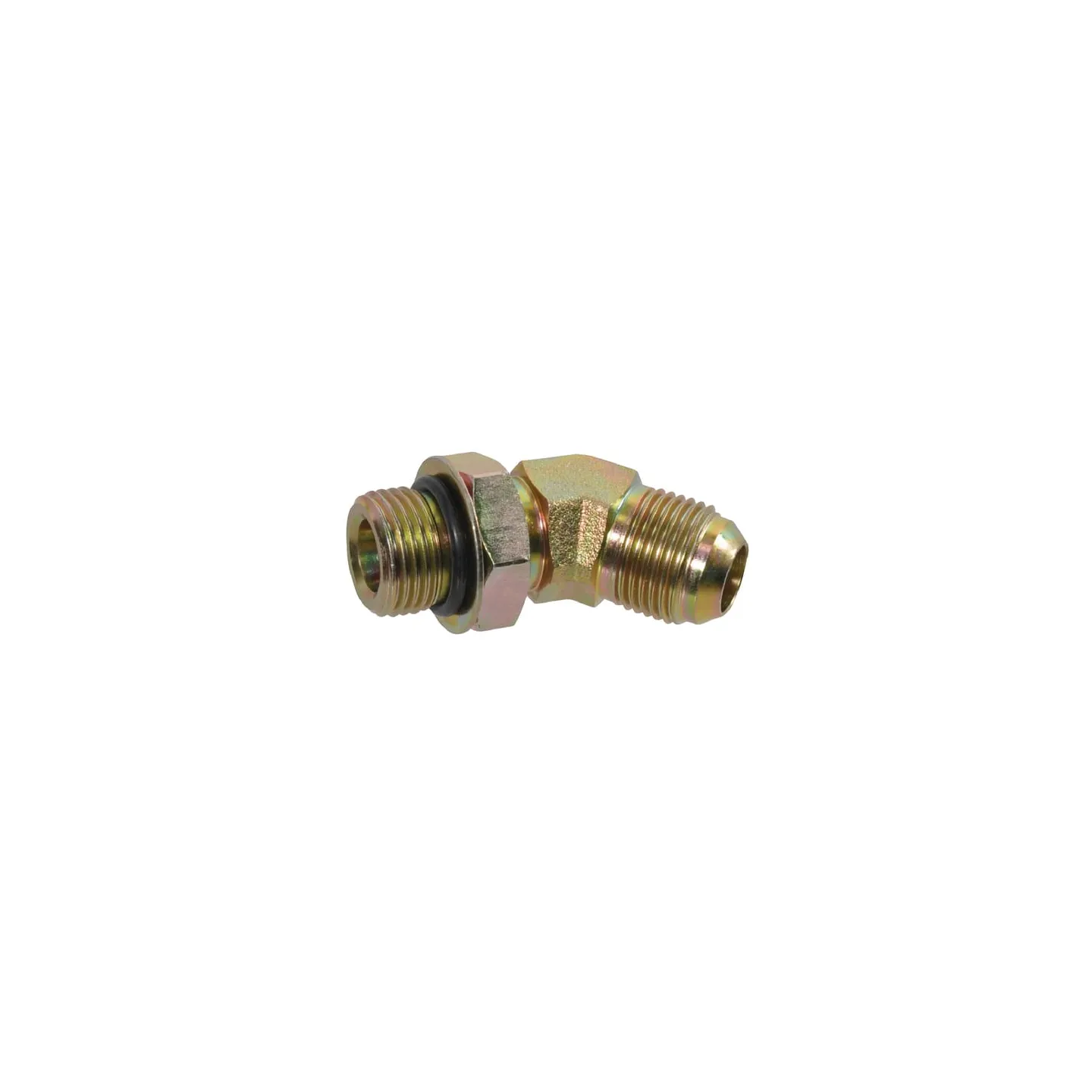

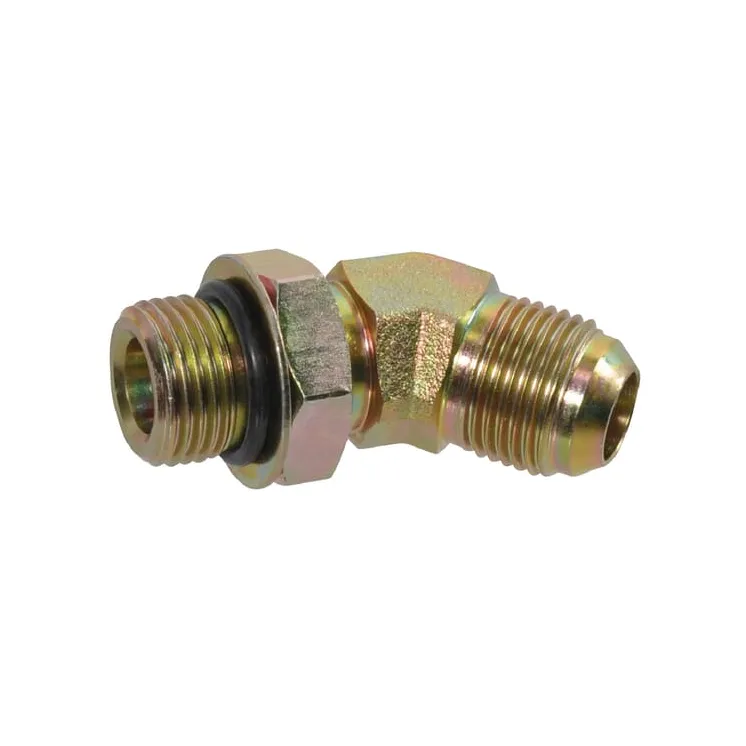

Elbow M/M 7/8 JIC x 7/8 UNF RIU4514 Alfagomma
search
  • Elbow M/M 7/8 JIC x 7/8 UNF RIU4514 Alfagomma

Elbow M/M 7/8 JIC x 7/8 UNF RIU4514

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€11.11
Tax included
On Request
Elbow M/M 7/8 JIC x 7/8 UNF RIU4514 Alfagomma
ON REQUEST

89767

Part number
RIU4514
EAN
Unit
Each
Product details
  • For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514
  • Connection thread on the 37° cone side is UNF in accordance with ANSI
  • Screw-in couplings
  • Adjustable
  • 45°
Connection 2, centre to end distance
29 mm
Connection 2, thread type
UNF
Connection 2, type
Thread
Connection 2, type - male/female
Male
Connection 2, wrench size
27.0 mm
F1Connection no 1 thread diameter
7/8 Inch
Connection no 1 thread type
JIC
Connection no 1 type - male/female
Male
Connection no 1 type
Thread
Connection no 1 wrench size
22.0 mm
Connections distance
34.5 mm
Max working pressure
240 BAR
Pipe diameter range
14-16 mm
Pipe diameter
5/8 Inch
Shape
Elbow - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    RIU4514
  • Condition
    New
