  • Male stud 9/16 JIC x 1/2 BSP RIB0908WD Alfagomma

Male stud 9/16 JIC x 1/2 BSP RIB0908WD

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€5.26
Tax included
On Request

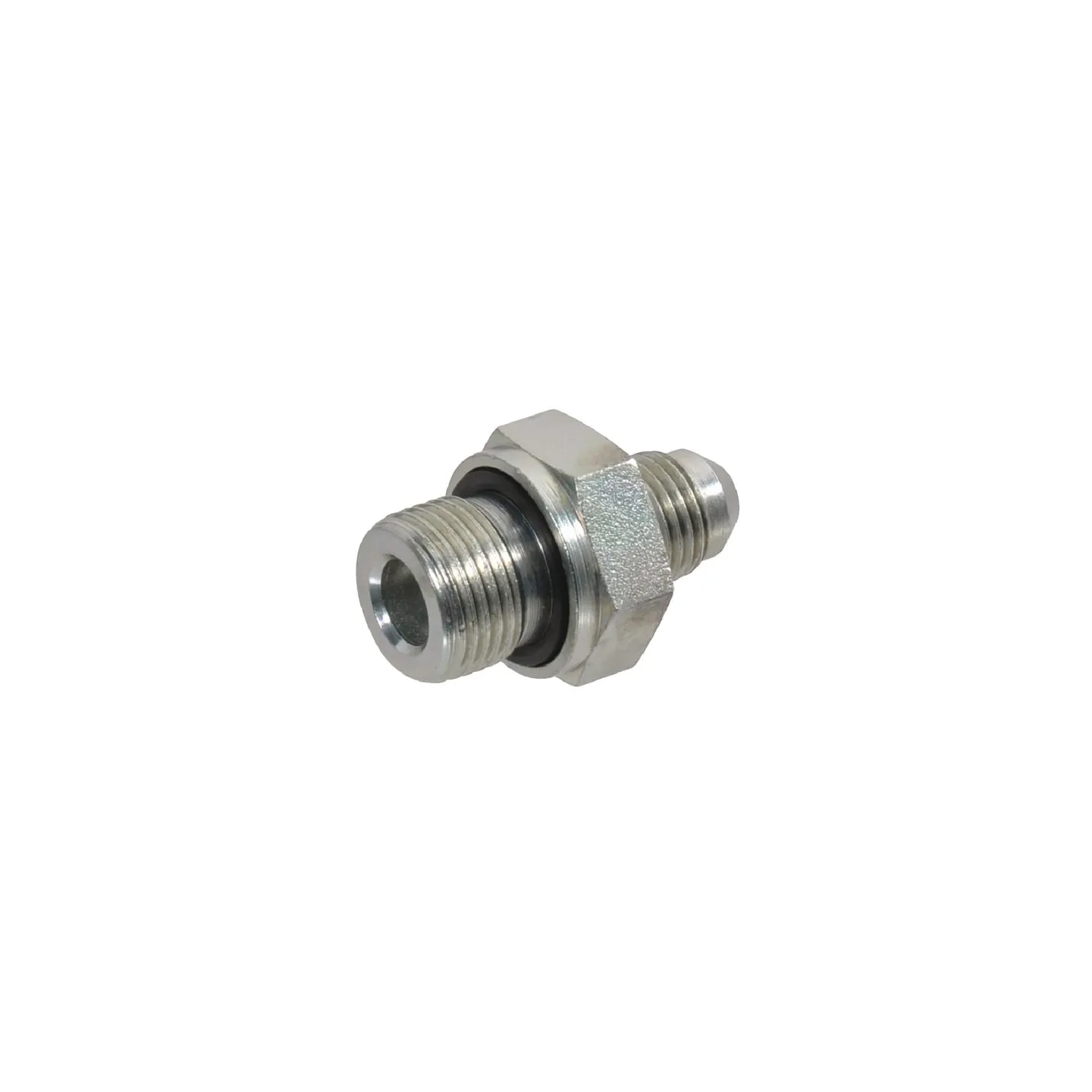

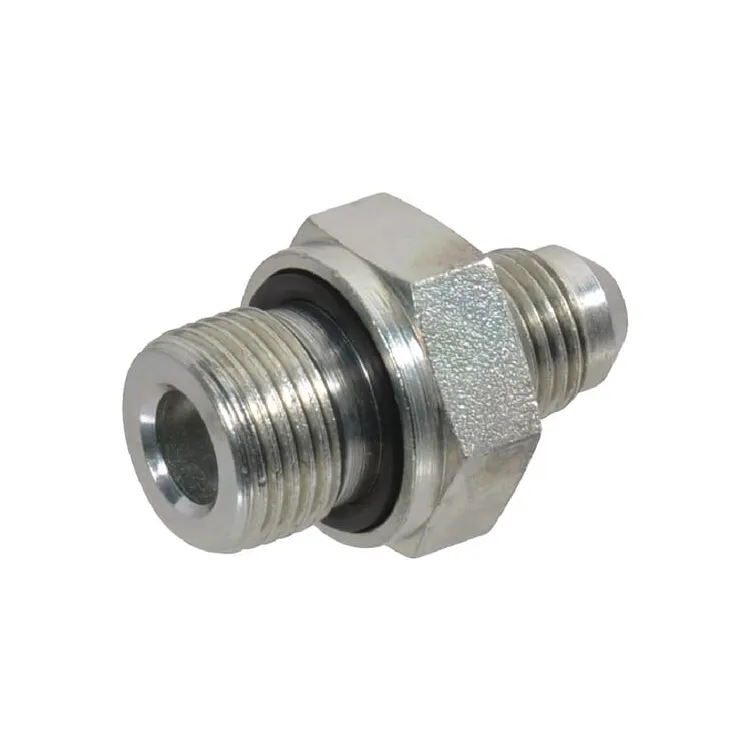

Male stud 9/16 JIC x 1/2 BSP RIB0908WD Alfagomma
ON REQUEST

89774

Part number
RIB0908WD
EAN
Unit
Each
Product details
  • Screw-in coupling
  • Equipped with elastomer seal on BSP
  • BSP side has no taper, so it is not possible to mount a hose connector on it, for example
Connection 2, diameter
1/2 Inch
Connection 2, thread diameter
1/2 Inch
Connection 2, thread length
14 mm
Connection 2, thread type
BSP
Connection 2, threads per inch
14
Connection 2, type
Thread
Connection 2, type - male/female
Male
F1Connection no 1 thread diameter
9/16 Inch
Connection no 1 thread type
JIC
Connection no 1 threads per inch
18
Connection no 1 type - male/female
Male
Connection no 1 type
Thread
CHConnection no 1 wrench size
27.0 mm
Pipe diameter
10 mm
Shape
Straight - 2 connection sides
Total length
36 mm
  • Brand
    Alfagomma
  • Reference
    RIB0908WD
  • Condition
    New
