Reducer JIC/ metric 9/16x M16 RIM0916WD Alfagomma
search
  • Reducer JIC/ metric 9/16x M16 RIM0916WD Alfagomma

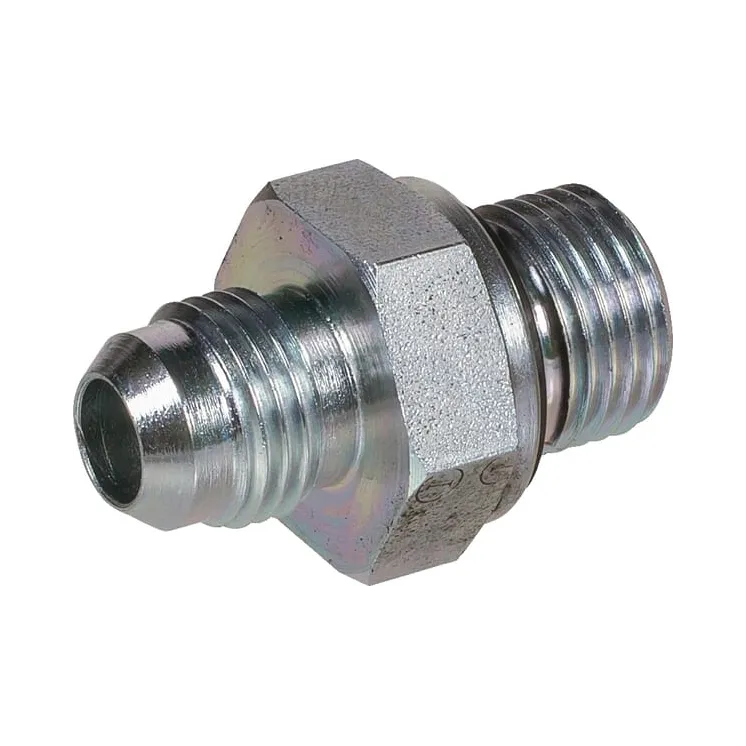

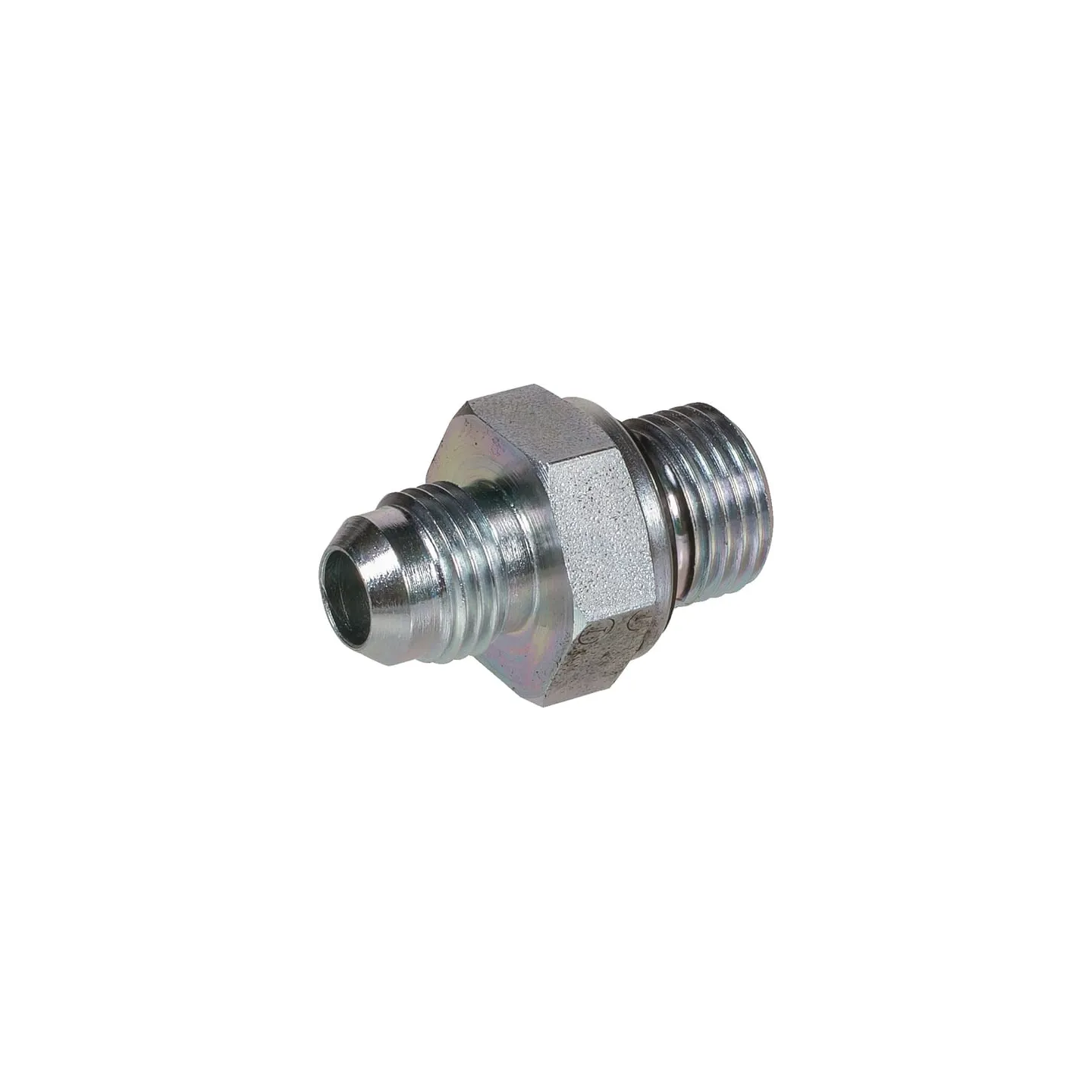

Reducer JIC/ metric 9/16x M16 RIM0916WD

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€6.84
Tax included
4-5 Working days
Reducer JIC/ metric 9/16x M16 RIM0916WD Alfagomma
IN WAREHOUSE

89776

Part number
RIM0916WD
EAN
Unit
Each
Product details
  • Screw-in side metric with WD seal
  • For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514.
  • Connection thread on the 37° cone side is UNF in accordance with ANSI
Cone angle
74 °
Connection 2, length
12 mm
F2Connection 2, thread pitch
1.50 mm
Connection 2, thread diameter
M16
Connection 2, thread type
Metric
Connection 2, type
Thread
F1Connection no 1 thread diameter
9/16 Inch
Connection no 1 thread length
14 mm
Connection no 1 thread type
JIC
Connection no 1 type
Thread
CHConnection no 1 wrench size
22.0 mm
Pipe diameter
10 mm
Pipe diameter
3/8 Inch
Shape
Straight - 2 connection sides
Total length
36.5 mm
  • Brand
    Alfagomma
  • Reference
    RIM0916WD
  • In stock
    5 Items
  • Condition
    New
