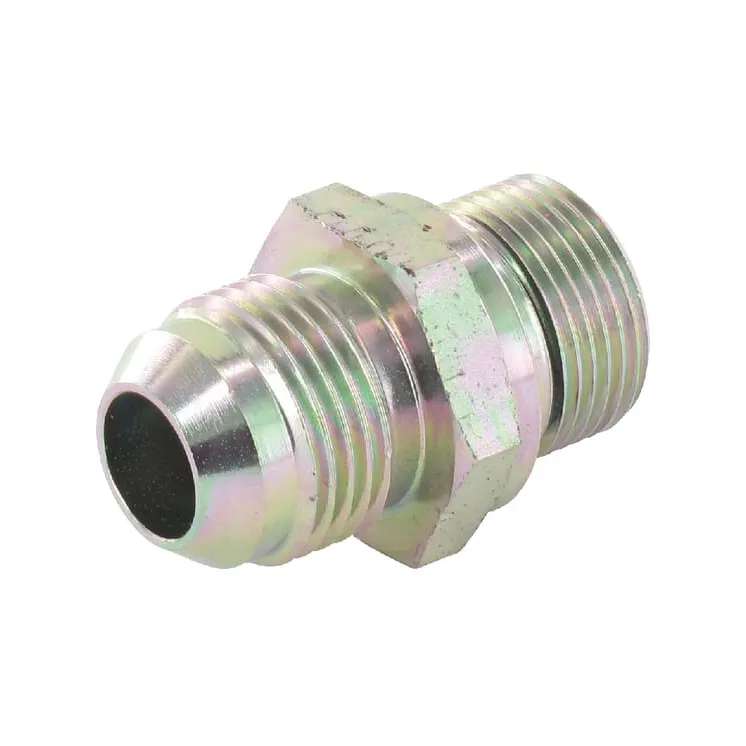

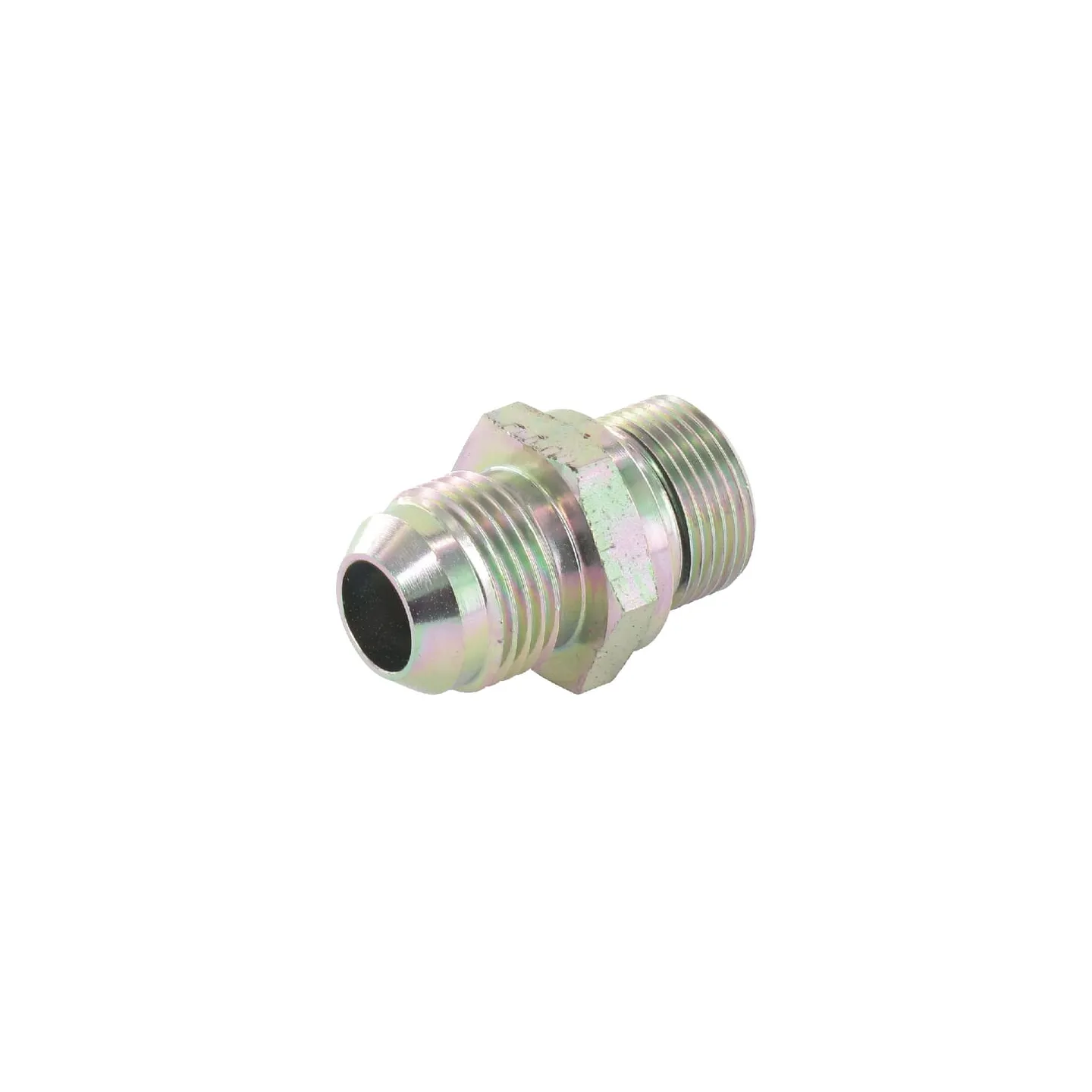

Male stud 7/8 JIC x M22 RIM1422WD Alfagomma
search
  • Male stud 7/8 JIC x M22 RIM1422WD Alfagomma

Male stud 7/8 JIC x M22 RIM1422WD

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€6.23
Tax included
4-5 Working days
Male stud 7/8 JIC x M22 RIM1422WD Alfagomma
IN WAREHOUSE

89780

Part number
RIM1422WD
EAN
Unit
Each
Product details
  • Screw-in side metric with WD seal
  • For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514.
  • Connection thread on the 37° cone side is UNF in accordance with ANSI
Long description
  • Technical information:
  • For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Cone angle
74 °
Connection 2, length
14 mm
F2Connection 2, thread pitch
1.50 mm
Connection 2, thread diameter
M22
Connection 2, thread type
Metric
Connection 2, type
Thread
F1Connection no 1 thread diameter
7/8 Inch
Connection no 1 thread type
JIC
Connection no 1 type
Thread
CHConnection no 1 wrench size
27.0 mm
Pipe diameter range
14-16 mm
Pipe diameter
5/8 Inch
Shape
Straight - 2 connection sides
Total length
43 mm
  • Brand
    Alfagomma
  • Reference
    RIM1422WD
  • In stock
    2 Items
  • Condition
    New
