  • Bulkhead adaptor 9/16 JIC RS09 Alfagomma VNJS09

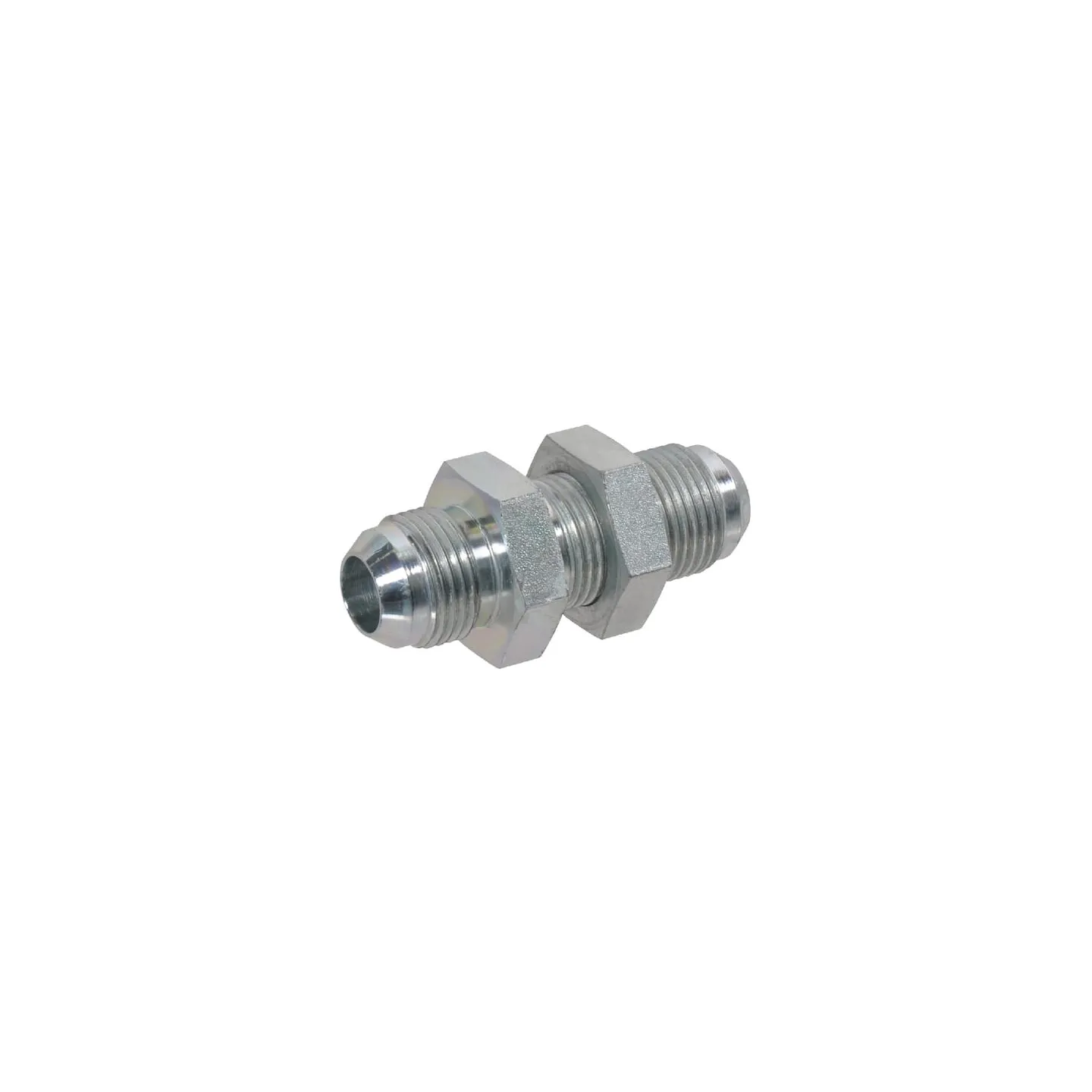

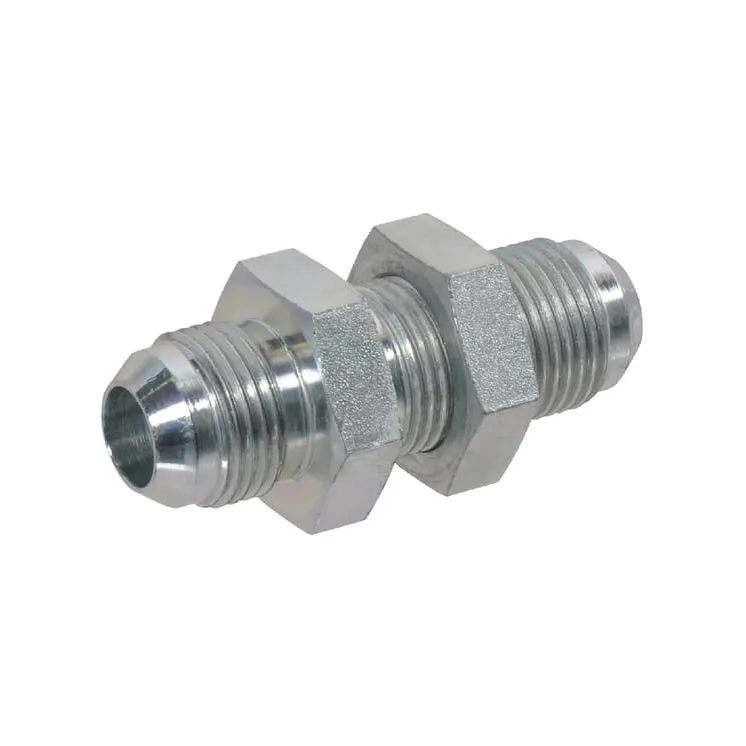

Bulkhead adaptor 9/16 JIC RS09 VNJS09

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€6.49
Tax included
On Request
Bulkhead adaptor 9/16 JIC RS09 Alfagomma VNJS09
ON REQUEST

89786

Part number
RS09
EAN
Unit
Each
Product details
  • For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514
  • Connection thread on the 37° cone side is UNF in accordance with ANSI
  • JIC
Cone angle
74 °
Connection 2, thread diameter
9/16 Inch
Connection 2, thread length
33.5 mm
Connection 2, thread type
JIC
Connection 2, threads per inch
18
Connection 2, type
Thread
Connection 2, type - male/female
Male
Connection no 1 thread diameter
9/16 Inch
Connection no 1 thread type
JIC
Connection no 1 threads per inch
18
Connection no 1 type - male/female
Male
Connection no 1 type
Thread
Length
54 mm
Max working pressure
380 BAR
Pipe diameter
10 mm
Shape
Straight - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    RS09
  • Condition
    New
  • CODE
    VNJS09
