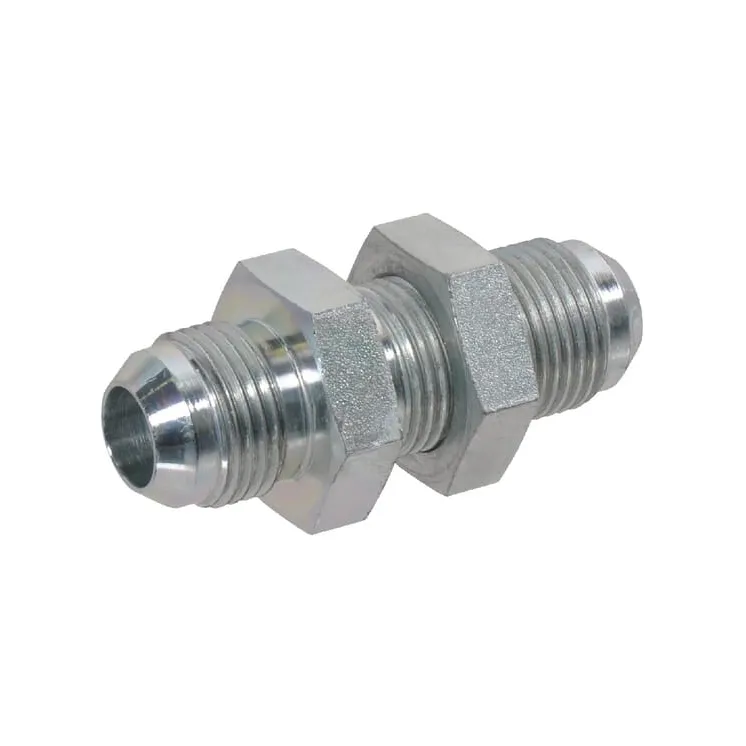

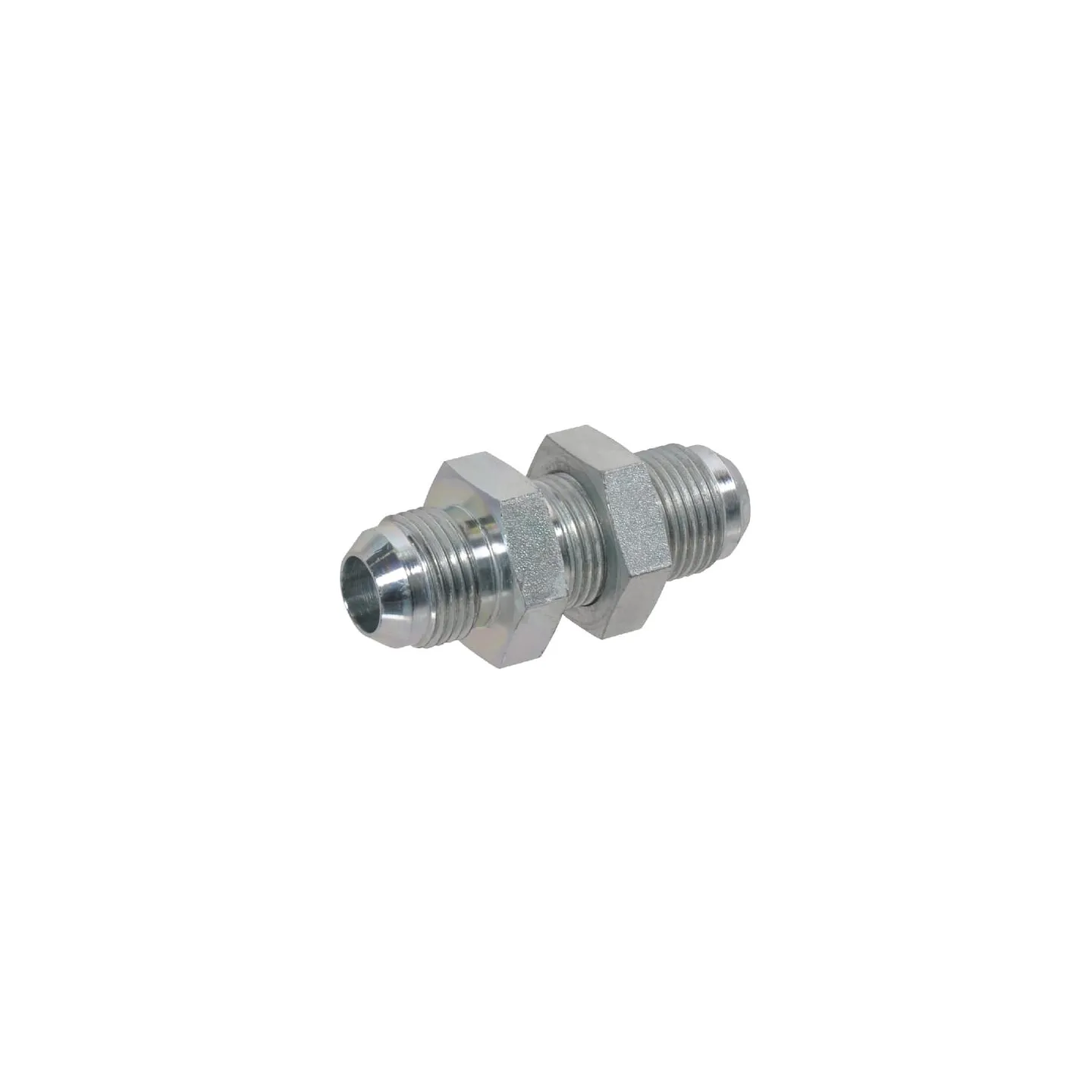

Bulkhead adaptor 7/8 JIC RS14

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€12.25
Tax included
4-5 Working days
Bulkhead adaptor 7/8 JIC RS14 Alfagomma
IN WAREHOUSE

89789

Part number
RS14
EAN
Unit
Each
Product details
  • For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514
  • Connection thread on the 37° cone side is UNF in accordance with ANSI
  • JIC
Cone angle
74 °
Connection 2, thread diameter
7/8 Inch
Connection 2, thread length
41 mm
Connection 2, thread type
JIC
Connection 2, threads per inch
14
Connection 2, type
Thread
Connection 2, type - male/female
Male
Connection no 1 thread diameter
7/8 Inch
Connection no 1 thread type
JIC
Connection no 1 threads per inch
14
Connection no 1 type - male/female
Male
Connection no 1 type
Thread
Length
67.5 mm
Max working pressure
280 BAR
Pipe diameter
16 mm
Shape
Straight - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    RS14
  • In stock
    5 Items
  • Condition
    New
