  • Bulkhead adaptor 3/4 JIC RS12 Alfagomma

Bulkhead adaptor 3/4 JIC RS12

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€8.49
Tax included
4-5 Working days

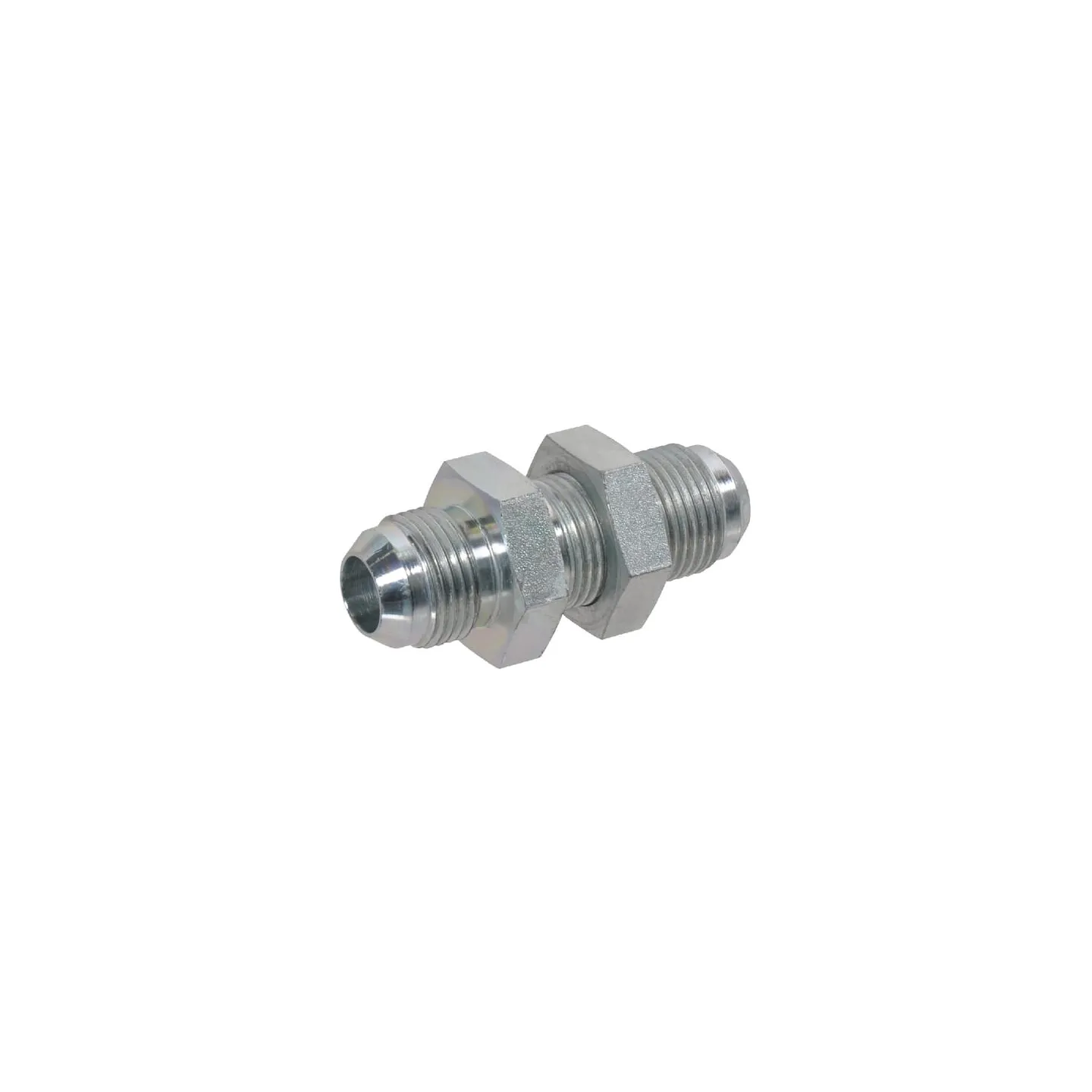

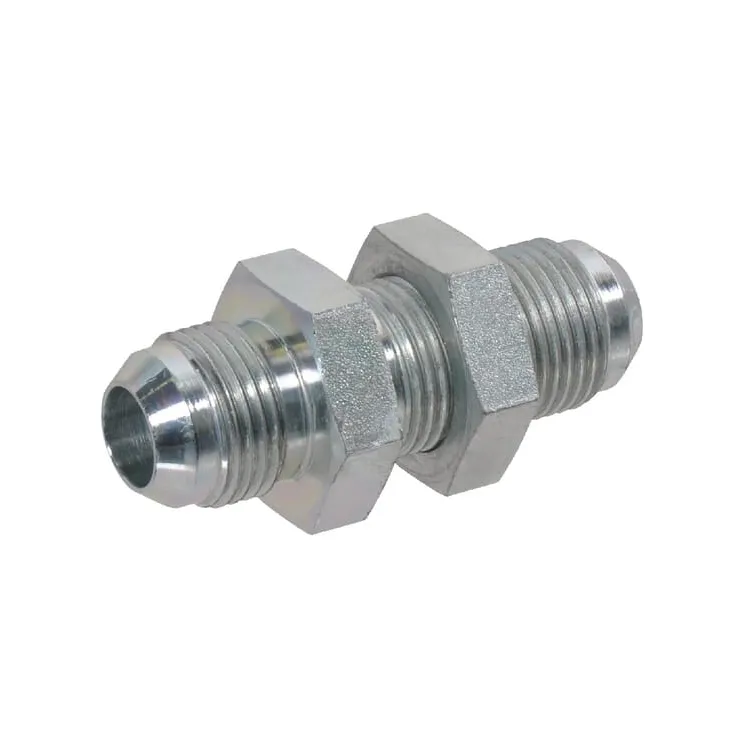

Bulkhead adaptor 3/4 JIC RS12 Alfagomma
IN WAREHOUSE

89790

Part number
RS12
EAN
Unit
Each
Product details
  • For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514
  • Connection thread on the 37° cone side is UNF in accordance with ANSI
  • JIC
Cone angle
74 °
Connection 2, length
37.5 mm
Connection 2, thread diameter
3/4 Inch
Connection 2, thread type
JIC
Connection 2, threads per inch
16
Connection 2, type
Thread
Connection 2, type - male/female
Male
Connection no 1 thread diameter
3/4 Inch
Connection no 1 thread type
JIC
Connection no 1 threads per inch
16
Connection no 1 type - male/female
Male
Connection no 1 type
Thread
Max working pressure
340 BAR
Pipe diameter
12 mm
Pipe diameter
1/2 Inch
Shape
Straight - 2 connection sides
Total length
62 mm
  • Brand
    Alfagomma
  • Reference
    RS12
  • In stock
    5 Items
  • Condition
    New
