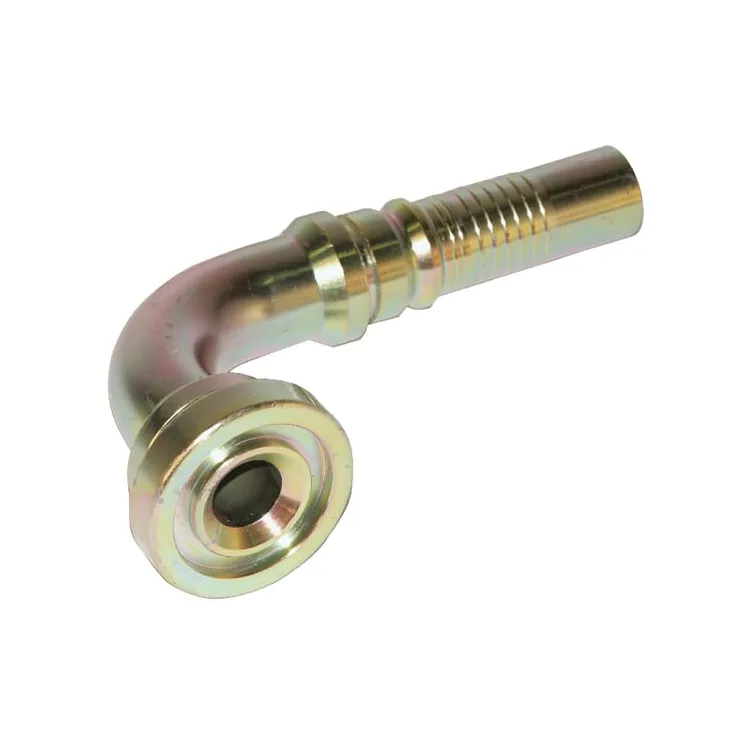

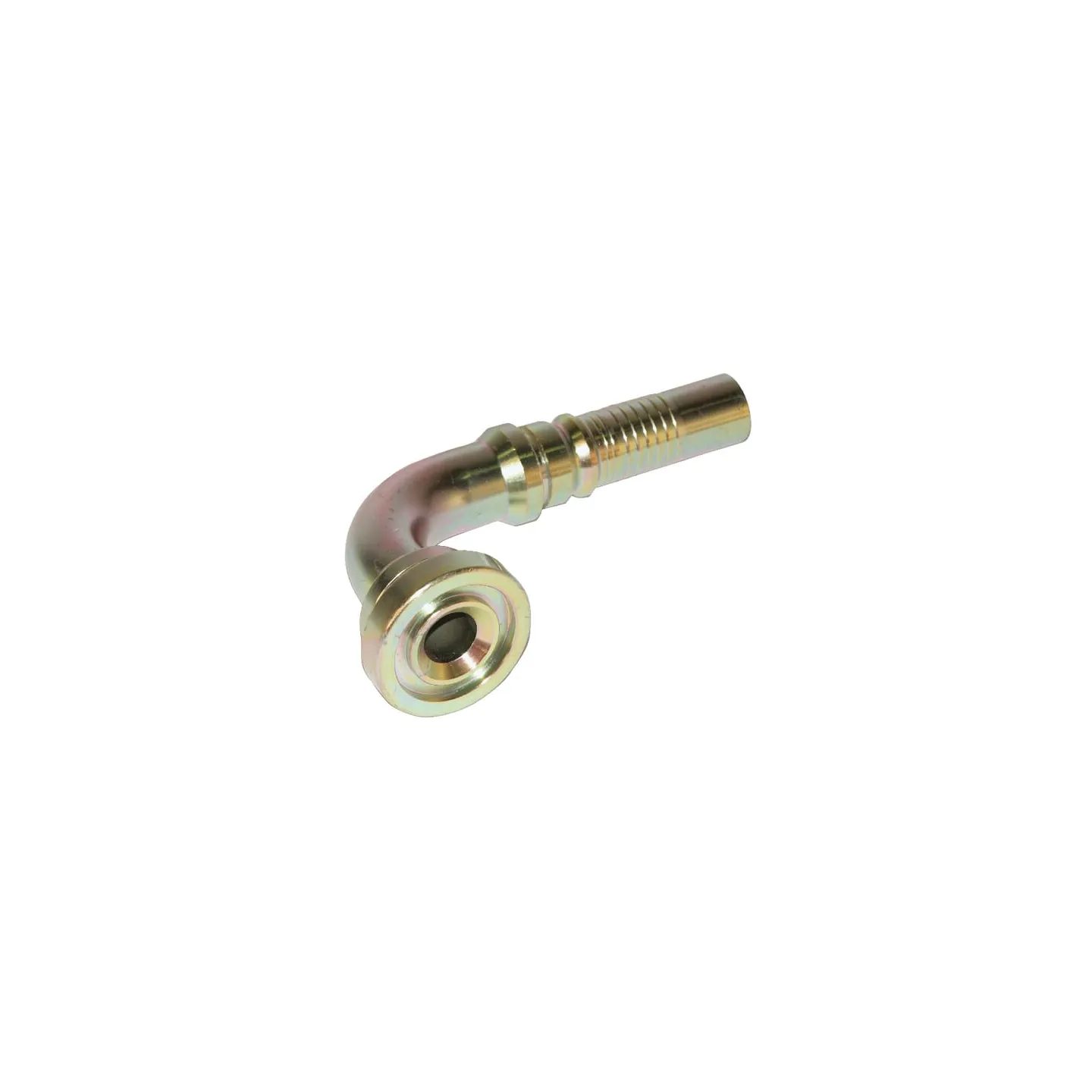

Swage coupling 4SH-DN25 flange 47.6mm 90° SFSCH251690G2

Name: Swage coupling 4SH-DN25 flange 47.6mm 90° SFSCH251690G2
Brand: Alfagomma
SKU: SFSCH251690G2
Price: 41.95 EUR
Availability: InStock

Payment options

€41.95

Tax included

4-5 Working days

Swage coupling 4SH-DN25 flange 47.6mm 90° SFSCH251690G2 Alfagomma

IN WAREHOUSE

ID: 89814

Description

Part number	SFSCH251690G2
EAN
Unit	Each
Pros	Press-fitting with heavy-duty anti-slip protection
Product details	Alfagomma Evolution G2 Anchoring by means of interlock system OVP-ring or O-ring seal Caterpillar machines Series H17 Always consult the most up to date press tables, see downloads at the bottom of each web page
Includes	Insert Without OVP-ring or O-ring
Surface treatment	Zinc-plated White passivated
Angle	90 °
Connection 2, diameter	1 Inch
Connection 2, diameter	25 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 diameter	1 Inch
DConnection no 1 diameter	25 mm
Connection no 1 length	80.4 mm
Connection no 1 type code	CAT
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
Flange outside diameter	47.6 mm
Flange standard pressure series	6000
Material	Steel
Pipe diameter	25 mm
Pipe diameter	1 Inch
Shape	Elbow - 2 connection sides
