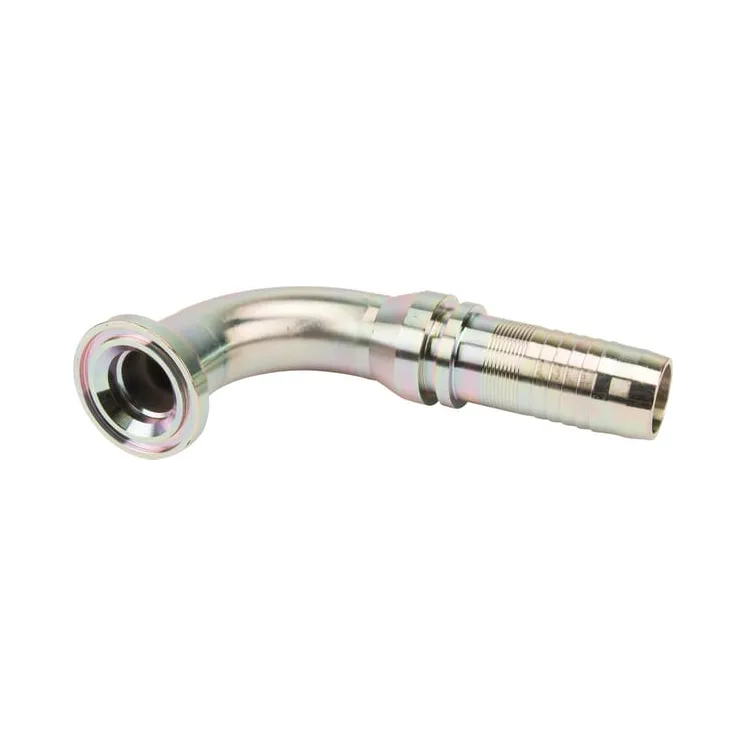

Insert NS-DN40 with flange 60.3 SFLNS402490

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€95.87
Tax included
4-5 Working days
Insert NS-DN40 with flange 60.3 SFLNS402490 Alfagomma
IN WAREHOUSE

89829

Part number
SFLNS402490
EAN
Unit
Each
Long description
Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros
  • Press fittings help ensure faster and easier hose assembly and help to save costs.
  • Processing produces less dirt, smell and waste.
  • No special tool needed to skive the hose.
Product details
  • The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses.
  • With these press fittings, there is no need to skive the inner and outer casing.
Angle
90 °
DConnection 2, centre to end distance
69 mm
Connection 2, diameter
1-1/2 Inch
Connection 2, diameter
40 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
CConnection centre to insert distance
74.7 mm
FDConnection no 1 diameter
60.3 mm
Connection no 1 type - male/female
Male
Connection no 1 type
Flange
Flange standard pressure series
3000
Max working pressure
345 BAR
Original number equivalent
H1343390-242400
Shape
Elbow - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    SFLNS402490
  • In stock
    5 Items
  • Condition
    New
