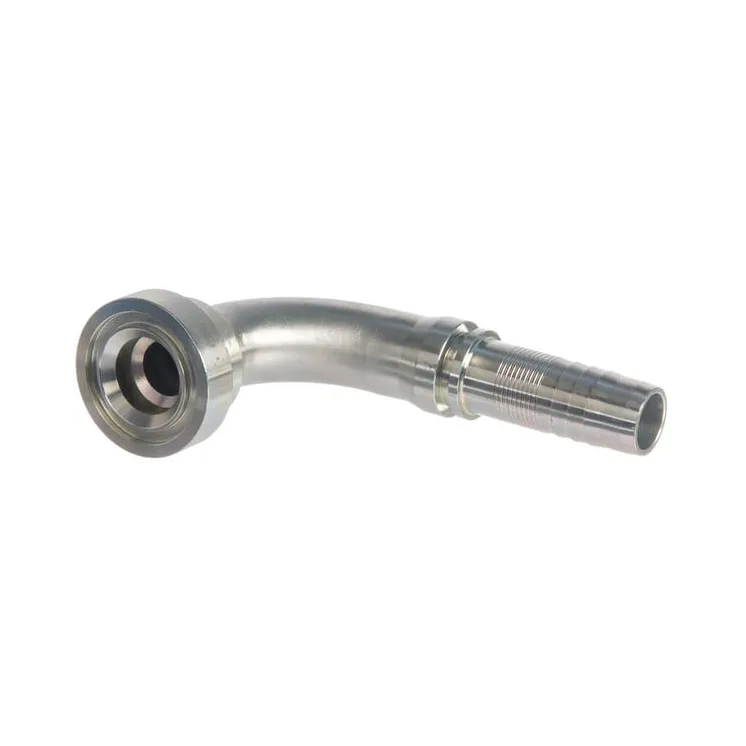

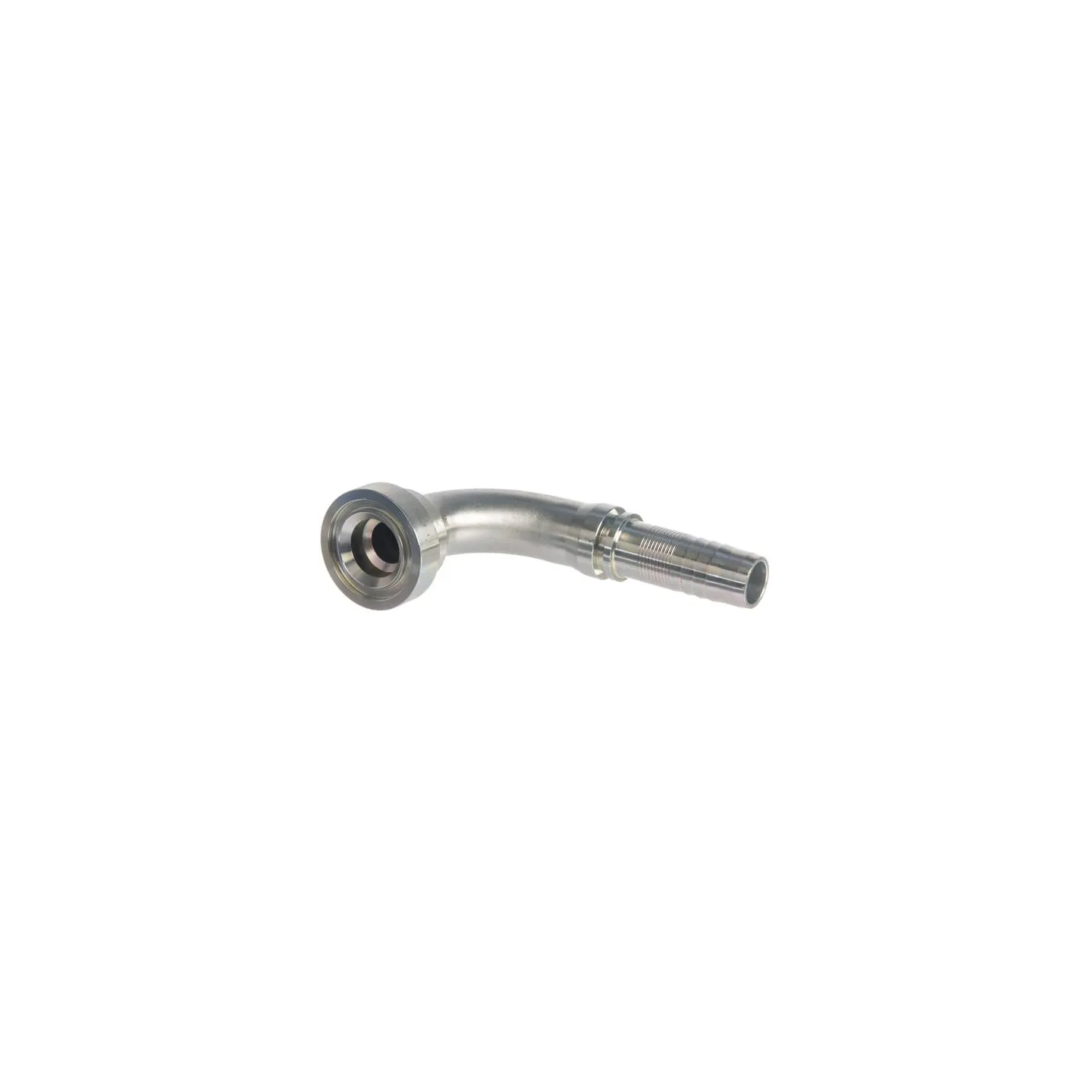

Insert NS DN32-flange 63.5 suitable for CAT SFSCNS322490 Alfagomma
search
  • Insert NS DN32-flange 63.5 suitable for CAT SFSCNS322490 Alfagomma

Insert NS DN32-flange 63.5 suitable for CAT SFSCNS322490

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€128.42
Tax included
On Request
Insert NS DN32-flange 63.5 suitable for CAT SFSCNS322490 Alfagomma
ON REQUEST

89918

Part number
SFSCNS322490
EAN
Unit
Each
Long description
Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros
  • Press fittings help ensure faster and easier hose assembly and help to save costs.
  • Processing produces less dirt, smell and waste.
  • No special tool needed to skive the hose.
Product details
  • The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses.
  • With these press fittings, there is no need to skive the inner and outer casing.
Angle
90 °
Connection 2, diameter
1-1/4 Inch
Connection 2, diameter
32 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
Connection no 1 center to end distance
97 mm
Connection no 1 diameter
1-1/4 Inch
Connection no 1 length
101 mm
Connection no 1 type - male/female
Male
Connection no 1 type
Flange
Flange outside diameter
63.5 mm
Original number equivalent
H1343990-202400
Shape
Elbow - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    SFSCNS322490
  • Condition
    New
